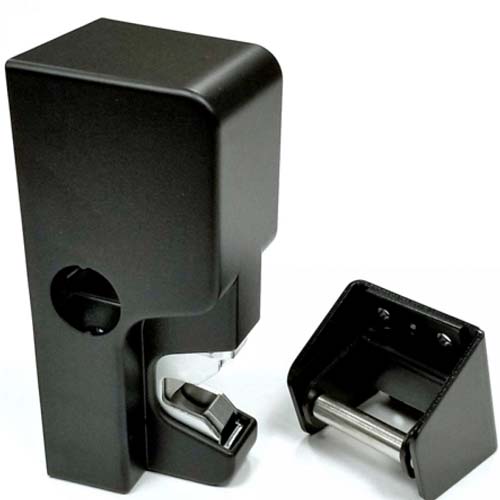

Securitron GL1 - 2000 lbs. Electric Gate Lock
The GL1 Electromechanical Gate Lock is designed to secure a wide variety of vehicle and pedestrian gate applications where security and weather resistance are required. The GL1 functions equally well in both electrically and manually operated gate installations and can be used for swing gates, sliding gates, stock cage gates or other applications.
Product Features
- 2000 lbs. holding force
- Operates under pre-load up to 100 lbs.
- Automatic dual voltage - no field adjustment required
- Fail Secure convertible to Fail Safe
- Manual key override (right or left hand)
- Self-aligning receiver (+/- 1/2" horizontally) helps compensate for gate misalignment and sag
- Tamper proof cast aluminum housing
- Latch status monitor switch (SPDT)
- Heavy wall 1/2" inside diameter threaded steel coupling
- Hardened steel latch
- Surface Mount
- Black krinkle powder coated finish
Specification Data
Holding Force: 2000 lbs. [907 kg]
Current Draw and Voltage:
12 Volts Initial (Peak): (~1.0 sec.) at 870mA - Reduced: 290mA
Power Consumption: 3.5 Watts
24 Volts Initial (Peak): (~1.0 sec.) at 720mA - Reduced: 170mA
Power Consumption: 4.1 Watts
Operating Temperature: -58 to +167F [-50 to +75C]
Shipping Weight: 6 lbs.
Warranty: MagnaCare Lifetime Replacement Warranty
| GL1 Models | Fail Secure or Fail Safe or Fail Secure - Monitored - FLM or Fail Safe - Monitored - FSM |
| Brand | Securitron |
| Voltage | 12 VDC, 24 VDC |
