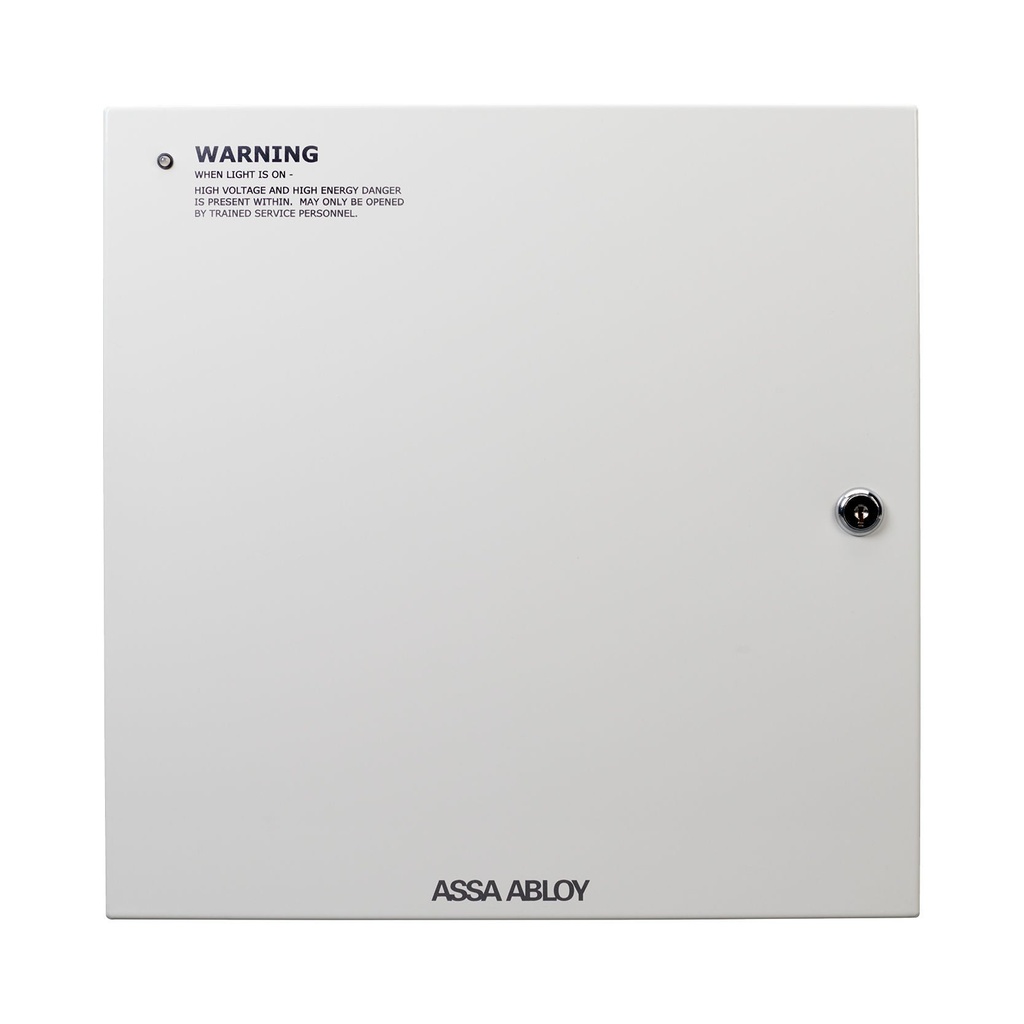

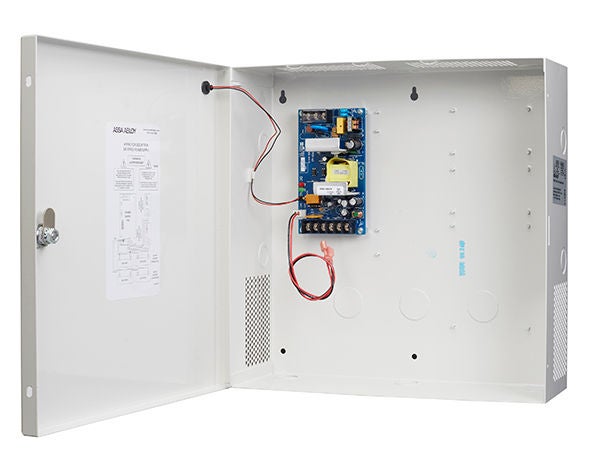

Securitron AQD1 Series Switching Power Supply
The Securitron AQD1 Series is a high-performance, dual-voltage switching power supply designed to provide reliable, supervised power for access control systems. These UL Listed units are engineered for versatility, offering a field-selectable output of either 12VDC or 24VDC. With an efficiency rating of up to 82%, the AQD1 series reduces operating costs and extends the lifespan of sensitive electronic locking hardware.
High-Efficiency Power Management
Equipped with an integrated battery charging circuit, the AQD1 ensures that backup power is always ready without the risk of overvoltage to your locking devices. The unit provides 1 Amp of continuous output, making it an ideal choice for smaller installations or individual door controllers. Whether you need a single relay fire trigger or up to 16 independently controlled outputs, this power supply adapts to your specific site requirements.
Advanced Protection and Durability
Built to withstand demanding environments, the AQD1 Series features comprehensive safety protocols, including thermal shutdown protection with auto-restart and circuit breakers to guard against overcurrent or reverse battery faults. Its robust design allows it to tolerate input voltage fluctuations of ± 15%, ensuring stable performance during brownouts or power surges.
Key Product Features
- Dual Voltage Versatility: Field selectable 12VDC or 24VDC continuous output.
- Superior Efficiency: Up to 82% efficiency for decreased energy consumption and heat dissipation.
- Comprehensive Supervision: UL Listed, supervised units with monitoring options available.
- Rugged Protection: Protects against overcurrent, reverse battery faults, and thermal overloads.
- Flexible Distribution: Available with multiple distribution board combinations for up to 16 outputs.
Technical Specifications
| Feature | Details |
| Output Amperage | 1 Amp Continuous |
| Input Voltage Tolerance | ± 15% of Nominal |
| Operating Temperature | -4°F to 122°F |
| Enclosure Dimensions | 14" H x 14" W x 4-3/4" D |
| Shipping Weight | 12.7 lbs |
| Power Supply Options | No Options or 1R - Fire Trigger / Relay Interface Board |
| Brand | Securitron |
| Amp Options | 1 Amp |
| Voltage | 12 VDC, 24 VDC |
