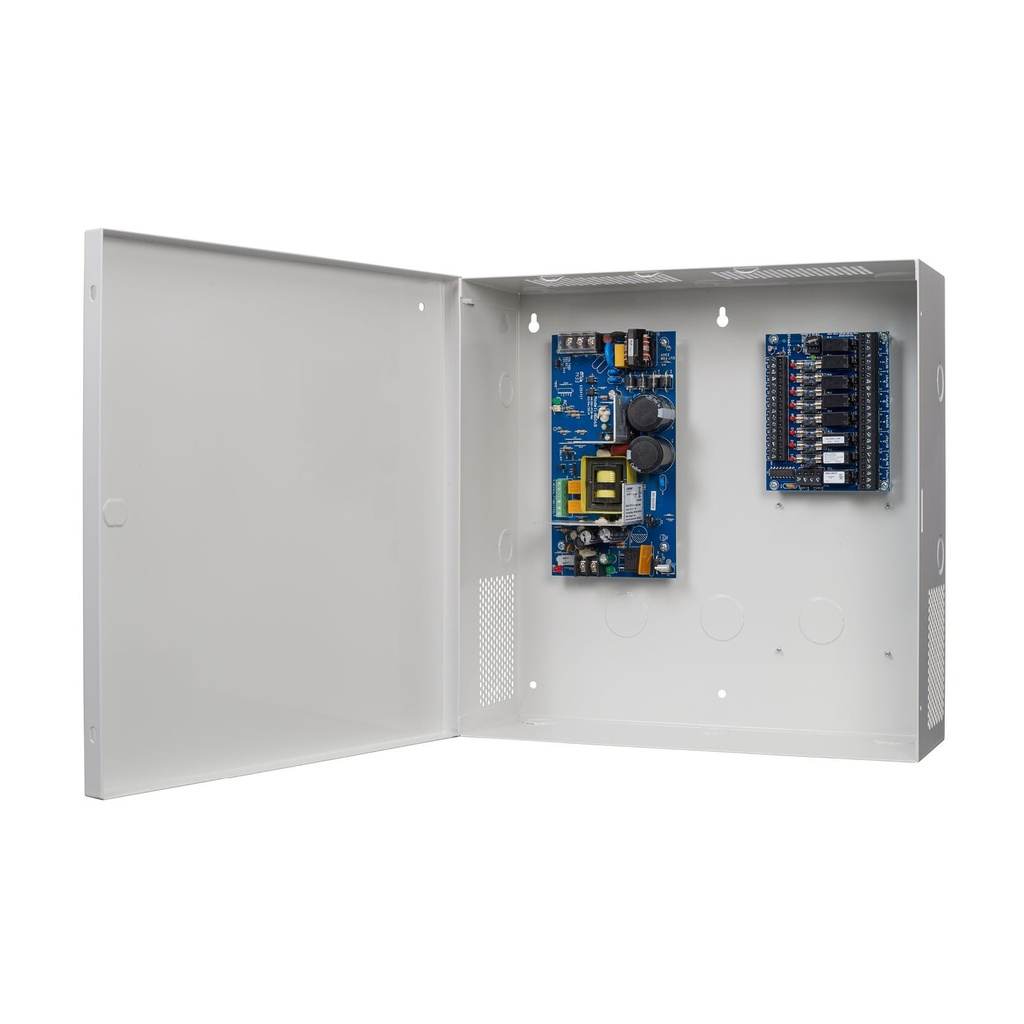

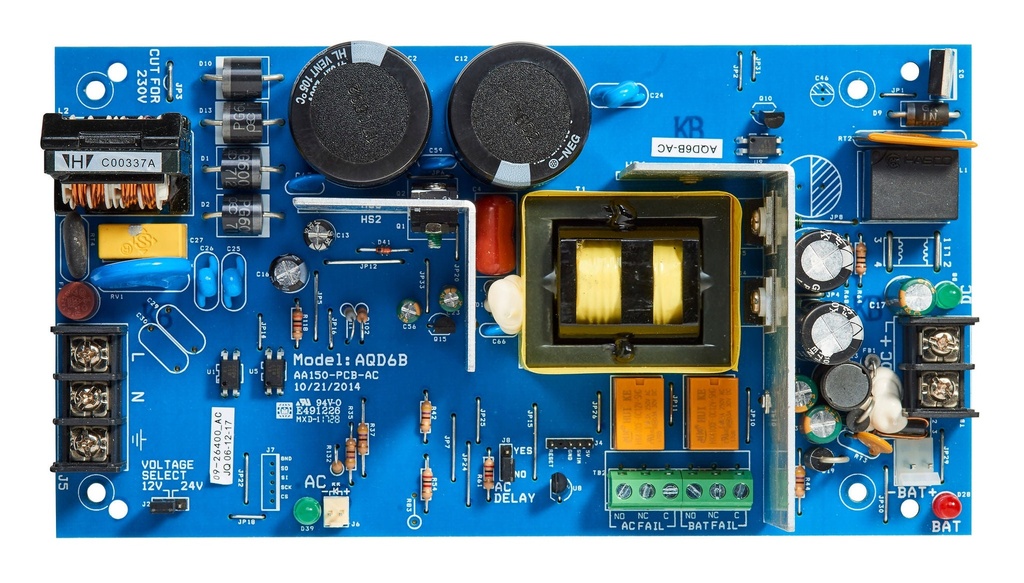

Securitron AQD6 Series Switching Power Supply
The Securitron AQD6 Series is a heavy-duty dual voltage switching power supply engineered for high-demand access control systems. As a UL Listed supervised unit, the AQD6 delivers a powerful 6 Amp continuous output at either 12VDC or 24VDC. This unit is the premier choice for large-scale security deployments requiring stable, clean power for multiple magnetic locks, electric strikes, card readers, and security cameras. Boasting an industry-leading efficiency of up to 91%, the AQD6 significantly lowers energy costs and minimizes heat, protecting the long-term health of your electronic door hardware.
High-Capacity Power & Battery Supervision
Featuring a dedicated battery charging circuit, the AQD6 Series provides superior backup power management without risking overvoltage to your sensitive locking devices. To ensure your system remains operational while protecting equipment, the unit includes a built-in low battery cutoff (9V for 12V settings or 18V for 24V settings). This safeguard prevents the deep discharge of backup batteries, ensuring they are ready for the next power event.
Professional-Grade Reliability & Integration
The Securitron AQD6 is built for resilience, tolerating brownout or overvoltage fluctuations within ± 15% of nominal voltage. Safety is prioritized with thermal shutdown protection (featuring auto-restart) and an integrated circuit breaker that guards against overcurrent and reverse battery faults. Designed for maximum scalability, this field-selectable power supply can be expanded to support up to 16 independently controlled, power-limited outputs, making it the ideal hub for complex commercial security integration.
Key Product Features
- High-Output Performance: Delivers 6 Amps of continuous, filtered power at 12VDC or 24VDC.
- Maximum Efficiency: Up to 91% efficiency rating reduces operational overhead and heat dissipation.
- Advanced Battery Care: Includes a dedicated charging circuit and automated low battery cutoff.
- Fully Supervised & UL Listed: Meets rigorous standards for access control and burglar alarm systems.
- Rugged Protection: Built-in safeguards against short circuits, thermal overloads, and reverse polarity.
- Emergency Integration: Available with single relay fire triggers or individually relayed emergency outputs.
Technical Specifications
| Feature | Specification |
| Power Supply Type | Switching (High Efficiency) |
| Field Selectable Voltage | 12VDC / 24VDC |
| Continuous Output | 6 Amps |
| Peak Efficiency | 91% |
| Operating Temperature | -4°F to 122°F |
| Enclosure Size | 14" H x 14" W x 4-3/4" D |
| Regulatory Approvals | UL 294 (6th Ed), UL 603, ULC-S318 |
| Power Supply Options | No Options or 1R - Fire Trigger / Relay Interface Board or 8F8R2 - 8 Glass Fused Outputs with Relays, Fire Trigger, 2 Amp each or 8C8R2 - 8 PTC Outputs with Relays, Fire Trigger, 2 Amp each or 8C1R2 - 8 PTC Outputs, Fire Trigger/Relay, 2 Amp each |
| Brand | Securitron |
| Amp Options | 6 Amp |
| Voltage | 12 VDC, 24 VDC |
