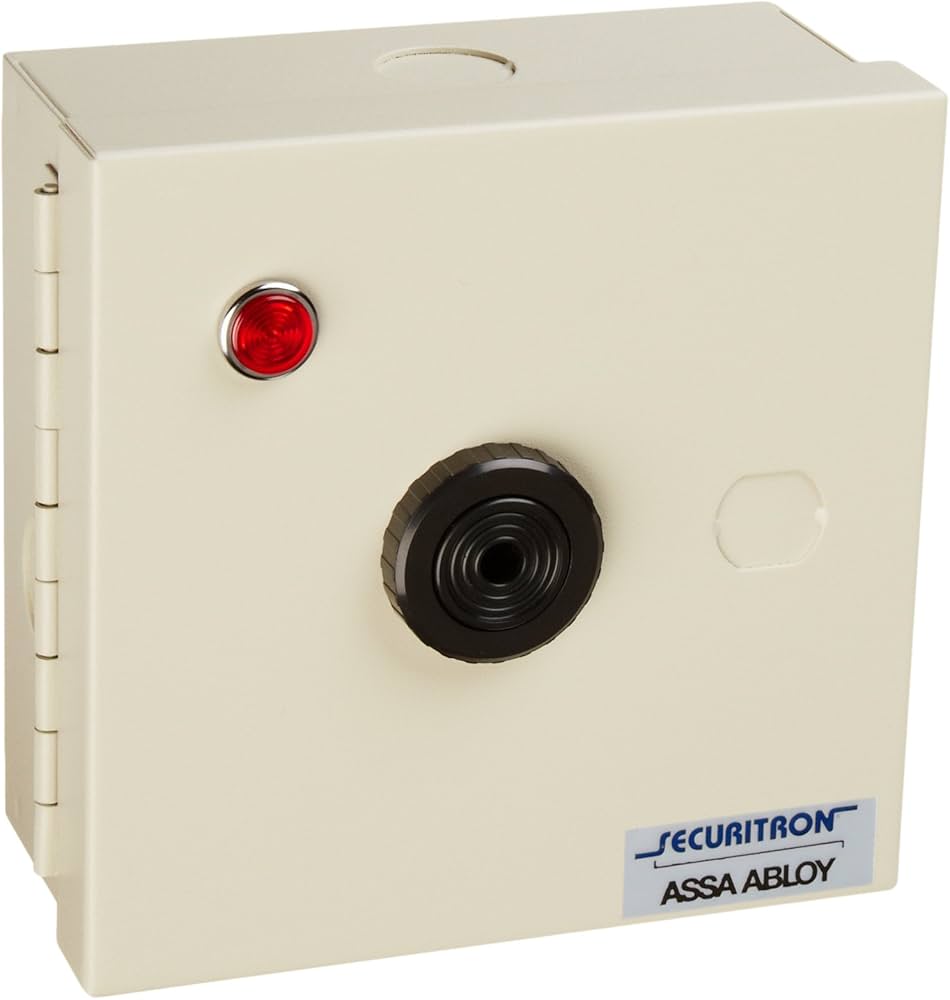

Securitron BA-DPA Door Prop Alarm

The Securitron BA-DPA is a high-performance Door Prop Alarm designed to enhance perimeter security by monitoring door position and state with precision timed logic. Engineered to promote safety and loss prevention, the DPA provides escalating alerts when a door is held, propped, or left unsecure beyond a defined period. This multi-functional unit is an essential component for ancillary exits in healthcare, commercial, and retail facilities, ensuring that fire-rated and high-traffic openings remain closed and secure.

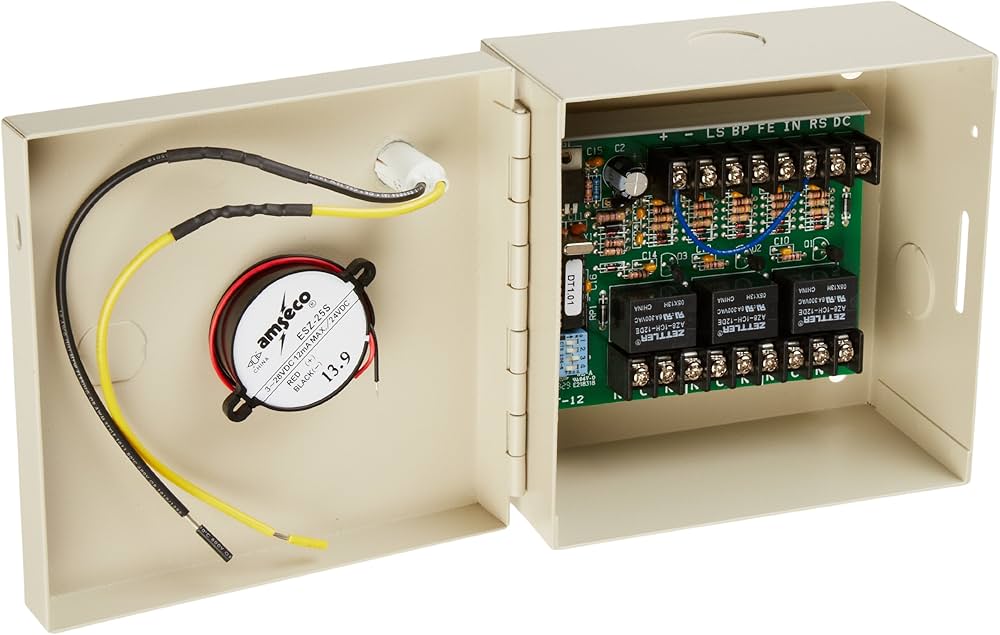

Equipped with a built-in Piezo sounder and LED for immediate local notification, the BA-DPA also includes three SPDT outputs for remote signaling to your central access control system. The unit features easy-to-configure digital time settings ranging from 30 to 240 seconds, allowing for custom security intervals based on the specific needs of the opening. With integrated tamper detection and a dedicated bypass mode for authorized access, the BA-DPA offers a robust, code-compliant solution backed by the industry-leading MagnaCare® lifetime replacement warranty.

Product Features

• Intelligent Door Monitoring: Automatically detects when a door remains open past a defined time frame to prevent security breaches.

• Escalating Alerts: Utilizes multiple time ranges to provide increasingly urgent local and remote notifications for propped doors.

• Triple Signal Output: Includes three SPDT relays (5A) for versatile local alerting and remote status reporting.

• Customizable Timers: Digital settings allow for precise 30 to 240 second intervals to suit various high-traffic environments.

• Tamper Resistance: Built-in circuitry detects attempts to tamper with the lock or door status sensors.

• Bypass Functionality: Features a bypass mode to accommodate valid maintenance or delivery needs without triggering alarms.

• MagnaCare® Warranty: Standard-setting no-fault, lifetime replacement guarantee ensures long-term operational reliability.


Technical Specifications

• Operational Voltage: Supports 12VDC or 24VDC power configurations.

• Power Consumption: Energy-efficient draw of 100 mA at 12 VDC or 50 mA at 24 VDC.

• Relay Capacity: High-capacity 5A SPDT relays for controlling secondary security hardware.

• Operating Temperature: Reliable performance from 32° to 120°F (0° to 49°C).

• Indication: Integrated High-decibel Piezo sounder and high-visibility status LED.

• Hardware: Includes all necessary mounting components for a secure, professional installation.
