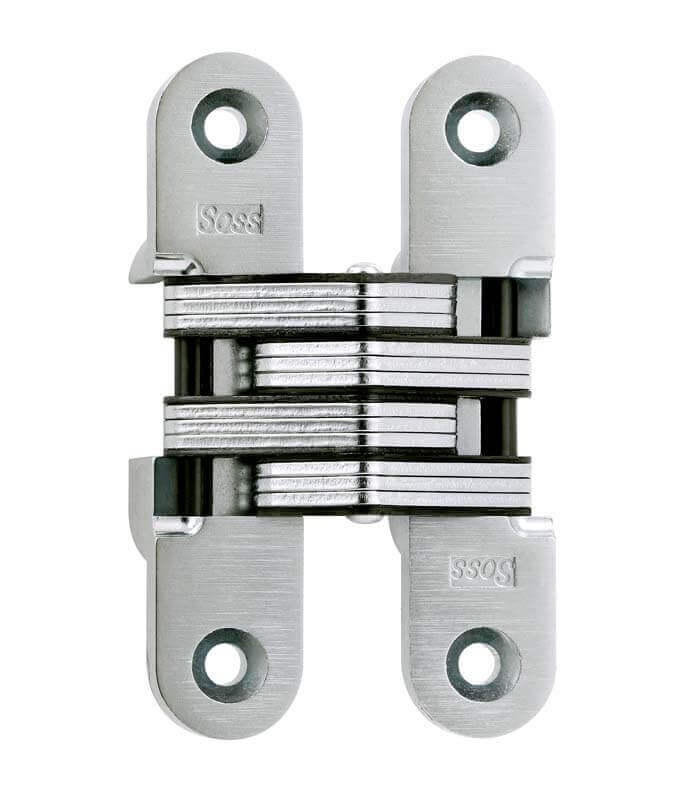

SOSS 216 Invisible Hinge for 1-3/8" Minimum Door Thickness
Description
The SOSS® Invisible Hinge model #216 is designed for both wood and metal doors with thicknesses ranging from 1-3/8″ to 1-3/4″. Constructed from durable zinc and steel, this full-size hinge offers an elegant look and long-lasting performance. Ideal for applications requiring a flush fit, compact design, and seamless operation, SOSS® Invisible Hinges allow for a full 180° opening and function as a single action hinge.
Wood and Machine screws are included.
Dimensions
| A | 1″ (25.40mm) |
| B | 47/64” (18.65mm) |
| C | 4-5/8″ (117.48mm) |
| D | 15/64” (5.95mm) |
| E | 1/4″ (6.35mm) |
| F | 2-19/32″ (65.88mm) |
| G | 1/16″ (1.59mm) |
| H | 1-15/32” (37.31mm) |
| I | 15/32″ (11.91mm) |
| Min. Matl. Thickness | 1-3/8″ (34.93mm) |
| Wood Screw Sizes | #14×1-1/2″ (6.3x38mm) |
| Soft Wood Pilot Hole | No. 32 |
| Hard Wood Pilot Hole | No. 10 |
| Machine Screw Sizes | #1/4-20×1″ |
| Hinge Weight | 1.65 lb. |
Additional Information
| Application | Full Sized Entry, Metal, Wood |
|---|---|
| Min. Material Thickness | 1-3/8″ |
| Fire Rating | No |
| Power Transfer | No |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood and Machine |
| Packaging | 1 / Box = 1 Each |
| Packages Per Container | 1 Each |
| Price Per | Each |
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US5 - Blackened Satin Brass or US14 - Polished Nickel or US19 - Flat Black or UNP - Unplated or US10BL - Oil Rubbed Bronze Lacquered |
| Brand | SOSS |
| Hinge Type | Invisible |
| Base Material | Steel |
| Door Thickness | 1-3/8" Dr Thickness, 1-3/4" Dr Thickness |
