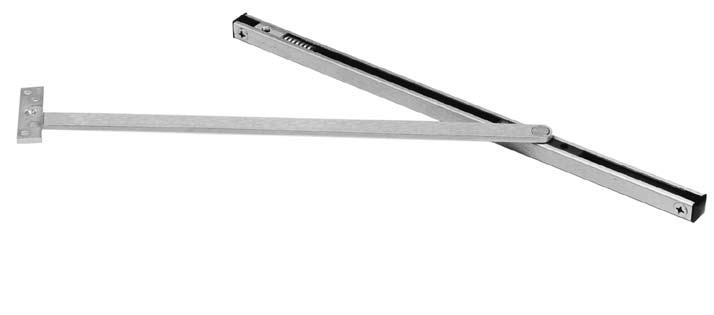

Rixson 10-436 Overhead Door Stop - Surface Mount - Medium Duty
For Door Widths (with Hinges) - 36-1/16" - 42"
For Door Widths (with Center Hung Pivots) - 38-1/16" - 45"
10 Series Product Description & Features:
• Adjustable
• Interior doors
• Single acting doors
• Non-handed
• Slide track design
• Recommended for moderate traffic, medium weight doors
• Degree of opening fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides compression before deadstop
• Can be ordered specifically as a stop, friction stay, or hold open.
• Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012-PKG (Adapter kit) included
• Complete screw packet with thru-bolts for door, wood and machine screws for frame
• Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• Stop function UL listed for fire door assemblies
• For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258
• Hanging means other than standard butts or offset pivots require special templating and pricing. Consult factory
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rixson |
| Stop Type | Overhead Stop |
| Overhead Stop Grade | Standard Duty - Surf Mtd |
| OH Stop Door Width | 36" thru 42" Opening |
