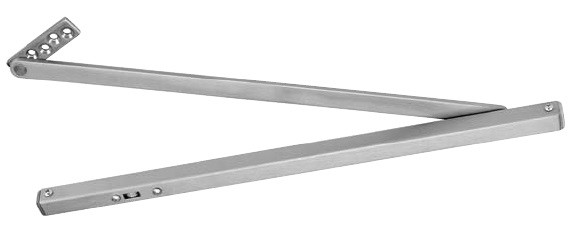

ABH 4414 Surface Mounted Overhead Door Stop and Hold Open | US32D Satin Stainless Steel

The ABH 4414 is an architectural-grade, medium-duty surface mounted overhead door stop specifically engineered for wide door openings. Designed to protect the structural integrity of oversized doors, frames, and hinges, this hardware is a critical solution for commercial door security and facility preservation. Sized for openings up to 48" wide and finished in premium US32D Satin Stainless Steel, the 4414 model serves as the definitive solution for door restoration in high-traffic corridors, hospitals, and educational institutions.

Adaptive Performance for Wide-Opening Doors

The ABH 4414 provides maximum field flexibility, allowing maintenance teams to customize the door's behavior based on the specific traffic patterns of the facility. It acts as a proactive solution for door surface repair by eliminating the impact of over-swinging:

• Automatic Hold-Open & Release: The precision sliding block mechanism allows the door to engage or release the hold-open position with a simple push or pull. This hands-free operation is an essential feature for maintaining ADA requirements and facilitating movement in busy service areas.
• Field Adaptable Functions: This versatile unit is multi-functional. The hold-open feature can be easily disengaged on-site to convert the hardware into a Stop Only function, providing a flexible solution for door restoration as facility needs evolve.

• Customizable Stop Points: The single-point hold-open can be adjusted in 5-degree increments from 85° to 110°, allowing you to protect wall-mounted monitors, equipment, or furniture by stopping the door at a specific angle.

• Non-Handed & Reversible: The 4414 is completely non-handed and reversible, making it a reliable stock item for facility managers because it installs seamlessly on both left and right-hand doors.


Industrial-Grade Stability with Thru-Bolt Engineering

Overhead hardware on wide doors is subject to significant leverage and stress. The ABH 4414 is built to remain secure and stable through years of constant use:

• High-Strength Thru-Bolt Mounting: To prevent the hardware from sagging or pulling loose from the door face, this unit is installed using thru bolts (included). This "clamping" method creates a reinforced connection that is far superior to standard screws, acting as a permanent solution for door edge reinforcement.
• Architectural Stainless Steel Construction: Featuring a 3/4” wide stainless steel channel and a 3/16” thick arm, the 4414 is built to absorb the kinetic energy of a large moving door without mechanical fatigue.
• Warnock Hersey Listed: In the "Stop Only" configuration, this hardware is Warnock Hersey listed, ensuring it meets the stringent fire and life safety standards required for modern commercial buildings.
• Corrosion Resistant Finish: The US32D (630) finish is not only aesthetically pleasing but also provides a durable layer of protection against moisture and harsh cleaning agents.

Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 4414 (Medium Duty)
• Finish: US32D (630 Satin Stainless Steel)
• Door Frame Opening (Hinges): 36" - 48" Wide
• Door Frame Opening (Center Hung Pivots): 39" - 48" Wide

• Minimum Door Thickness: 1-3/8"

• Maximum Opening: 110 Degrees
• Fasteners: Wood screws, machine screws, and thru bolts included

Why Choose the ABH 4414?

For facilities with wide doors and high-traffic demands, the ABH 4414 is the premier solution for commercial door security. Its combination of thru-bolt stability and adaptable functionality makes it a long-term solution for door restoration. By effectively controlling the door's range of motion, the 4414 prevents expensive frame damage and wall repairs, ensuring your facility remains safe and professional.
