Hadrian 601010 Door Hardware Kit | Out-Swing Barrier-Free (ADA) Chrome Set

The Hadrian 601010 Door Hardware Kit is a professional-grade, all-in-one solution designed specifically for out-swinging, barrier-free (ADA) toilet partition doors. Finished in high-polish Chrome, this comprehensive kit is engineered for concealed hinge applications, providing a clean, tamper-resistant look that hides internal mounting components. It is the definitive solution for door restoration when upgrading a restroom stall to meet accessibility requirements or replacing worn hardware on 1.25" thick pilasters and 1" thick doors.

Whether you are working with powder-coated steel or stainless steel systems, the 601010 acts as a permanent solution for door security and accessibility. This industrial-strength set includes specialized barrier-free components like back-to-back pull handles, ensuring your facility remains compliant with modern building codes while maintaining the durability required for high-traffic environments like hospitals, airports, and schools.

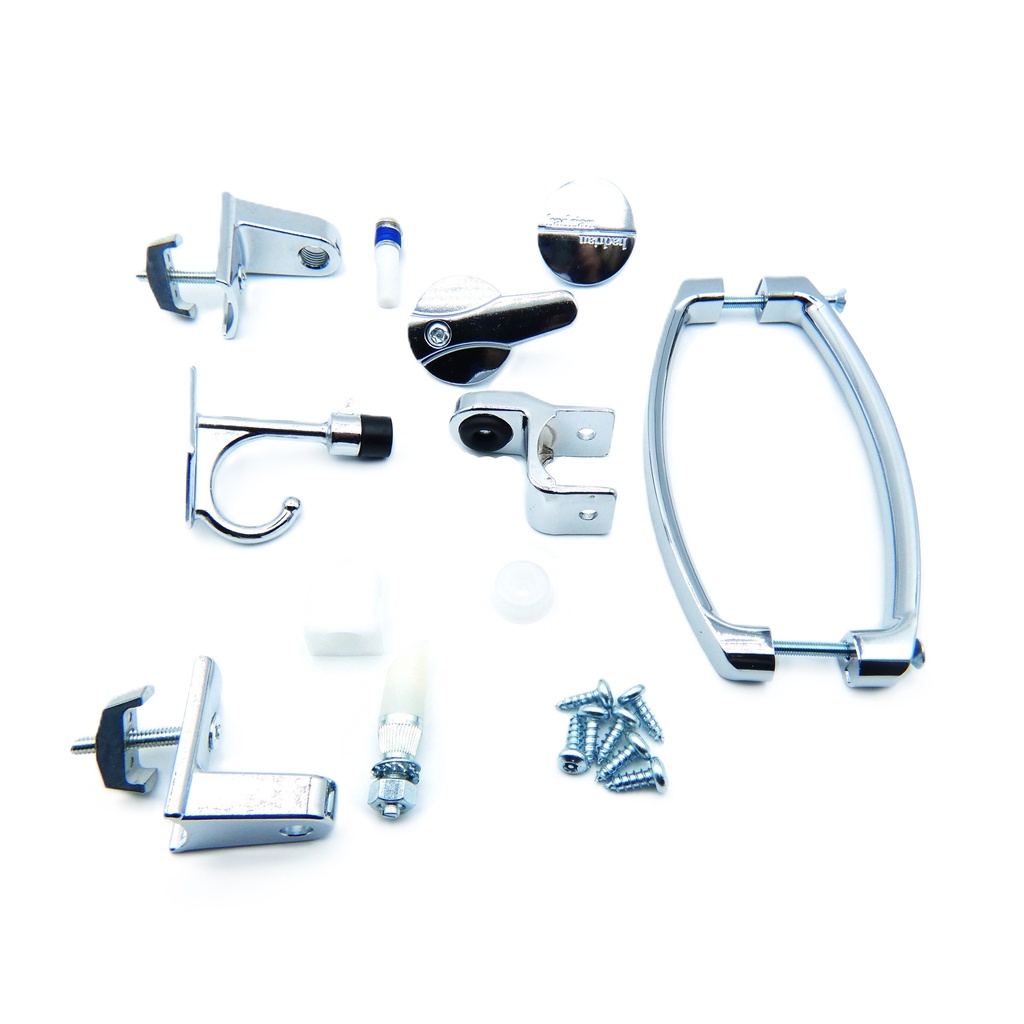

What’s Included in the 601010 Kit?

This master kit is a complete "problem solver" for ADA compliance and facility maintenance, containing:

• Pivot & Hinge System: Includes the 601300 Upper Hinge Assembly, 601500 Lower Hinge Assembly, and the 631400 Threaded Upper Hinge Pin.
• Gravity-Cam Mechanism: Features the 601600 Male Cam and 601700 Female Cam for reliable "rise and fall" door operation.
• ADA Accessibility Hardware: Contains the 610112 Back-to-Back Pull Handle Kit (5-1/2" centers) and the 601150 Inner/Outer Knob Kit for easy operation.

• Protection & Stops: Includes the 601800 Door Stop and Keeper (for 1-1/4" pilasters), the 601900 Coat Hook and Bumper, and the 610080 White Nylon Bumper.

• Security Fasteners: Provided with seven 610071 TR-27 6-Lobe Security Screws (#12 x 5/8") to prevent unauthorized removal.


Key Features & Performance

• Barrier-Free (ADA) Compliance: Specifically curated to meet accessibility standards for out-swinging doors, serving as a high-performance solution for door restoration.
• Concealed Mounting Aesthetic: The hardware is designed to maintain a sleek profile that hides fasteners, providing a robust solution for door security against vandalism.
• Industrial Strength Construction: Every component is built to withstand the unique leverage and stress of wider ADA doors, acting as a permanent solution for door edge reinforcement.
• Polished Chrome Finish: Offers a professional look and superior corrosion resistance, functioning as a high-durability remodeling scar plate when covering old hardware footprints.
• Universal Application: Compatible with both 1" thick doors and 1.25" thick pilasters in steel or stainless steel systems.


Technical Details & Specifications

• Brand: Hadrian
• Model Number: 601010
• Finish: Polished Chrome
• Configuration: Out-Swing / Barrier-Free (ADA)
• Mounting Style: Concealed Hinge
• Compatibility: 1.25" Pilasters / 1" Doors

• Installation: For maximum structural integrity in public restrooms, the use of thru bolts is highly recommended to secure the hinge and handle components through the door material.
