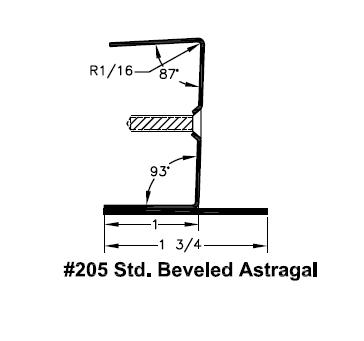

All Metal Stamping 205 Steel Astragal – 83-1/4" Door Pair Seal for Beveled-Edge Doors
The All Metal Stamping #205 Steel Astragal is a commercial-grade, surface-mounted door pair seal engineered for beveled-edge door applications. At 83-1/4" in length, this flat bar steel astragal covers standard commercial door pair heights and delivers reliable edge-to-edge sealing at the meeting stile of double-door openings. Finished in a beige prime paint, it is ready for field finishing to match the surrounding opening.
Key Features & Benefits
- Designed for doors up to 1-13/16" thick — fits the majority of standard commercial hollow metal and wood-face door pairs
- Low-side bevel mounting — the #205 mounts on the low side of the door bevel; specify the #210 if installation on the high side of the bevel is required
- Blank / uncut stock — supplied without hardware cutouts, allowing field or shop machining to accommodate locksets, flush bolts, coordinators, or other hardware preps
- Beige prime painted finish — accepts field-applied paint for a clean, finished appearance
- Fire-rated door compatibility — UL and WHI approved for use on wood or plastic-faced doors rated up to 90 minutes; also UL approved for hollow metal and steel-covered composite doors rated up to 3 hours
- Suitable for use as an overlapping astragal on inactive-leaf door pairs in commercial, institutional, and industrial openings
Applications
- Commercial double-door openings requiring a door pair seal at the meeting stile
- Hollow metal door pairs, steel-covered composite door pairs, and wood or plastic-faced door pairs
- Fire-rated openings requiring a listed astragal — up to 90-minute wood/plastic-face or 3-hour hollow metal
- New construction and replacement astragal projects where field machining for hardware preps is needed
- Openings with beveled-edge active or inactive leaves where low-side bevel placement is specified
Specification & Ordering Notes
The #205 is supplied as a blank extrusion (no cutouts). Hardware preparations — including provisions for flush bolts, automatic flush bolts, coordinators, and exit device rod clearances — can be machined in the field or requested as a custom shop-prepared order. Pricing shown is per piece. Door pairs typically require one astragal per pair; confirm opening conditions before ordering.
205 vs. 210 — Which side of the bevel? The #205 mounts on the low side of the door bevel. The #210 mounts on the high side. Always verify bevel orientation before specifying.
Technical Details
| Feature | Details |
|---|---|
| Manufacturer | All Metal Stamping |
| Model / Series | #205 |
| Astragal Type | Steel flat bar / surface-mounted overlapping astragal |
| Length | 83-1/4" |
| Door Thickness Compatibility | Up to 1-13/16" |
| Bevel Position | Low side of bevel (#210 = high side) |
| Finish | Beige prime painted (field paintable) |
| Hardware Cutouts | Blank — no cutouts (custom preps available on request) |
| Fire Rating — Wood / Plastic-Face Doors | UL & WHI approved up to 90 minutes |
| Fire Rating — Hollow Metal / Steel Composite | UL approved up to 3 hours |
| Sold As | Per piece |
| Brand | All Metal Stamping |
| Weatherstripping Type | Astragal |
| Door Edge | Beveled |
| Door Edge Type | Non-Mortised |
| Door Height | 7'0" Dr Ht |
