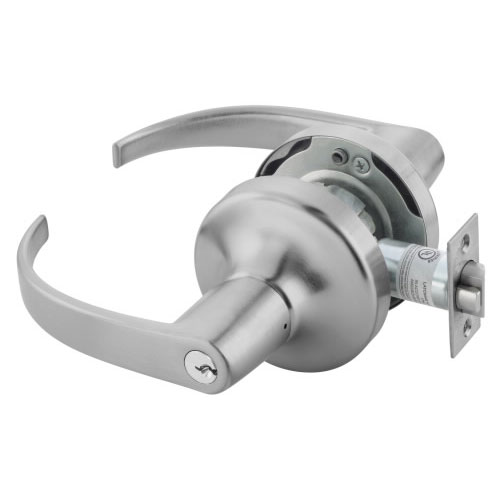

Accentra PB 4708LN Grade 1 Classroom Cylindrical Lock | Free Wheeling
Function Information:
- For classroom or utility room doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked by key).
- Inside lever always active.
- Key releases outside lever.
- *Lever Handles are Free Wheeling in Locked Position
- ANSI F84
The Accentra PB 4708LN (formerly the Yale 4700LN Series) is a premier Grade 1 commercial lockset specifically engineered for high-use environments. The Classroom Function (ANSI F84) is designed for maximum safety: the outside lever can be locked or unlocked by a key, while the inside lever is always active to ensure free egress at all times. Featuring a rugged cylindrical chassis and the innovative Free Wheeling lever mechanism, this lock provides superior resistance against vandalism and forced entry.
Advanced Security & Architectural Features
- Grade 1 Heavy-Duty Performance: ANSI/BHMA A156.2 Series 4000 certified, built to withstand the rigors of high-traffic school corridors and municipal buildings.
- Free Wheeling Lever Mechanism: When the outside lever is locked, it rotates freely up and down without engaging the latch. This prevents intruders from snapping the internal components by applying excessive force to the handle.
- Classroom Function (F84): Ideal for educational and utility spaces. The deadlocking latchbolt is operated by either lever unless the outside handle is locked by a key. Once locked, the key is required to release the outside lever.
- Universal Door Fit: Integrated rose support plates allow the 4708LN to adjust easily for doors ranging from 1-3/4" to 2" thick.
- Fire Rated & Accessible: UL/cUL listed for all fire doors up to 3 hours and fully compliant with ADA A117.1 Accessibility Codes for easy operation.
Technical Specifications
- Series: Accentra 4700LN (Formerly Yale)
- Function: 4708LN Classroom (ANSI F84)
- Backset: 2-3/4" Standard
- Latchbolt: 1/2" Throw Deadlocking
- Cylinder: 6-pin Brass, PARA (E1R) Keyway
- Handing: Non-Handed (Field Reversible)
- Warranty: 7-Year Limited Warranty
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4700 Series |
