Shop Swing Clear Hinges by Size
A swing clear hinge offsets the door out of the opening as it swings, so beds, stretchers, and equipment can use the full width of the frame. A standard butt leaves the door leaf in the clear opening; swing clear does not.

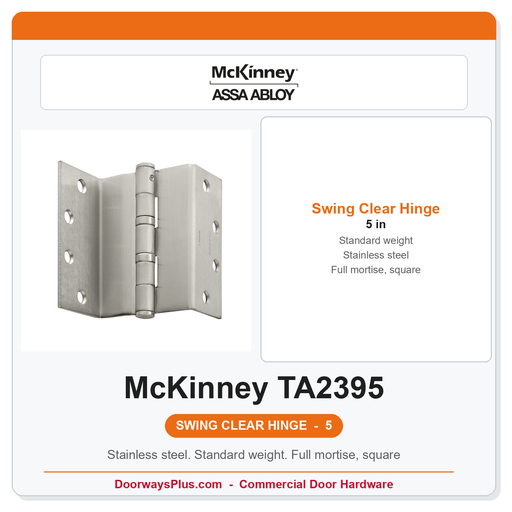

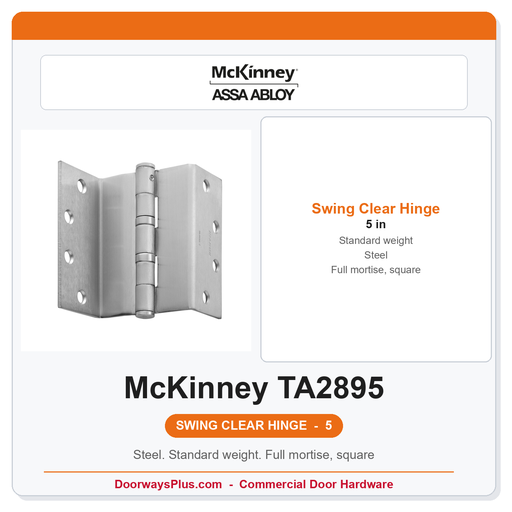

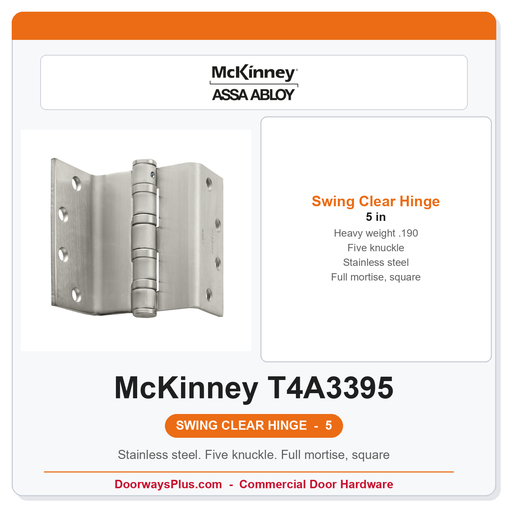

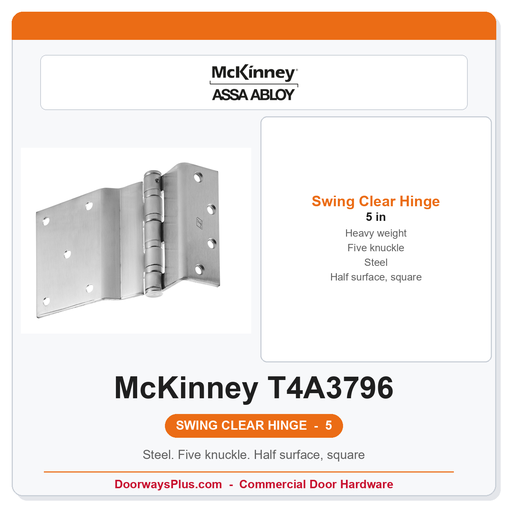

McKinney covers the class in 4-1/2 in and 5 in heights: full-mortise standard weight (TA2895 / TA2395), full-mortise heavy weight (T4A3795 / T4A3395), half-mortise heavy weight (T4A3789), and half-surface (T4A3796). Hospital-tip and beveled sisters sit in the same height and mounting tiles.
