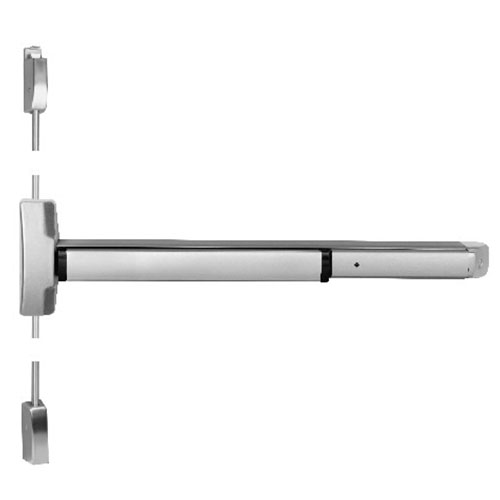

Accentra 6170FED Grade 1 Fire-Rated Surface Vertical Rod Exit Device | 3'0" x 7'0" Door | 630 Stainless Steel
The Accentra 6170FED Fire-Rated Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a high-intent, life-safety solution engineered for the most demanding architectural environments. Finished in a premium 630 (US32D) Satin Stainless Steel, this Grade 1 Fire Exit Device provides essential two-point latching security for fire-labeled pairs of doors. It is the premier choice for hospitals, universities, and high-rise commercial buildings where 3-hour fire containment must be balanced with sophisticated design and industrial-strength durability.
As a member of the elite 6000 Series, the 6170FED features a sleek, low-profile rail that minimizes projection into the clear opening. This "Exit Only" device is specifically designed to keep fire doors securely closed under the extreme pressure of a fire event, while ensuring building occupants can evacuate effortlessly with a single touch.
Elite Fire Safety & Structural Security
- 3-Hour Fire Rating: UL/cUL Listed for fire exit hardware (GXHX) on pairs of doors up to 8' x 8', providing the maximum protection required by strict international building codes.
- Two-Point Deadlocking: Features a top 3/4" Pullman-style latchbolt with automatic deadlatching and a bottom 5/8" deadbolt for total perimeter protection and door stability.
- Architectural Stainless Steel Finish (630): The satin stainless steel construction is not only aesthetically superior but offers the highest level of corrosion resistance and longevity in high-frequency use areas.
- ANSI/BHMA Grade 1 Certified: Tested to exceed A156.3 standards, ensuring millions of cycles of reliable performance in high-traffic institutional settings.
- Bolt Retraction Technology: The bottom bolt is held retracted during the door swing, preventing floor damage and ensuring smooth, "no-drag" operation.
- Field Reversible Handing: While this device is handed (please specify LHR or RHR), the design allows for field reversibility to accommodate unexpected job site changes.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 6170FED (Exit Only) |
| Device Type | Fire-Rated Surface Vertical Rod (SVR) |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | 630 - Satin Stainless Steel (US32D) |
| Door Size Compatibility | 36" Width x 84" Height (3'0" x 7'0") |
| Minimum Stile Width | 4-1/2" (Wide Stile) |
| Top Strike | Roller Type 791 |
| Bottom Strike | Flush Mounted 790 |
| Fasteners | Thru Bolts (Sex Nuts & Bolts) Shipped Standard |
| Warranty | 10-Year Limited Warranty |
Professional Installation & Code Compliance
The Accentra 6170FED is designed for a permanent, high-strength mount. To meet the requirements of fire-rated door manufacturers and to ensure the hardware never loosens under constant use, this device is supplied standard with thru bolts for a secure "sandwich-style" attachment. While this model is an "Exit Only" configuration, it is fully compatible with Accentra Exit Device Trim, such as the 620F Series Escutcheon or 440F Series Rose Trim, allowing for keyed exterior access where required.
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 6000 Series |
| Door Opening Width | 36 Inches |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Fire Rated Door |
