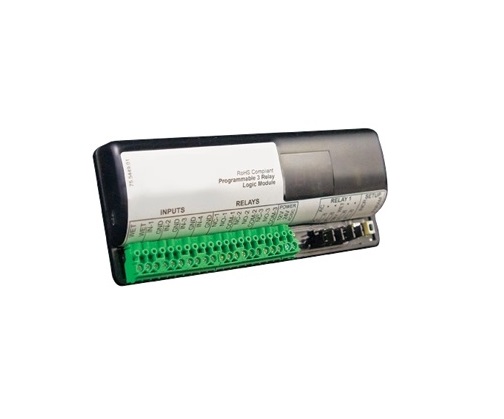

Hager 2-659-0240 Programmable Relay & Door Sequencer

Hager 2-659-0240 Programmable Relay & Door Sequencer

Specifications

Applications

• Capable of simple and advanced relay logic this product provides a single solution for a variety of applications
• Used with automatic doors, access control, automation, and single-occupancy restrooms

Box Quantity1Case Quantity20Electrical Specifications

• Supply Voltage: 12 to 24 V AC/DC
• Power Consumption: 30 to 130 mA
• Relay #1(Dry): 3 A @24 VAC / 30 VDC
• Relay#1(Wet): 1 A @ 5-24 VAC/VDC
• Relay #2: 3 A @24 VAC / 30 VDC
• Relay #3: 1 A @24 VAC / 30 VDC

Features

• Intuitive programming
• Three integrated relays; two 3 AMP and one 1 AMP
• Built-in surge suppression eliminates the need for external components when installing electric locking devices
• Relay hold times up to 60 seconds per relay
• Delay times between relay; 1/4, 1/2, and 3/4 second options

Functions

• 10 - Simple Timer
• 11 - Ratchet/Latching
• 22 - 2 relay Sequence Inhibitor with Door Position Input
• 28 - 2 Relay Sequence with Door Position Input
• 29 - Relay 1 Deactivation Timer
• 36 - 3-Relay Sequencer + "1-shot"
• 37 - 3-Relay Sequencer with "Independent Relay"
• 50 - Interlock Timer with Door Position Inputs
• 55 - Interlock Ratchet with Door Position Inputs
• 65 - 2-Way, 2 Relay Sequence
• nL - Normally Locked Restroom
• nU - Normally Unlocked Restroom
• dn - 3-Relay Sequencer + "Day/Night Mode"
• 00 - Disable (default)

Material

Housing Material: Clear ABS Plastic

Operating Temperature-15 degrees to 150 degrees FProduct Description

Programmable relay for door timing and advanced relay sequencing

Product Number2-659-0240Size

• 1.0" (Height)
• 5.2" (Width)
• 2.2" (Depth

Warranty

1 Year
