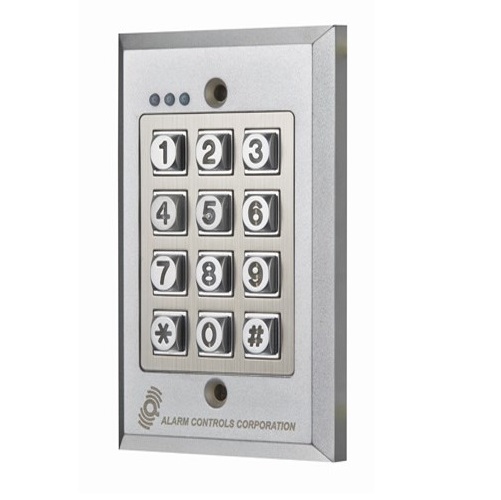

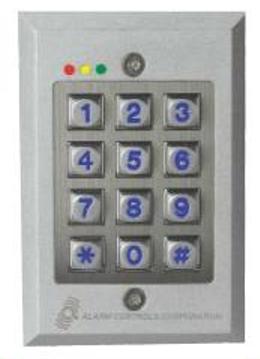

Alarm Controls KP-200 Flush Mounted Weather Resistant & Vandal-Proof Digital Keypad
Standard Features:
Surface mounted
True 10-digit operation (10 digits plus * and # keys)
Capacity up to 100 user codes, length from 4 to 8 digits
Fully programmable from the keypad
Programmable passage and false code lockout mode capabilities
Built-in tamper switch
Red, green, and yellow LEDs for status and programming feedback
Request to Exit (REX) input
Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
For indoor applications
3 year warranty
Dimensions: 3-1/5"W x 4-3/4" L x 3/5"D
Electrical:
Operating voltage:12 or 24 VAC or VDC, auto sensing
Operating Current: 78 mA relay opening; 16 mA at rest
Output 1 relay: SPDT contact rating: 1A at 24 VDC
Output 2 relay: SPDT contact rating: 1A at 24VDC; Jumper selectable. N/O or N/C Dry contacts.
Operating Temperature: -4°F to +158°F [-20°C to +70°C]
| Brand | Alarm Controls |
| Keypad Options | Weather Resistant |
| Voltage | 12 VDC, 24 VDC |
| Key Pad Mounting | Flush |
