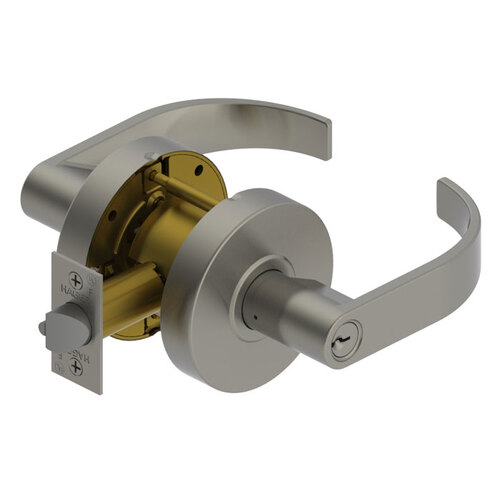

Hager 2553 ARC Grade-2 Entrance Lever Lock (Thumb Turn)
Function Information:
The Hager 2553 ARC is a premier, commercial-grade cylindrical lockset that marries the sophisticated, sweeping lines of the Archer (ARC) lever with heavy-duty security. As an Entrance Function (ANSI F109), this lock is designed for exterior or office doors where keyed access is essential. The lock is operated by a lever from either side unless the outside is secured by the interior thumb turn or an exterior key, providing a high level of control over the opening.
Superior Security and Architectural Style
The Hager 2553 is built for users who demand both aesthetic excellence and rigorous performance. The interior thumb turn offers a tactile, manual locking experience for occupants, while the exterior key cylinder ensures secure entry for authorized personnel. To safeguard against common intrusion methods, the deadlocking latchbolt is specifically engineered to resist "shimming" or "loiding." Its non-handed construction ensures that this lockset can be deployed on any door swing throughout your facility without complex field adjustments.
Built to Last and Fully Accessible
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series features a heavy-gauge steel chassis protected by a zinc dichromate finish for maximum corrosion resistance. The Archer lever is fully ADA compliant, providing a comfortable, curved grip that allows for easy operation without the need for tight grasping or twisting. With no exposed mounting screws, the 2553 ARC maintains a clean, high-end profile while being significantly more resistant to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Entrance / Entry (ANSI F109) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

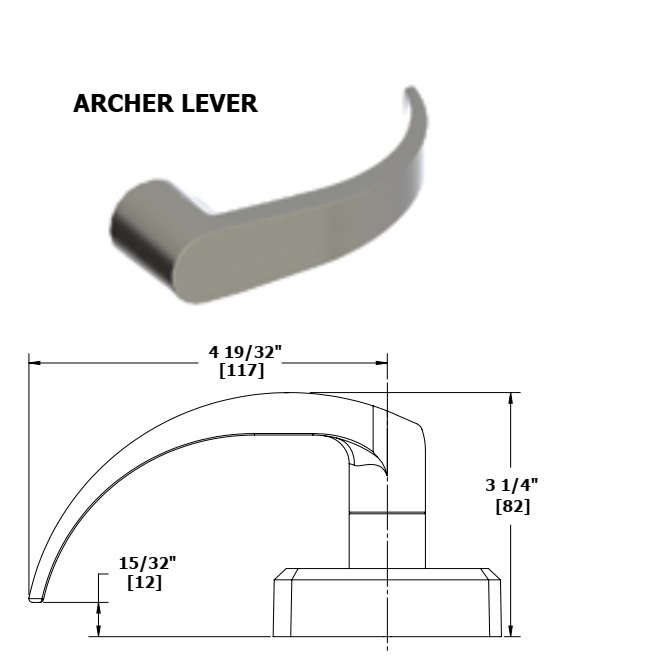

| Lever Style | Archer (ARC) |
| Locking Mechanism | Interior Thumb Turn / Exterior Key |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Architectural Archer Lever: Offers a modern, ergonomic design that elevates the look of any professional or multi-family residential entryway.
- Manual Thumb Turn Control: Allows occupants to quickly secure the door from the inside with a simple turn, no key required.
- Deadlocking Protection: The 1/2" throw latchbolt includes a deadlocking feature to prevent unauthorized retraction by force.
- Life-Safety Certified: Rigorously tested and UL listed for 3-hour fire-rated doors, ensuring full compliance with commercial building codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | ARC - Archer |
| Series | Hager - 2500 Series |
