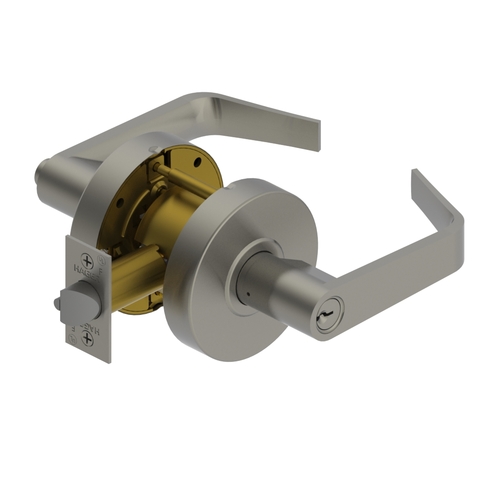

Hager 2570 WTN Grade 2 Classroom Lever Lockset
Function Information:
The Hager 2570 WTN is a heavy-duty, commercial-grade cylindrical lockset specifically designed for educational facilities and training centers. As a Classroom Function (ANSI F84), the outside lever is locked or unlocked by a key, while the inside lever always allows for free egress. Featuring the ergonomic Withnell (WTN) lever design, this lockset provides the essential security required for student safety while maintaining a professional, modern aesthetic.
Essential Security for Learning Environments
Security and life safety are the primary focus of the Hager 2570. By utilizing a key-controlled exterior, faculty can ensure that a room remains secured from the outside while students inside are never trapped. The deadlocking latchbolt provides an extra layer of defense by preventing "shimming" or unauthorized retraction of the latch. This lockset is non-handed, allowing for a simplified installation on any door swing within your facility.
Architectural Durability and Compliance
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series is built to withstand the high-frequency use common in school hallways and university buildings. The chassis is constructed from heavy-gauge steel with a zinc dichromate finish for superior corrosion resistance. The Withnell lever is fully ADA compliant, ensuring accessibility for all students and staff. With no exposed mounting screws, the 2570 WTN offers a clean, tamper-resistant profile that discourages vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Classroom (ANSI F84) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

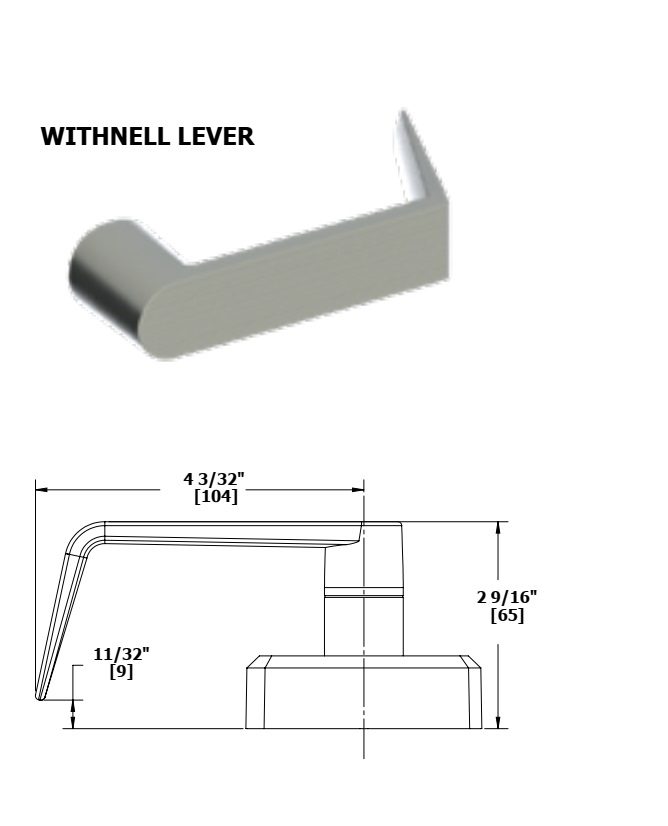

| Lever Style | Withnell (WTN) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Key-Controlled Access: The exterior lever remains locked or unlocked solely by key, preventing unauthorized changes to the lock status from the inside.
- Fail-Safe Egress: The interior lever is always active, ensuring occupants can exit the room immediately at all times.
- Vandal-Resistant Design: Concealed mounting screws and a heavy-duty steel chassis provide a robust barrier against hardware tampering.
- Fire-Rated Safety: UL listed for 3-hour fire doors, meeting the stringent life-safety codes required for educational institutions.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | WTN - Withnell |
| Series | Hager - 2500 Series |
