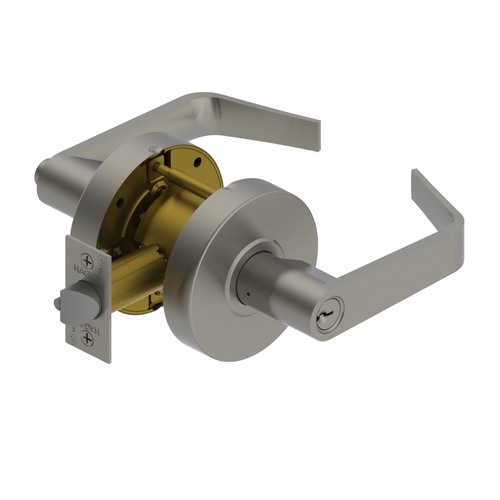

Hager 2580 WTN Grade 2 Storeroom Lever Lock
Function Information:
The Hager 2580 WTN is a heavy-duty, commercial-grade cylindrical lockset designed for high-security areas that must remain locked at all times. As a Storeroom Function (ANSI F86), the exterior lever is always rigid and can only be retracted by a key. Featuring the sleek, ergonomic Withnell (WTN) lever design, this lockset provides a clean architectural look while ensuring that sensitive areas like utility closets, server rooms, and storage spaces are never left inadvertently unsecured.
Maximum Security for Controlled Access
The Hager 2580 is the industry standard for "always-locked" applications. Because the outside lever does not have a mechanical unlock state, access is strictly limited to keyholders. For maximum life safety, the inside lever always allows for free egress, ensuring that personnel can exit the room instantly in an emergency. The deadlocking latchbolt further enhances security by resisting "shimming" and other common forced-entry techniques.
Industrial Build and ADA Compliance
Certified to ANSI/BHMA Grade 2 standards, the Hager 2500 Series is constructed with a heavy-gauge steel chassis and a zinc dichromate finish for superior corrosion resistance. The Withnell lever is fully ADA compliant, allowing for easy operation without the need for tight grasping or twisting. The design features no exposed mounting screws, providing a streamlined professional appearance and a higher level of resistance to tampering and vandalism.
Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Storeroom (ANSI F86) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Withnell (WTN) |
| Exterior Status | Always Locked / Rigid |
| Interior Status | Always Active (Free Egress) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Always-Locked Security: The outside lever is fixed and requires a key for every entry, eliminating the risk of a door being left unlocked.
- Non-Handed Versatility: Can be installed on both left and right-handed doors, simplifying the ordering and installation process.
- Vandal-Resistant Chassis: The concealed mounting screws and steel construction provide a robust barrier for secure commercial spaces.
- Life-Safety Certified: UL/cUL listed for up to 3-hour fire doors, meeting all critical building codes for commercial and institutional facilities.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | WTN - Withnell |
| Series | Hager - 2500 Series |
