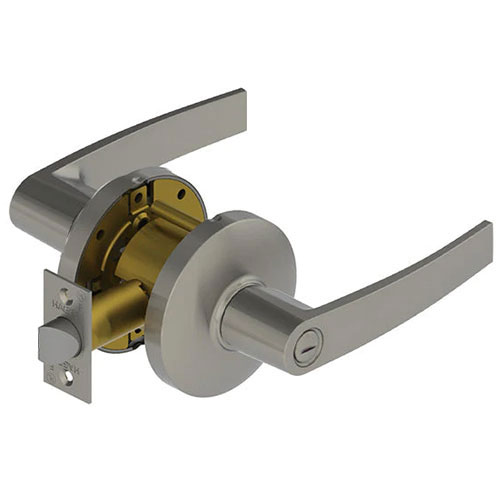

Hager 3540 AUG Grade 2 Privacy Lever Latchset
Function Information:
The Hager 3540 AUG is a premium, commercial-grade cylindrical lockset designed specifically for areas requiring privacy, such as restrooms, changing rooms, and private offices. Part of the high-performance 3500 Series, this latchset features the bold, modern August (AUG) lever design. It provides a clean, linear architectural aesthetic while delivering the institutional-strength durability and cycle life required for demanding professional environments.
Modern Privacy and Safety Compliance
As a Privacy Function (ANSI F76), the Hager 3540 is operated by a lever from either side unless the outside is locked by the interior push button. Occupant safety is a priority: the inside lever always allows for free egress, and the lock features an outside emergency release that can be operated with a small tool to provide access in case of an emergency. The privacy mechanism automatically resets when the door is closed or the inside lever is turned, preventing accidental lockouts.
Industrial Build and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series is constructed with a heavy-gauge steel chassis and a zinc dichromate finish for superior corrosion resistance. The August lever is fully ADA compliant, providing a comfortable, straight-profile grip that is easily operated by all users. The design features no exposed mounting screws, resulting in a sleek, tamper-resistant profile that enhances both the security and the modern aesthetic of the opening.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Privacy (ANSI F76) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

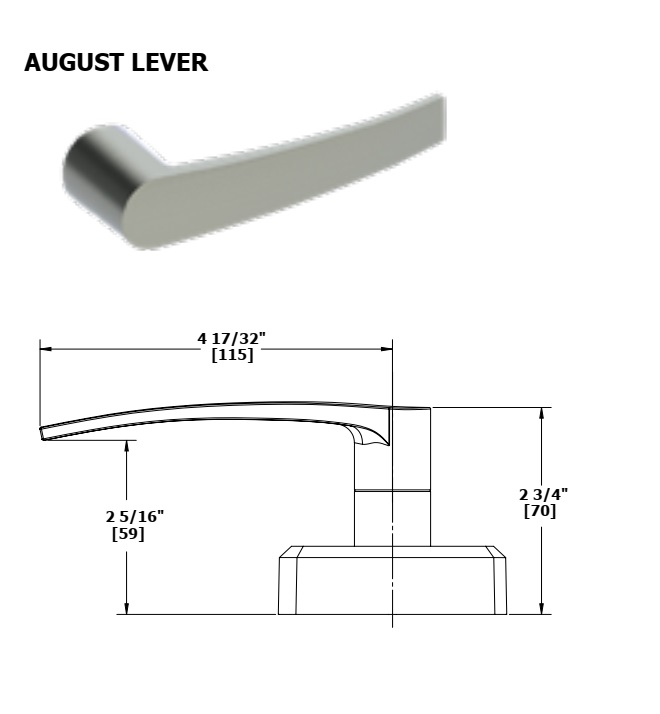

| Lever Style | August (AUG) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
| Warranty | 5-Year Limited Warranty |
Key Product Highlights
- August Contemporary Style: The AUG lever provides a sharp, professional look that fits seamlessly into modern architectural designs.
- Automatic Reset Safety: The interior push button automatically releases when the door is closed, ensuring the room is not left locked.
- Vandal-Resistant Design: Concealed mounting screws provide a streamlined look while protecting the hardware from unauthorized tampering.
- Fire-Rated Performance: UL listed for 3-hour fire doors, ensuring the hardware meets all critical commercial building and life-safety codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
| Occupancy Indicator | No |
