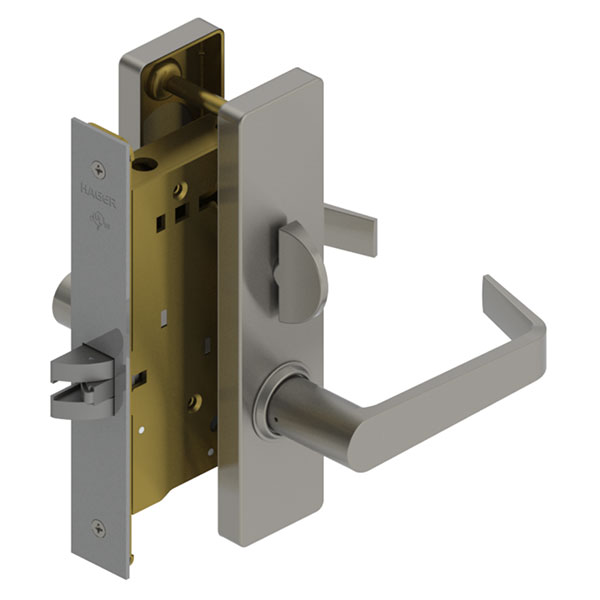

Hager 3840E Privacy Mortise Latchset – Grade 1 Escutcheon Trim
The Hager 3840E Privacy Mortise Latchset is a heavy-duty, commercial-grade locking solution designed for areas requiring specialized privacy, such as restrooms, changing rooms, and private offices. This Privacy Function (ANSI F22) set allows the internal thumbturn to lock the outside lever, while the outside lever features an emergency release tool access. It is the premier choice for high-traffic environments in healthcare, education, and corporate facilities where frequent use and reliable privacy are essential.
As a BHMA Certified Grade 1 device, the 3840E is built to the highest mechanical standards. The Escutcheon (E) trim design provides a sleek, continuous vertical plate that offers a clean and professional appearance. The heavy-duty mortise lock body is constructed from high-strength steel with a corrosion-resistant coating, ensuring smooth mechanical performance for millions of cycles.
Industrial Security & Architectural Style
The Hager 3840E combines the strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel and prevent the sagging often found in lower-grade hardware. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the trim perfectly aligned even under heavy daily use.
Key Features
- Privacy Functionality: Internal thumbturn locks the outside lever; emergency release access from the exterior (ANSI F22).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Escutcheon Trim Design: 2-1/8" x 8" vertical plate provides a classic, high-end architectural look.
- Heavy-Duty Mortise Body: Case-hardened steel components for maximum longevity and security.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3840E |
| ANSI Function | F22 (Privacy / Bath & Bedroom) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3840E at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F22 - Privacy |
| Series | Hager - 3800 Series |
| Occupancy Indicator | No |
