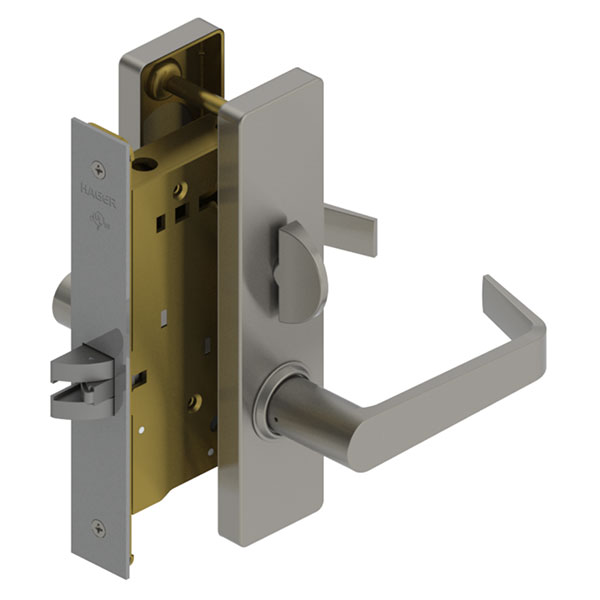

Hager 3844E Privacy Mortise Latchset – Grade 1 Escutcheon with Cointurn
The Hager 3844E Privacy Mortise Latchset is a heavy-duty, commercial-grade locking solution specifically designed for environments where both privacy and rapid emergency access are critical, such as healthcare facilities, nursing homes, and public restrooms. This Privacy Function (ANSI F22) set features an internal thumbturn to lock the outside lever. Unlike standard privacy sets, the exterior is equipped with a cointurn emergency release, allowing staff to quickly unlock the door with a common coin or flat tool without the need for a specialized key.
As a BHMA Certified Grade 1 device, the 3844E is built to the highest mechanical standards for high-frequency use. The Escutcheon (E) trim design provides a sleek, continuous vertical plate that offers a clean, professional appearance and superior durability. The heavy-duty mortise lock body is constructed from case-hardened steel with a corrosion-resistant coating, ensuring smooth operation for millions of cycles.
Safety-First Engineering & Professional Style
The Hager 3844E combines the strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel and prevent the handle sagging often found in lower-grade hardware. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the trim perfectly aligned even under extreme daily use.
Key Features
- Cointurn Emergency Release: Allows rapid exterior access during emergencies using a coin or flat tool.
- Privacy Functionality: Internal thumbturn locks the outside lever for user privacy (ANSI F22).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Escutcheon Trim Design: 2-1/8" x 8" vertical plate provides a clean, high-end architectural look.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3844E |

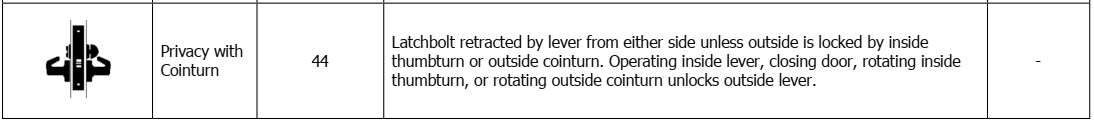

| ANSI Function | F22 (Privacy with Cointurn Release) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3844E at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria on touch surfaces.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F22 - Privacy |
| Series | Hager - 3800 Series |
| Occupancy Indicator | No |
