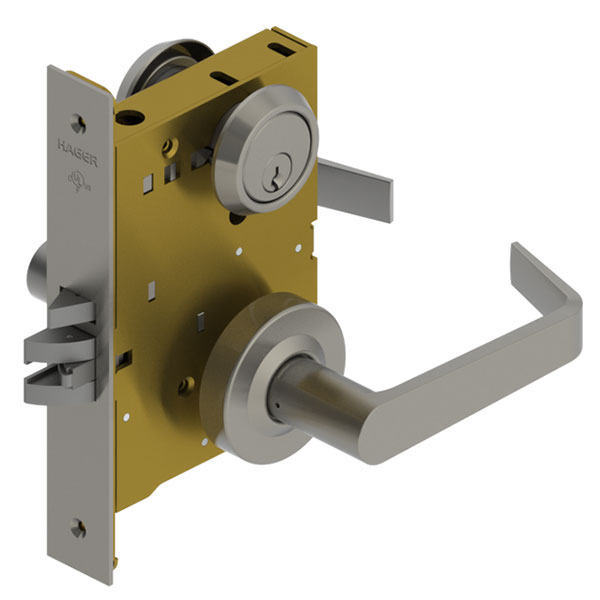

Hager 3861S Apartment Entrance Mortise Lockset – Grade 1 Sectional Trim
The Hager 3861S Apartment Entrance Mortise Lockset is a premier, heavy-duty security solution specifically engineered for multi-family housing, apartment complexes, and upscale residential suites. This Apartment Entrance Function (ANSI F08/F10) set provides a sophisticated balance of resident security and convenience: the latchbolt is operated by a lever from either side unless the outside lever is locked by a toggle. The deadbolt is projected by a key from the outside or a thumbturn from the inside. Crucially, a turn of the inside lever retracts both the latch and the deadbolt simultaneously, ensuring a fast, single-motion egress during emergencies.
By utilizing the Sectional (S) Trim, the 3861S offers a contemporary, low-profile aesthetic that is ideal for modern architectural projects. As a BHMA Certified Grade 1 device, it is built to withstand the rigorous daily use of high-density housing while maintaining a clean, minimalist appearance on the door face.
Commercial Security & Modern Architectural Style
The Hager 3861S combines the massive strength of an industrial mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel, ensuring the handles remain level and responsive even after years of constant operation. For a permanent and stable mount, the sectional roses are secured using thru bolts, providing a high-strength, through-the-door connection that resists tampering and keeps the hardware perfectly aligned.
Key Features
- Apartment Entrance Function: Toggle-controlled locking with deadbolt security (ANSI F08/F10).
- Single-Motion Egress: Inside lever retracts both latch and deadbolt for immediate emergency exit.
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Sectional Rose Trim: 2-7/16" diameter roses provide a modern, minimalist architectural look.

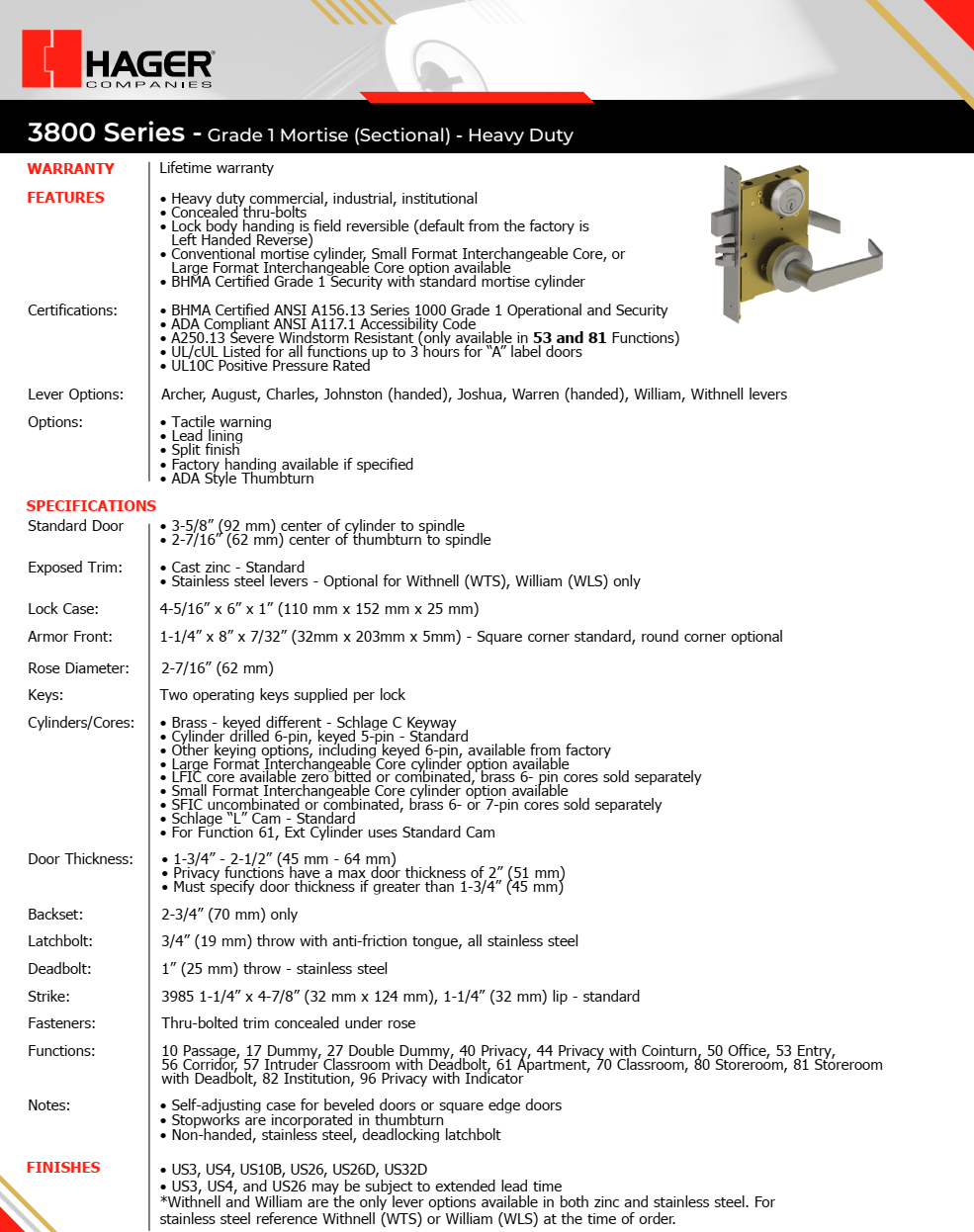

Technical Specifications
| Feature | Specification |
| Model Number | Hager 3861S |
| ANSI Function | F08 / F10 (Apartment Entrance) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Sectional (S) Rose Design |
| Rose Diameter | 2-7/16" (62 mm) |
| Door Thickness | Standard 1-3/4" (Fits up to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3861S at DoorwaysPlus.com to match your facility's architectural aesthetic:

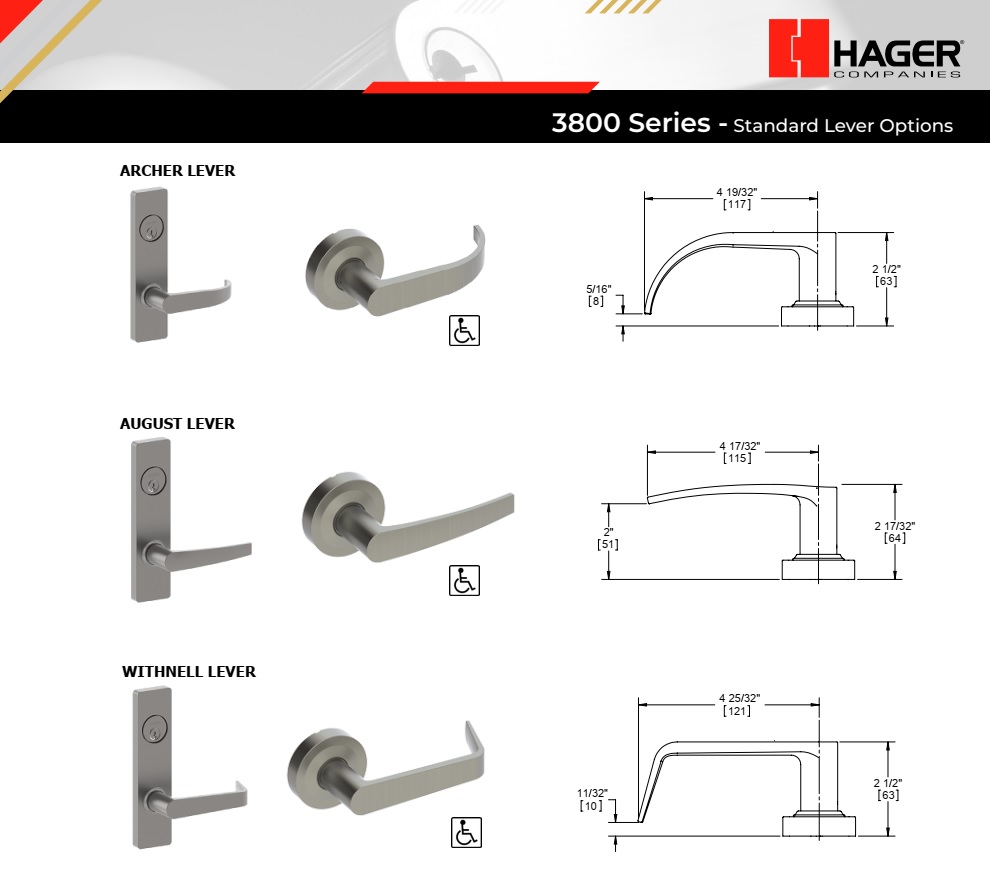

- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Cylinder Options: Conventional Schlage C Keyway standard; compatible with SFIC for high-security key control.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Cylinder Options | SCC - Schlage C Keyway or Less Cylinder |
| Brand | Hager |
| ANSI Mortise Lock Function | F09 - Public (dbl cyl) |
| Series | Hager - 3800 Series |
