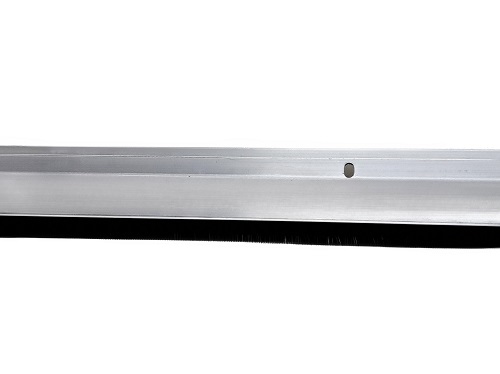

Hager 770SAV 3' Sill Sweep with Integrated Rain Drip & Nylon Brush
The Hager 770SAV is a multi-functional commercial door sweep designed to provide maximum protection for exterior entryways. This specialized hardware combines a high-density nylon brush seal with an integrated rain drip guard, creating a dual-action barrier. While the brush seals the gap at the threshold to block drafts and pests, the rain drip shield deflects water away from the bottom of the door opening, preventing moisture from seeping under the door during heavy rain or snow.
Dual-Action Weatherproofing and Life Safety
The Hager 770SAV is engineered for high-performance environmental control and safety compliance. The black nylon brush insert is designed to remain permanently flexible, ensuring it won't become brittle in freezing temperatures or lose its shape under high heat. This unit is UL Classified and fire-tested in accordance with UL10C, making it a code-compliant solution for Category J doors. Additionally, it meets ASTM E283-91 standards for air and smoke infiltration, providing a critical seal for fire-rated exterior openings.
Durable Mill Aluminum Construction
Constructed from high-quality extruded mill finish aluminum, the 770SAV is built for long-term durability in high-traffic commercial settings. The 3-foot length is ideal for standard commercial doors and can be field-trimmed for a precision fit. The housing features slotted screw holes, allowing for easy vertical adjustment to ensure the brush maintains constant contact with the threshold or floor surface.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 770SAV |
| Length | 3 Feet (36 Inches) |
| Housing Material | Extruded Mill Finish Aluminum |
| Seal Type | Black Nylon Brush |
| Special Feature | Integrated Rain Drip Guard |
| Fire Rating | UL10C Classified (Category J) |
| Smoke/Air Standards | ASTM E283-91 |
| Adjustment Type | Slotted Holes for Precision Fit |
| Fasteners | Zinc Plated #6 x 5/8" Pan Head Steel Screws |
Key Product Highlights
- Moisture Defense: The rain drip projection is essential for doors exposed to the elements, shielding the sensitive gap at the bottom of the door.
- Flexible Nylon Bristles: Superior for use on uneven surfaces or transition thresholds where solid gaskets might snag or fail.
- Total Environmental Seal: Effectively blocks wind, light, dust, and insects from entering the facility.
- Secure Installation: Furnished with zinc-plated steel screws to ensure a permanent mount to wood or hollow metal doors.
| Length | 36 Inch or 48 Inch |
| Brand | Hager |
| Insert Material | Nylon Brush |
| Material Length | 1/2" |
| Housing Length | 1-3/8" |
| Housing Finish | Aluminum |
| Bottom Weatherseal Type | Sill Sweep w/ Rain Drip |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
