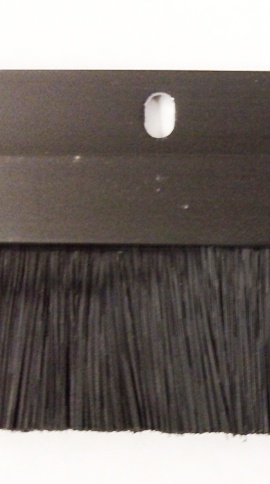

Hager 801S Dark Bronze Aluminum Sill Sweep with Nylon Brush
The Hager 801S in Dark Bronze Anodized (DBA) finish is a professional-grade commercial door sweep designed to provide an elite environmental seal at the threshold. Featuring a durable aluminum housing and a 1-inch black nylon brush, this surface-mounted sweep is the ideal solution for sealing the gap at the bottom of the door. The Dark Bronze finish provides a sophisticated, architectural look that seamlessly coordinates with storefront aluminum and dark-finished commercial hardware.
Permanent Flexibility and Superior Protection
The high-quality nylon brush insert is engineered to always remain flexible, ensuring it won't become brittle or crack even in high-traffic or extreme weather conditions. Unlike solid rubber gaskets, these flexible bristles conform perfectly to irregular floor surfaces or sloped thresholds, effectively blocking out drafts, dust, light, and pests without increasing the force required to open or close the door.
Precision Adjustment and Installation
Designed for a perfect fit, the Hager 801S features slotted mounting holes in the aluminum housing. This allows for precise vertical adjustment during installation to ensure a tight seal against the floor or threshold. Each unit is furnished with matching dark bronze plated #6 x 5/8" pan head steel screws for a clean, cohesive appearance.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 801S |
| Housing Material | Extruded Aluminum |
| Finish | Dark Bronze Anodized (DBA) |
| Insert Material | 1" Black Nylon Brush |
| Total Height | 1" (25 mm) |
| Adjustment Type | Slotted Holes for Precision Alignment |
| Fasteners | Plated #6 x 5/8" Pan Head Steel Screws (Included) |
| Fire Rating | UL Listed |
Important Installation & Maintenance Notes
- Ordering Information: Prices are per each piece.
- Custom Sizing: The aluminum housing can be field-trimmed to match your specific door width.
- Pro Tip: After trimming the sill sweep to the desired length, ensure you crimp the cut end of the metal channel. This secures the nylon bristles and prevents them from sliding out of the housing over time.
- Corrosion Resistance: The anodized finish and plated screws are designed to withstand moisture and heavy use in both interior and exterior applications.
| Length | 36 Inch or 48 Inch |
| Brand | Hager |
| Insert Material | Nylon Brush |
| Material Length | 1" |
| Housing Length | 1" |
| Housing Finish | Dark Bronze |
| Bottom Weatherseal Type | Sill Sweep |
| Fire Rated | Fire Rated |
