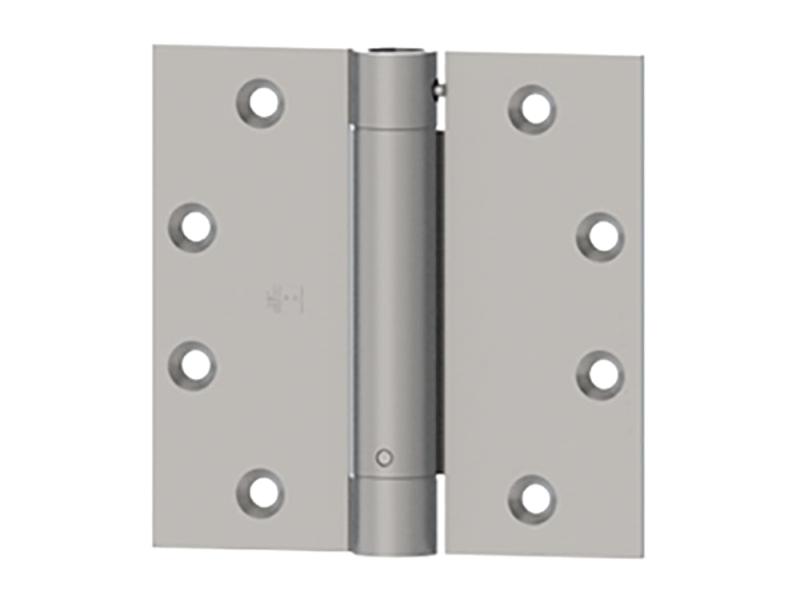

Hager EC1105 4-1/2" x 4-1/2" Single Acting Spring Hinge
The Hager EC1105 is a high-performance self-closing door hinge designed to automatically close doors in hotels, motels, institutions, and commercial buildings. Engineered for reliability and safety, this single acting spring hinge ensures that fire-rated doors return to the closed and latched position as required by law. As a critical component of commercial door hardware, it provides an efficient alternative to overhead door closers.
Fire Safety and Code Compliance
Compliance is the top priority in commercial construction. The Hager EC1105 meets ANSI K81071F standards and is tested for use on labeled fire doors. While NFPA 80 generally restricts architectural spring hinges to 3'0" x 7'0" openings, the Hager EC1105 has been tested and labeled for larger doors up to 4'0" x 8'0" when a minimum of three spring hinges are installed. This makes it a versatile solution for high-traffic fire-rated openings.
Engineered for Performance
Constructed from durable steel with steel components, these hinges feature a .134 gauge thickness and are designed specifically for 1-3/4" thick doors. To ensure proper operation and longevity of the opening, spring hinges must be used in conjunction with ball bearing hinges. Using plain bearing hinges with spring hinges is not recommended and may void compliance.
Technical Specifications
| Feature | Specification |
| Model Number | Hager EC1105 |
| Hinge Size | 4-1/2" x 4-1/2" (114mm x 114mm) |
| Hinge Type | Single Acting Spring Hinge |
| Material | Steel with Steel Components (Plated Finish) |
| Gauge (Thickness) | 0.134" |
| Door Thickness | Designed for 1-3/4" (44mm) |
| Standards | ANSI K81071F; NFPA 80 Compliant |
| Max Door Size | Tested up to 4'0" x 8'0" (with 3 springs) |
| Action | Self-Closing / Single Acting |
Recommended Hinge Configurations
To achieve the correct closing force based on door weight, follow these installation guidelines:
- Doors up to 70 lbs: 1 Spring Hinge (Use ECBB1100 ball bearing hinges for the remaining two).
- Doors up to 115 lbs: 2 Spring Hinges (Use ECBB1100 ball bearing hinge for the remaining one).
- Doors up to 150 lbs: 3 Spring Hinges.
Installation Hardware
Each Hager EC1105 hinge is furnished with a complete set of precision fasteners for a secure, permanent mount:
- All Machine Screws: 1/2" 12-24 FPHM (For metal frame/door applications)
- All Wood Screws: 1-1/4" x 12 FPHW (For wood door/frame applications)
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise, Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Steel |
| Hinge Corners | Square |
