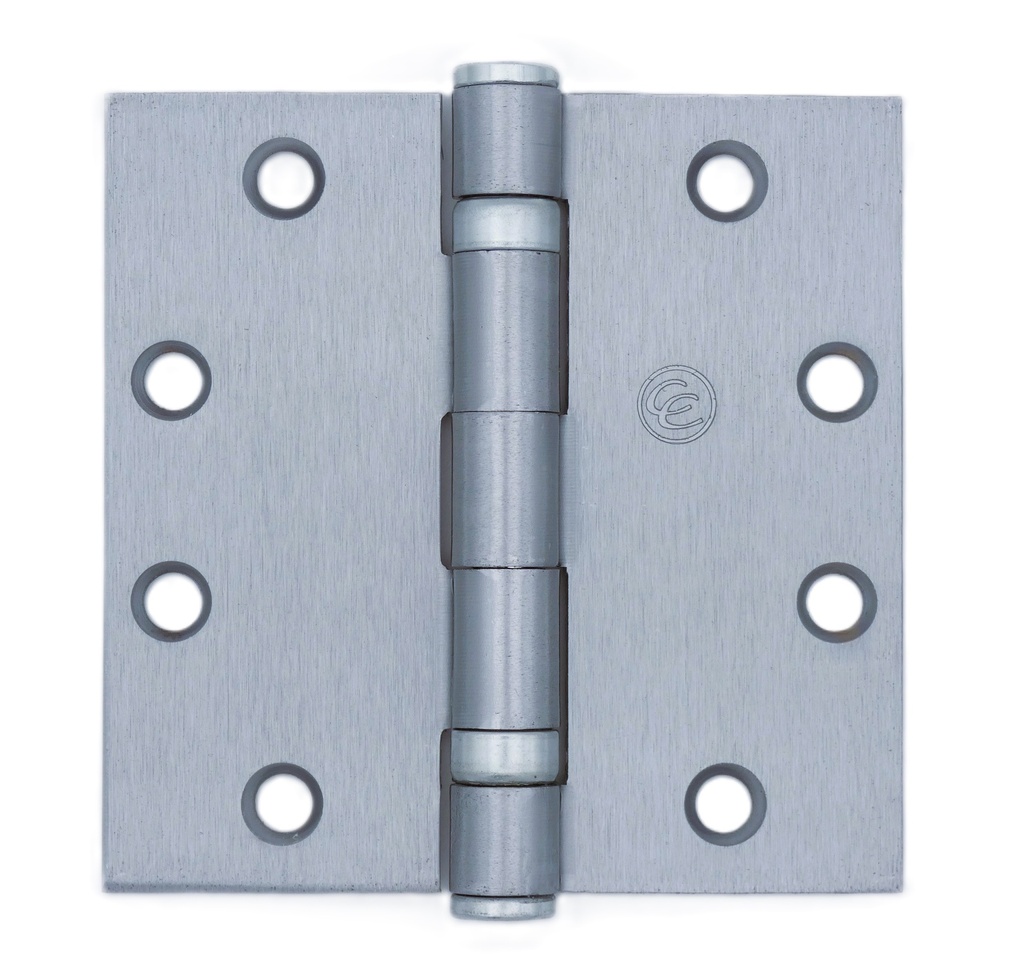

Hager Ecco ECBB1100 4 1/2 x 4 1/2 Full Mortise - Ball Bearing Hinge, Steel with Plated Finish
Enhance your door installation with the Hager Ecco ECBB1100 hinge, designed for precision and durability. Here’s everything you need to know:
Specifications:
- Brand: Hager
- Hinge Type: Full Mortise
- Size: 4.5" x 4.5"
- Gauge: 0.134 (Standard Weight: 0.119 to 0.146)
- Knuckles: Five
- Bearings: Ball Bearing
- Usage: Medium Duty
Material:
- Base Material: Steel
- Steel Pin: Non-rising removable pin with button tip and plug
- Bearing Type: Two ball bearings
Finish Options:
- General - US Finishes:
- US26D - Satin Chrome
- US26 - Polished Chrome
- US15 - Satin Nickel
- US3 - Polished Brass
- US4 - Satin Brass
- US10B - Oil Rubbed Bronze
- USP - Prime Painted
- Specific Finishes:
- 640 Oil Rubbed Bronze
- 652 Satin Chrome
Installation Details:
- Furnished standard with all wood screws (1 1/4" x 12 FPHW) and all machine screws (1/2" 12-24 FPHM)
- Designed for 1 3/4" door thickness, making it suitable for medium-weight doors or doors requiring low-frequency service.
Standards Compliance:
- ANSI A8112. Meets industry standards ANSI/BHMA A156.1, ensuring top-tier quality and reliability in performance. These standards, set by the American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA), confirm that the hinge is designed to meet rigorous benchmarks for durability and functionality. By adhering to these recognized standards, you can trust that this product delivers exceptional performance, making it a reliable choice for your needs.
Hinge Corners: Square
This hinge offers excellent performance for both residential and commercial applications, ensuring smooth operation and longevity. Whether you're upgrading existing doors or planning a new installation, the Hager Ecco ECBB1100 hinge delivers reliability and style, accommodating a variety of aesthetic preferences with its diverse finish options.
Features of the Hager Ecco ECBB1100 Hinge for Fire-Rated Door Assemblies
- Fire Safety Compliance: The ECBB1100 hinge is meticulously crafted to meet critical safety standards. It adheres to the NFPA80 guidelines, ensuring it is suitable for use on fire-rated door assemblies.
- Durability and Performance: Designed to withstand the harsh environments often associated with fire-rated applications, this hinge offers robust performance, maintaining functionality even under extreme conditions.
- Versatile Application: Whether you're dealing with residential or commercial installations, this hinge adapts seamlessly to various settings, providing the necessary support and security for fire-rated doors.
- Reliable Construction: Constructed from high-quality materials, this hinge is built to last, offering long-term reliability and peace of mind in any fire-rated setup.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
