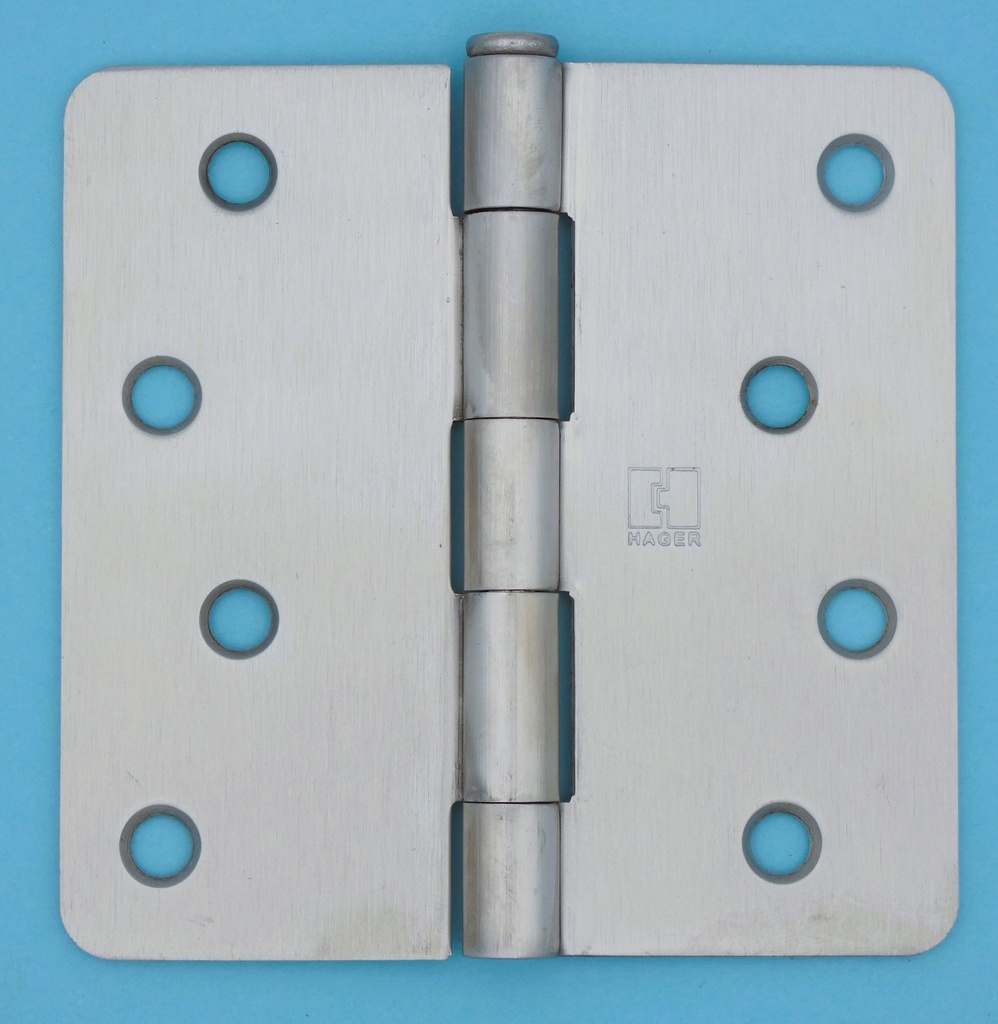

Hager RC1541 4" x 4" Non-Ferrous Hinge with 1/4" Radius Corners
The Hager RC1541 is a premium residential plain bearing hinge designed specifically for high-moisture and coastal environments. Featuring 1/4" radius rounded corners, this hinge is the industry standard for modern residential door preps. Crafted from non-ferrous materials, the RC1541 is guaranteed not to rust, making it the perfect choice for bathrooms, laundry rooms, and homes in salt-air regions.
Superior Corrosion Resistance
Unlike standard steel hinges that eventually pit and rust, the Hager RC1541 is constructed from solid brass or stainless steel. This non-ferrous build ensures that your hardware maintains its structural integrity and beautiful finish for the life of the home. Whether you choose the warm tones of US10B Oil Rubbed Bronze or the sleek, modern look of US32D Satin Stainless Steel, you are investing in hardware that is impervious to oxidation.
Engineered for Modern Residential Preps
With a .085 metal gauge and a 4-inch profile, this hinge fits standard residential door specifications perfectly. The 1/4" radius corners are designed to match common router-cut door and frame mortises, ensuring a seamless and professional installation. To maintain a quiet, smooth swing, Hager recommends lubricating the hinges with lithium grease during or after installation, as residential hinges are provided unlubricated from the factory.
Technical Specifications
| Feature | Specification |
| Model Number | Hager RC1541 |
| Dimensions | 4.0" x 4.0" (102mm x 102mm) |
| Hinge Type | Plain Bearing |
| Corner Radius | 1/4" (6.35mm) Radius Corners |
| Material Options | Solid Brass or Stainless Steel (Non-Ferrous) |
| Gauge (Thickness) | 0.085" (Residential Weight) |
| Available Finishes | US3, US10B (Oil Rubbed Bronze), US15, US32D |
| Packaging | 2 Hinges per box (Pricing is Per Hinge) |
Installation and Custom Options
- Fasteners: Furnished standard with matching 3/4" x 9 FH wood screws. Machine screws are available for an additional price for metal frame applications.
- Lubrication: For the best performance, apply lithium grease to the pin and knuckles during installation to prevent friction and noise.
- Special Quotes: We can provide quotes for 3.5" x 3.5" sizes or the mirror-like US32 Polished Stainless Steel finish upon request.
How to tell the difference between Residential Hinge and Commercial Hinge
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US15 - Satin Nickel or US3 - Polished Brass or US10R - Antique Bronze |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | 1/4" Radius |
