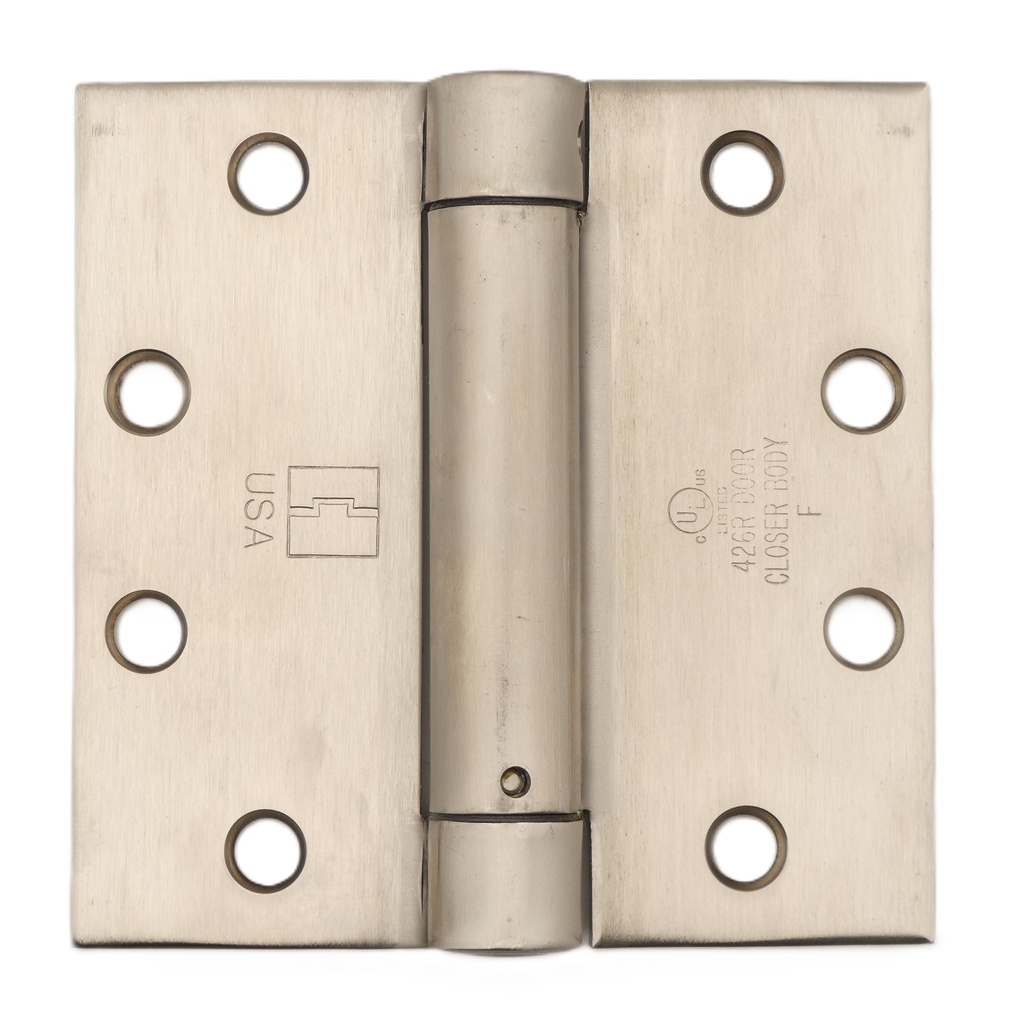

Hager 1150 4-1/2" x 4-1/2" Stainless Steel Single Acting Spring Hinge
The Hager 1150 is a premium stainless steel self-closing hinge designed for automatic door closure in demanding environments. Manufactured from high-grade stainless steel with matching stainless steel internal components, this hinge is the ideal solution for coastal areas, medical facilities, laboratories, and food processing plants where corrosion resistance is paramount. As a single acting spring hinge, it provides the reliable closing force required to meet strict building codes while maintaining a clean, professional aesthetic.
Compliance, Fire Safety, and NFPA 80 Standards
Meeting life-safety codes is critical for commercial openings. The Hager 1150 meets ANSI K51071F standards and is approved for use on labeled fire doors in hotels, motels, and institutional buildings. Per NFPA 80 regulations, self-closing hinges ensure that fire doors return to a latched position to maintain the integrity of fire barriers. These hinges are approved for use on 4' x 8' labeled doors when a minimum of three spring hinges are installed, ensuring your facility remains compliant and secure.
Heavy-Duty Corrosion Resistance
Unlike standard steel spring hinges, the Hager 1150 is built entirely from non-ferrous stainless steel. This ensures that the internal spring mechanism and the hinge leaves remain functional and rust-free even in high-moisture or salt-air environments. It is specifically designed for 1-3/4" thick doors and provides a maintenance-free alternative to surface-mounted door closers.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 1150 |
| Dimensions | 4-1/2" x 4-1/2" (114mm x 114mm) |
| Hinge Type | Single Acting Spring Hinge |
| Material | Stainless Steel with Stainless Steel Components |
| Gauge (Thickness) | 0.134" |
| Door Thickness | Optimized for 1-3/4" (44mm) |
| Standards | ANSI K51071F; NFPA 80 Compliant |
| Action | Self-Closing / Single Acting |
| Environment | Corrosive / High-Moisture / Sanitary |
Recommended Hinge Configurations
To ensure proper closing speed and force, Hager recommends the following configurations based on door weight:
- Up to 70 lbs: 1 Spring Hinge (Use BB1191 stainless steel ball bearing hinges for the remaining two).
- 70 to 115 lbs: 2 Spring Hinges (Use BB1191 stainless steel ball bearing hinge for the remaining one).
- 115 to 150 lbs: 3 Spring Hinges.
Installation and Hardware
The Hager 1150 is furnished with a complete set of matching stainless steel fasteners to prevent galvanic corrosion and ensure a permanent mount:
- All Stainless Machine Screws: 1/2" 12-24 FPHM (For metal frame/door)
- All Stainless Wood Screws: 1-1/4" x 12 FPHW (For wood door/frame)
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise, Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
