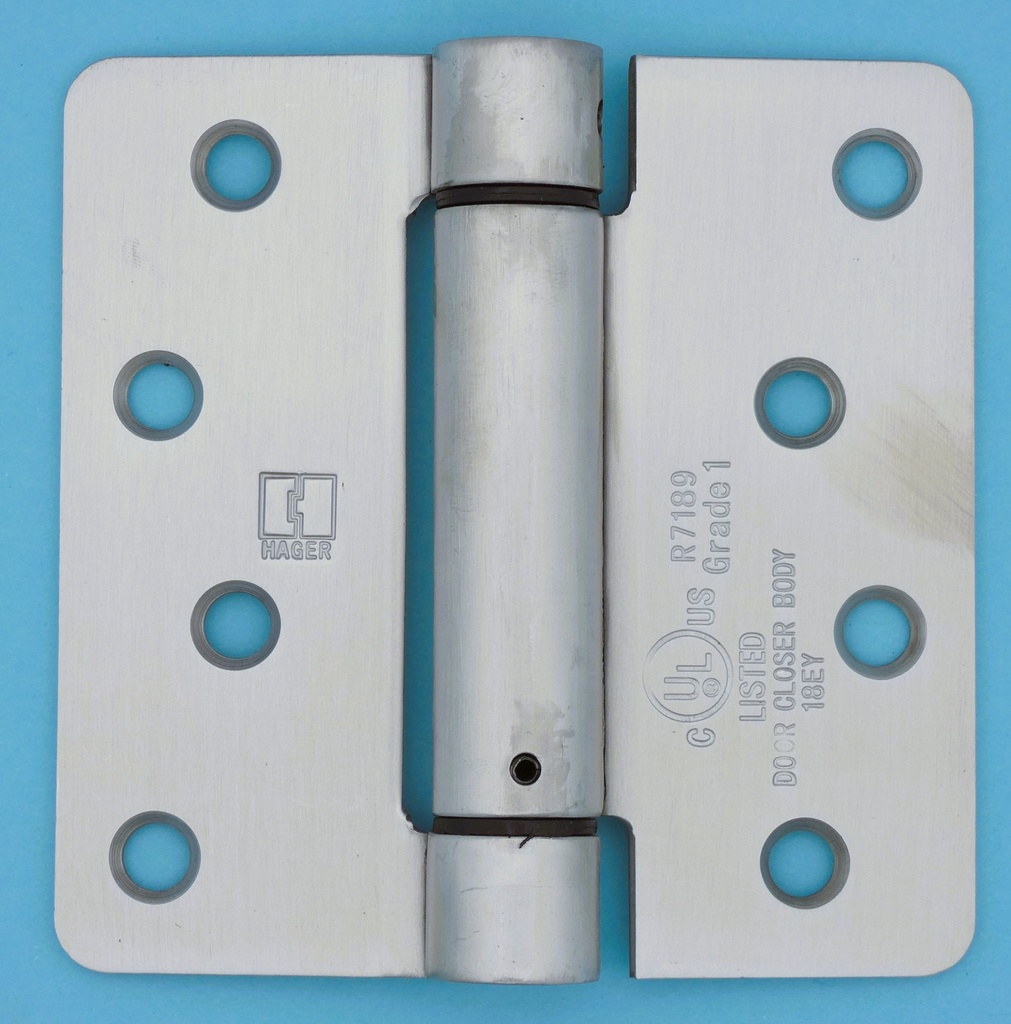

Hager 1761 4" x 4" Stainless Steel Spring Hinge | 1/4" Radius
The Hager 1761 is a premium residential weight spring hinge designed for automatic door closure in high-moisture and coastal environments. Crafted from non-ferrous stainless steel with matching internal components, this hinge provides a durable, rust-proof solution for interior and exterior doors. Featuring 1/4" radius rounded corners, it is engineered to fit modern residential door preps seamlessly, offering a clean aesthetic and reliable performance.
Corrosion-Resistant Self-Closing Technology
Designed specifically for residential applications, the Hager 1761 meets ANSI K51071F standards for quality and durability. The single acting spring mechanism ensures that doors return to a latched position, making it an ideal choice for garage-to-house entries or patio doors where energy efficiency and fire safety are concerns. The US32D Satin Stainless Steel finish is not just a surface coating; the entire body is made of stainless steel, ensuring it will never rust, pit, or corrode.
Installation and Hardware Compatibility
For optimal closing force, Hager recommends using all spring hinges or a combination of spring hinges and ball bearing hinges—do not use plain bearing hinges with this product. Please note that screw hole patterns can vary significantly between manufacturers. If you are replacing existing hardware, verify your hole locations against the Hager template to ensure a perfect match.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 1761 |
| Dimensions | 4.0" x 4.0" (102mm x 102mm) |
| Hinge Type | Single Acting Spring Hinge |
| Corner Radius | 1/4" (6.35mm) Radius Corners |
| Material | Stainless Steel with Stainless Steel Components |
| Gauge (Thickness) | 0.106" (Residential Weight) |
| Standards | ANSI K51071F |
| Packaging | 2 hinges per box (Pricing is Per Hinge) |
| Fasteners | Stainless Steel Wood Screws (3/4 x 9 FH) Included |
Usage and Loading Recommendations
- Automatic Closing: Ideal for light-weight residential doors requiring self-closing functionality.
- Environmental Factors: Factors such as strong winds, carpet drag, or heavy weatherstripping may require the installation of additional spring hinges to ensure the door latches properly.
- Versatility: Tension is adjustable, and you may find that full tension is not required on all hinges in the set for proper operation.
- Residential vs. Commercial: This is a residential weight hinge. For high-traffic commercial or institutional openings, a heavier gauge (.134 or higher) commercial spring hinge is recommended.
How to tell the difference between Residential Hinge and a Commercial Hinge
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise, Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Stainless Steel |
| Hinge Corners | 1/4" Radius |
