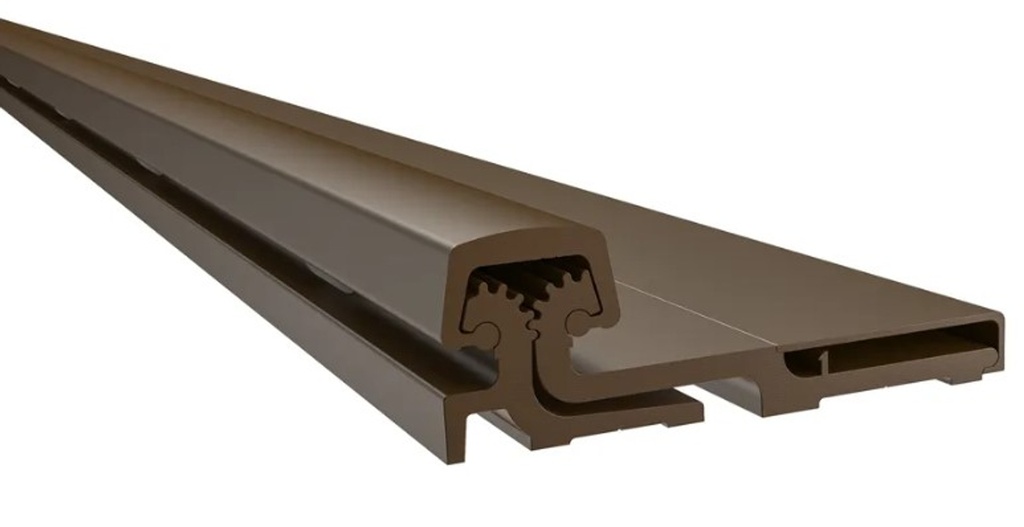

Pemko DFS83 Full-Surface Standard Duty Continuous Geared Hinge - 83" Dark Bronze
The Pemko DFS83 is a professional-grade Standard Duty Continuous Geared Hinge specifically engineered for retrofit work. Unlike mortise hinges that require deep frame pockets, this full-surface unit is applied directly to the exposed faces of the door and frame. The 83" length is the industry standard for 7'0" doors, providing a seamless, full-height gear mechanism that eliminates the binding and sagging common with traditional butt hinges. Finished in a sophisticated Dark Bronze Anodized Aluminum, it offers a high-end look while reinforcing the entire opening.
High-Performance & Security Features
- Uniform Load Distribution: Distributes door weight evenly along the full height of the frame, effectively solving "door sag" and extending the life of the opening.
- Superior Security: The full-length channel cap seals the gap between the door and frame, acting as a powerful deterrent against prying and tampering on exterior security entrances.
- Hassle-Free Retrofit: Designed to be applied over existing frame preps. No special hinge reinforcements are required, making it compatible with standard hollow metal and wood door manufacturers.
- Life Safety & Fire Certified: This hinge is UL 10C Positive Pressure Fire Rated and ANSI/BHMA A156.26 Certified, ensuring your facility meets all commercial building codes.
- Self-Tapping Installation: Furnished with No. 12-24 x 7/16" thread-forming screws, allowing for a fast installation into metal frames without the need for manual tapping.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: DFS83
- Length: 83" (For standard 7'0" door height)
- Weight Capacity: Standard Duty — supports doors up to 280 lbs
- Finish: Dark Bronze Anodized Aluminum (D)
- Bearing Spacing: 6" between bearing centers for smooth, consistent operation.
- Mounting Type: Full-Surface (Applied to exposed surfaces).
| Brand | Pemko |
| Length | 83 Inch |
| Hinge Type | Continuous Hinge, Full Surface |
| General - US Finishes | 313 - Dark Bronze Anodized |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Standard Duty |
Pemko CFS Continuous Hinge Installation Instructions
Download
