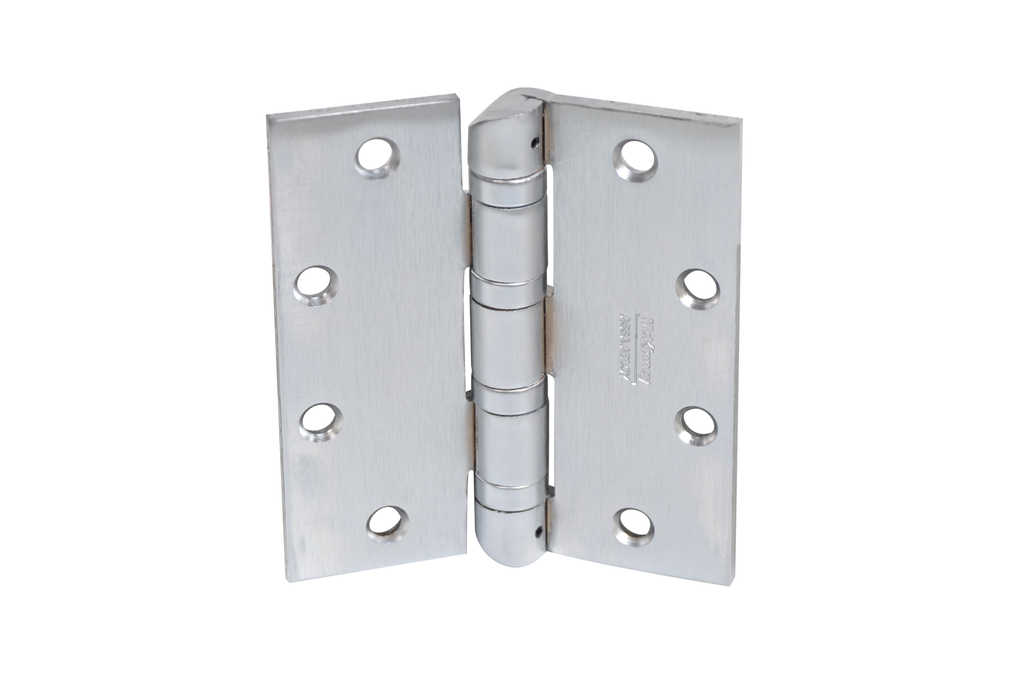

McKinney HT4A3786 Heavy Weight Hospital Tip Hinge | 5" x 4-1/2" US26D Satin Chrome
The McKinney HT4A3786 is an industrial-strength heavy weight bearing hinge engineered for high-traffic commercial environments where safety, security, and extreme durability are required. Featuring a robust .190 gauge thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration in hospitals, psychiatric centers, and correctional facilities. Finished in US26D Satin Chrome, it offers a professional architectural aesthetic while meeting the most rigorous structural demands of heavy-duty doors.
Advanced Safety: Hospital Tip (HT) Technology
The Hospital Tip design is a critical safety innovation specifically tailored for institutional settings. It features a one-piece non-removable pin with sloped, tapered barrel ends.
- Ligature Resistance: The tapered tips help prevent the attachment of cords or foreign objects, providing a vital solution for commercial door security in sensitive patient-care environments.
- Inherent Security: By design, the hospital tip makes the pin virtually impossible to remove, acting as a built-in tamper-resistant feature against unauthorized door detachment.
- Hygienic Design: The sloped ends reduce dust accumulation and are easier to clean, supporting strict infection control protocols in clinical facilities.
Heavy-Duty Performance & Oil Impregnated Bearings
The TA Prefix identifies McKinney’s premium self-lubricating bearing system, essential for maintaining the integrity of heavy-weight openings.
- Extreme Weight Capacity: The .190 thickness (Heavy Weight) is specifically built to support oversized, lead-lined, or high-frequency fire doors.
- Self-Lubricating Bearings: One-piece, non-ferrous bearings ensure smooth, silent operation and offer superior resistance to clogging, corrosion, and premature hinge failure.
- Maintenance-Free Longevity: Acts as a permanent solution for door edge reinforcement, significantly reducing long-term maintenance costs in busy public buildings.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: HT4A3786
- Dimensions: 5" Height x 4-1/2" Width (Heavy Weight .190 Gauge)
- Finish: US26D (626) Satin Chrome Plated
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8111.
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM). For high-frequency metal frames, securing the mount with thru bolts is highly recommended.
- Installation: Constructed with a template screw hole pattern for precision alignment.
Why Choose the McKinney HT4A3786?
The McKinney HT4A3786 is the definitive professional choice for institutional projects where high-traffic durability and a safety-first design are non-negotiable. Whether you are performing a solution for door surface repair or outfitting a new high-security medical wing, its combination of heavy-weight steel, self-lubricating bearings, and hospital-tip security ensures your openings remain safe and functional for decades.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | HT (Hospital Tip), Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
