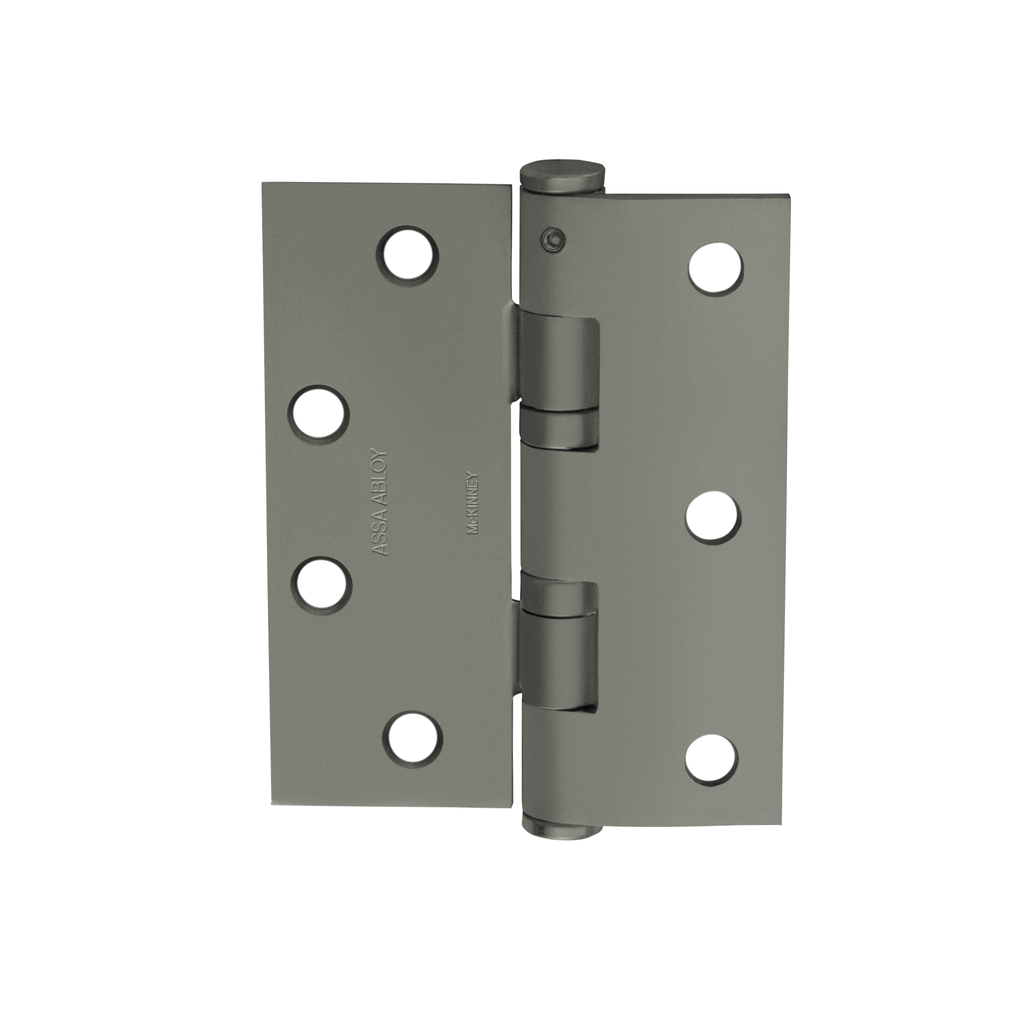

McKinney TA2774 Half Mortise Bearing Hinge | 4-1/2" USP Steel
The McKinney TA2774 is a high-performance half mortise bearing hinge engineered for medium traffic and average frequency commercial applications. This specialized hinge is a premier solution for door restoration in facilities like schools, hospitals, and public buildings. Its unique configuration allows the jamb leaf to be surface-applied to channel iron jambs, while the door leaf is mortised directly into the edge of the door, providing a robust solution for door edge reinforcement.
Advanced Bearing Technology
The TA Prefix signifies the use of Oil Impregnated Bearings, which are a hallmark of McKinney’s architectural excellence.
- Self-Lubricating: One-piece, non-ferrous bearings provide a continuous self-lubricating action for silent and smooth operation.
- Extreme Durability: Engineered to resist clogging and corrosion, these bearings prevent common hinge failures even in demanding environments.
- Maintenance-Free: The oil-impregnated design ensures long-lasting wear without the need for manual greasing, acting as a permanent solution for commercial door security.
Security and Versatility
- NRP (Non-Removable Pin) as Standard: The pin is secured by an NRP set screw, preventing unauthorized removal from the outside. This feature also allows the hinge to be fully reversible for left- or right-hand installations.
- Channel Iron Jamb Compatible: Specifically designed for applications where the door is hung on a channel iron jamb, offering a specialized solution for door surface repair and mounting challenges.
- Heavy-Duty Fasteners: Furnished with high-quality 1/2" x 12-24 FPHM machine screws for a secure, tamper-resistant installation.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2774
- Dimensions: 4-1/2" Height
- Hinge Type: 5 Knuckle, Half Mortise
- ANSI Number: A8212 (Steel)
- Finish: USP (Primed for Painting)
- Door Weight: Suitable for medium weight wood or metal doors. For high-security applications, using thru bolts on the door leaf can further enhance the mount's integrity.
Why Choose the McKinney TA2774?
The McKinney TA2774 is the definitive choice for architectural professionals who require a versatile and secure solution for door security. Whether you are outfitting a new public facility or maintaining an existing one, the combination of oil-impregnated bearings and a half mortise design ensures a high-intent architectural component that stands the test of time.
| General - US Finishes | USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Half Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
