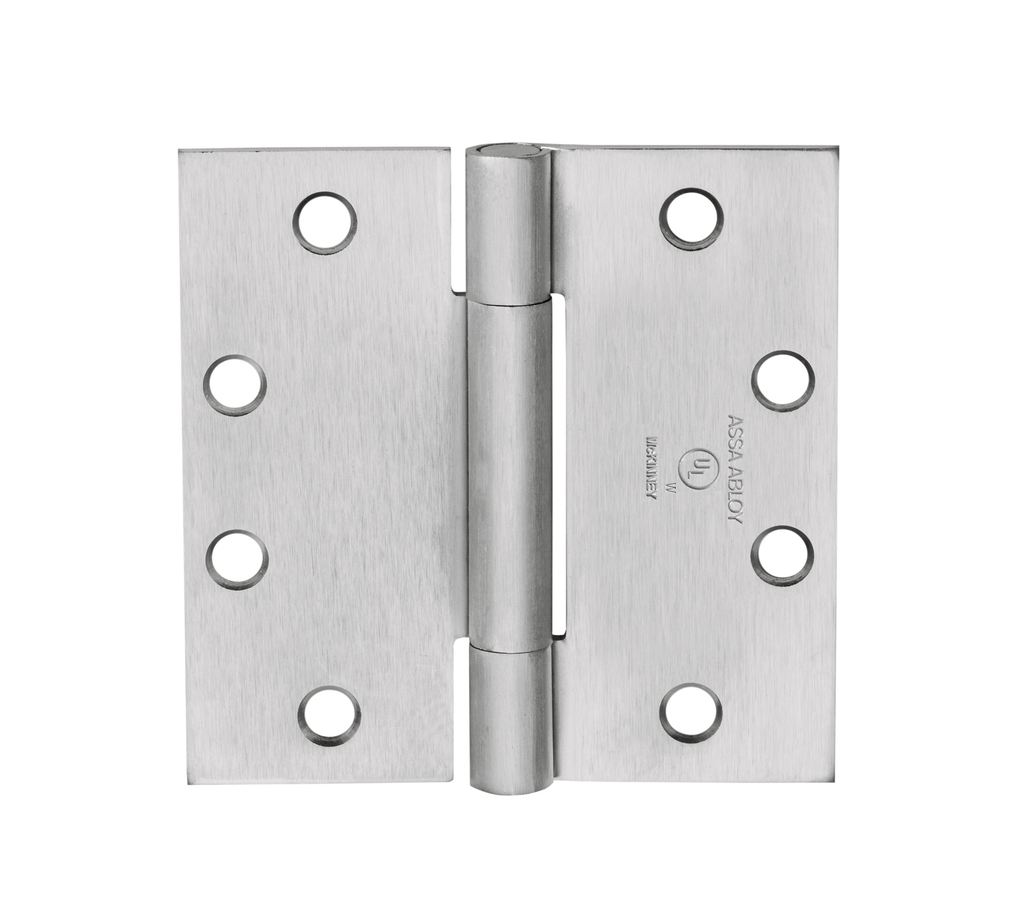

McKinney HTA314 Hospital Tip Hinge | 4-1/2" x 4" US32D Satin Stainless Steel
The McKinney HTA314 Hospital Tip Hinge is a premium architectural solution designed for the specialized needs of healthcare facilities, laboratories, and high-security institutions. Combining a modern 3-knuckle profile with a safety-focused Hospital Tip (HT) design, this hinge features tapered ends that prevent the attachment of ligatures or cords. It serves as a vital solution for door restoration in hospitals and clinics where patient safety, infection control, and durability are the highest priorities.
Crafted from solid Stainless Steel (US32D), the HTA314 offers unparalleled resistance to corrosive cleaning agents and heavy physical wear. The concealed vertical and lateral thrust twin anti-friction bearings ensure a lifetime of smooth, silent operation while eliminating the visible bearing lines found on traditional hinges. This hinge is an essential component for any solution for door surface repair, providing a clean, snag-free architectural finish that complies with the strictest medical and life-safety standards.
Key Features & Performance
- Ligature-Resistant Hospital Tip: The tapered ends of the hinge barrel provide a critical solution for commercial door security by preventing the hinge from being used as a hanging point in behavioral health or patient rooms.
- Corrosion-Resistant US32D Finish: Constructed from high-grade stainless steel, this hinge is an ideal solution for door restoration in sterile, wet, or highly corrosive environments.
- Concealed Anti-Friction Bearings: Twin bearings are hidden within the knuckles to manage thrust loads while preventing the accumulation of dust and bacteria.
- Non-Rising Stainless Steel Pin: Features a flush pin design that provides a clean profile and acts as a permanent solution for door edge reinforcement for out-swinging corridor doors.
- Commercial Grade Durability: Designed for average-traffic openings with a .134 gauge thickness, this hinge maintains its structural integrity and polished appearance in high-use institutional settings.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: HTA314
- Dimensions: 4-1/2" Height x 4" Width (Full Mortise)
- Finish: US32D (630) Satin Stainless Steel
- Pin Style: Hospital Tip (HT) with Tapered Ends
- Bearing Type: Concealed Vertical & Lateral Thrust (TA Prefix)
- Thickness: .134 Standard Weight
- ANSI Number: A5112
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney HTA314?
The McKinney HTA314 is the professional’s choice for healthcare projects where aesthetics and patient safety must coexist. While standard hinges have flat tips that present potential hazards, the hospital tip technology provides a smooth, sloping profile that safeguards occupants. It offers a permanent and cost-effective solution for door security, delivering the industrial-grade reliability and polished, high-end appearance required for modern medical and institutional spaces.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | HT (Hospital Tip), Concealed Bearing |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
