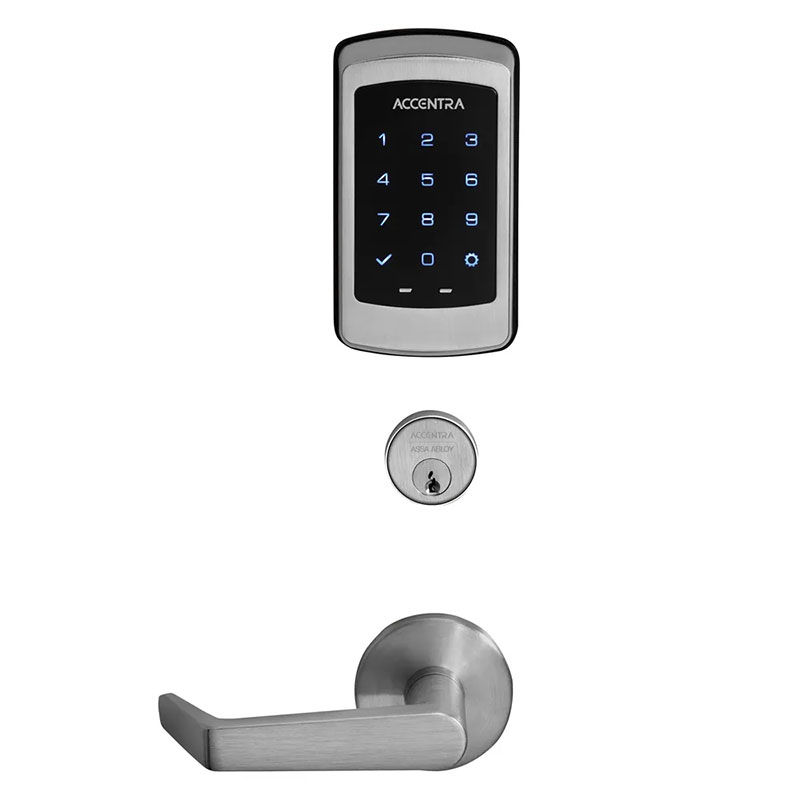

Accentra NexTouch AU-NTM628-NR US26D Touchscreen Mortise Deadbolt
The Accentra NexTouch Generation 3 mortise lock is the ultimate solution for securing high-traffic commercial openings. The AU-NTM628-NR features a sleek touchscreen interface and a heavy-duty deadbolt for enhanced perimeter protection. Certified ANSI/BHMA Grade 1, this lock is built to withstand the most demanding institutional environments while offering the convenience of a keyless system. With its modular design and 3-hour fire rating, the NexTouch provides a future-proof security architecture that grows with your facility.
Secure & Intuitive Operation
- Multi-Function Deadbolt: Features a mechanical deadbolt operated by a key outside or a thumbturn inside. When the deadbolt is projected, the outside lever is automatically locked for maximum security.
- Anti-Panic Egress: Engineered for safety; operating the inside lever automatically retracts both the latchbolt and deadbolt simultaneously for immediate exit.
- Capacitive Touchscreen: The high-sensitivity interface supports up to 500 unique user codes and features voice-guided programming in three languages (English, Spanish, and French).
- Grade 1 Durability: Heavy-duty sectional mortise design certified to ANSI/BHMA Series 1000, Grade 1 standards for millions of operational cycles.
Built for Reliability
- Emergency Power Backup: Features a 9V battery jump-start on the exterior keypad to prevent lockouts if the internal batteries fail.
- Fire & Weather Rated: UL/cUL listed for 3-hour fire doors and gasket-sealed to operate in extreme climates from -40°F to +140°F.
- Flexible Keying: Accepts a wide range of cylinders, including conventional, SFIC, and high-security cores (1-1/8" length) to fit your existing key hierarchy.
Technical Specifications
- Finish: US26D Satin Chrome (Standard Stock Finish).
- Backset: 2-3/4" (70mm) standard.
- Door Thickness: 1-3/4" (44mm) standard.
- Power Source: 4 AA alkaline batteries (included) with optional hardwire 9VDC input.
- Handing: Field reversible for easy installation.
| General - US Finishes | 626 - Satin Chrome |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - NexTouch |
| ANSI Mortise Lock Function | Keypad |
| Trim Design | AU - Augusta Lever |
| Lock Type | Mortise Lock |
ACCENTRA nexTouch Mortise Keypad Locks NTM610, NTM620, NTM630, NTM640 Installation and Programming Instructions.pdf
Download
ACCENTRA nexTouch NTM610, NTM615, NTM620, NTM625, NTM630, NTM635, NTM640, and NTM645 Mortise Locks Thru Bolted Sectional Lever Trim Wood and H.M. Door Template.pdf
Download
Accentra NexTouch Catalog.pdf
Download
