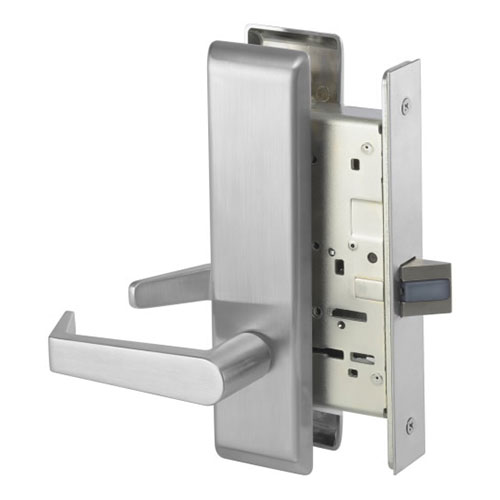

Accentra AUCN 8801FL Mortise Lockset – Passage Function
Function Info:
- Trim from either side retracts latchbolt at all times
- ANSI No. F01
The Accentra AUCN 8801FL Mortise Lockset (formerly Yale) is a heavy-duty, commercial-grade hardware solution designed for high-traffic areas where locking is not required. Featuring the AU Augusta Lever with the CN Escutcheon Trim in a professional 626/US26D Satin Chrome finish, this lockset combines architectural elegance with ANSI/BHMA Grade 1 durability.
Ideal for hallways, storage closets, or interior office doors, the 8801 Passage Function provides smooth, reliable operation. As part of the Accentra 8800 Series, it is engineered to withstand the rigors of industrial environments while maintaining a clean, modern aesthetic on any door.
Functional Performance: Passage (8801)
- Unrestricted Access: The latchbolt is retracted by the lever from either side at all times.
- ANSI No. F01: This function is specifically designed for doors where security is not a priority, but durability is essential.
- Emergency Ready: Because it remains unlocked, it provides a clear path of travel for high-traffic thoroughfares.
Key Features & Certifications
- Grade 1 Strength: Certified to the highest industry standards, ensuring millions of cycles of trouble-free use in commercial buildings.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated door assemblies, providing peace of mind and code compliance.
- Vandal-Resistant Design: Features heavy-duty trim components designed to resist wear, damage, and intentional vandalism.
- Field Reversible: Furnished as Right Hand (RH) but easily re-handed in the field to accommodate any door swing without specialized tools.
- 10-Year Warranty: Backed by a premier mechanical warranty from Accentra, a leader in commercial door hardware.
Technical Specifications
| Feature | Specification |
| Model | Accentra (Yale) AUCN 8801FL |
| Function | 8801 Passage (ANSI F01) |

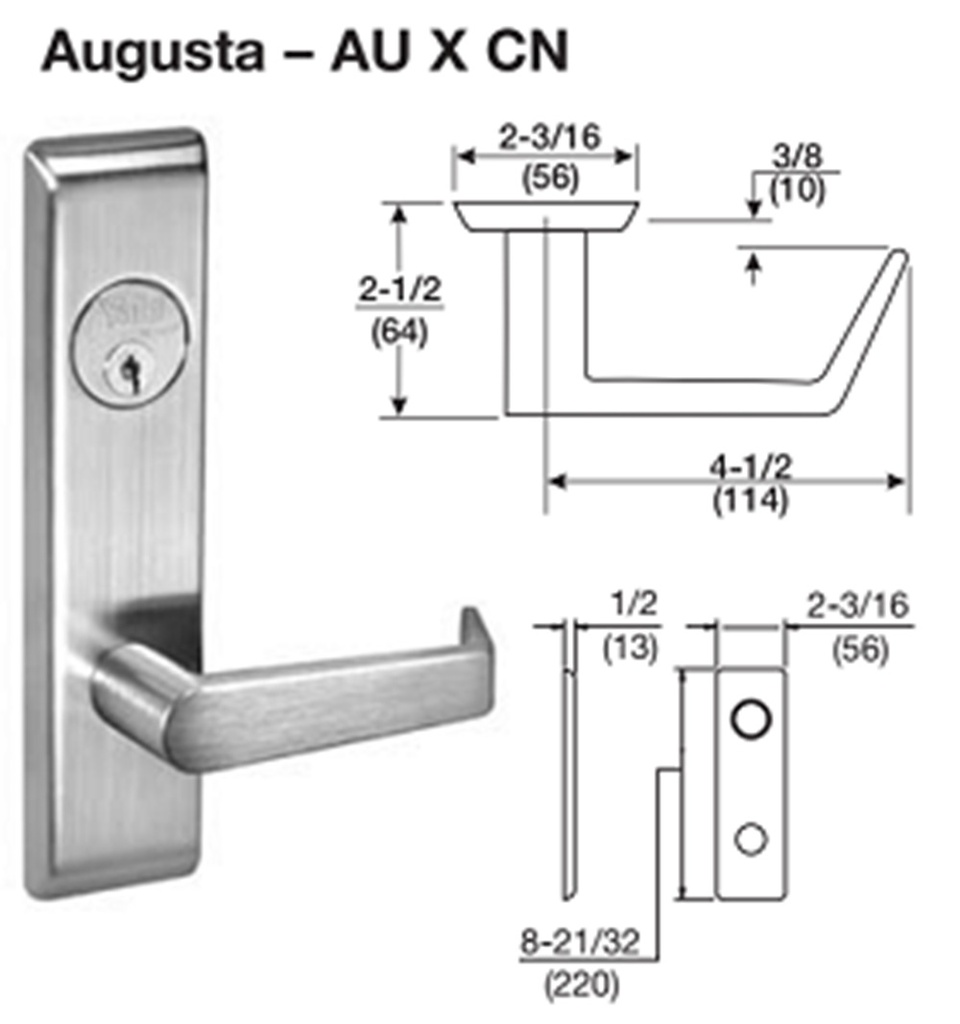

| Trim Design | Augusta Lever (AU) with CN Rose/Escutcheon |
| Finish | 626/US26D (Satin Chrome) |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Case Material | Wrought Steel, Zinc Dichromate |
| Hubs | 3/8" Solid Steel, Heat Treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F01 - Passage |
| Trim Design | AUCN |
| Series | Accentra - 8800 Series |
