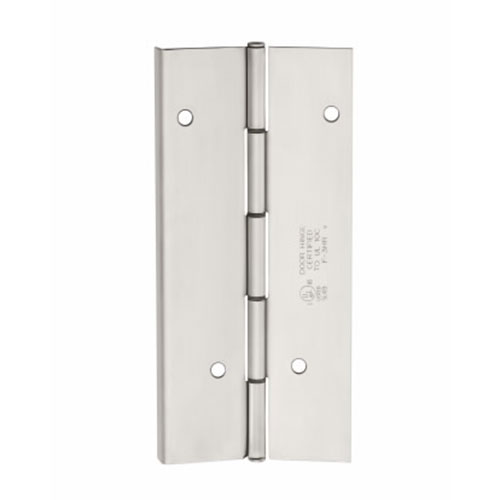

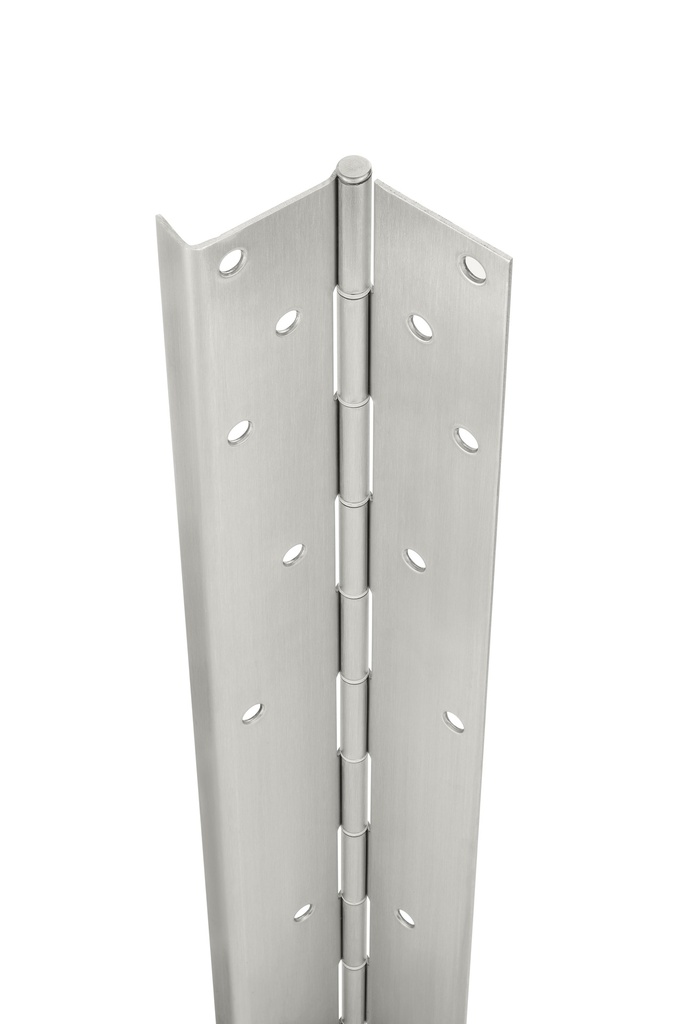

Markar HG315 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge
Markar HG315 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge
Markar HG315 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge
Featuring our unique edge guard, this economical hinge prevents objects being placed between the door and frame as well as protecting the door’s edge while supporting the door’s weight along the entire length of the jamb.
3/16" diameter stainless steel barrel type hinge pin (rod). Medical bearings. Stainless steel end pins
Heavy-duty 14 gauge 304 stainless steel, finished in US32D (630)
Fasteners concealed when door is closed. Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
Supports weights up to 600lbs. 4'0" maximum door width
For use on center hung lead lined doors
Exterior barrel diameter .438 (7/16")
ANSI/BHMA Standard A156.26 Grade 1
7/0 Height = 83-1/8" net length
8/0 Height = 95" net length
Fire Rating:
Classified in accordance with UL10C for positive pressure
20 minutes - wood doors
90 minutes - hollow metal and composite core wood fire doors
3 hours - hollow metal doors
| Continuous Hinge Height | 83 Inch (7/0 Dr) or 95 Inch (8/0 Dr) |
| Brand | Markar |
| Continuous Hinge Grade | Heavy Duty |
| Hinge Type | Continuous Hinge, Full Mortise |
| General - US Finishes | 630 - Satin Stainless Steel/ US32D |
| Base Material | Stainless Steel |
