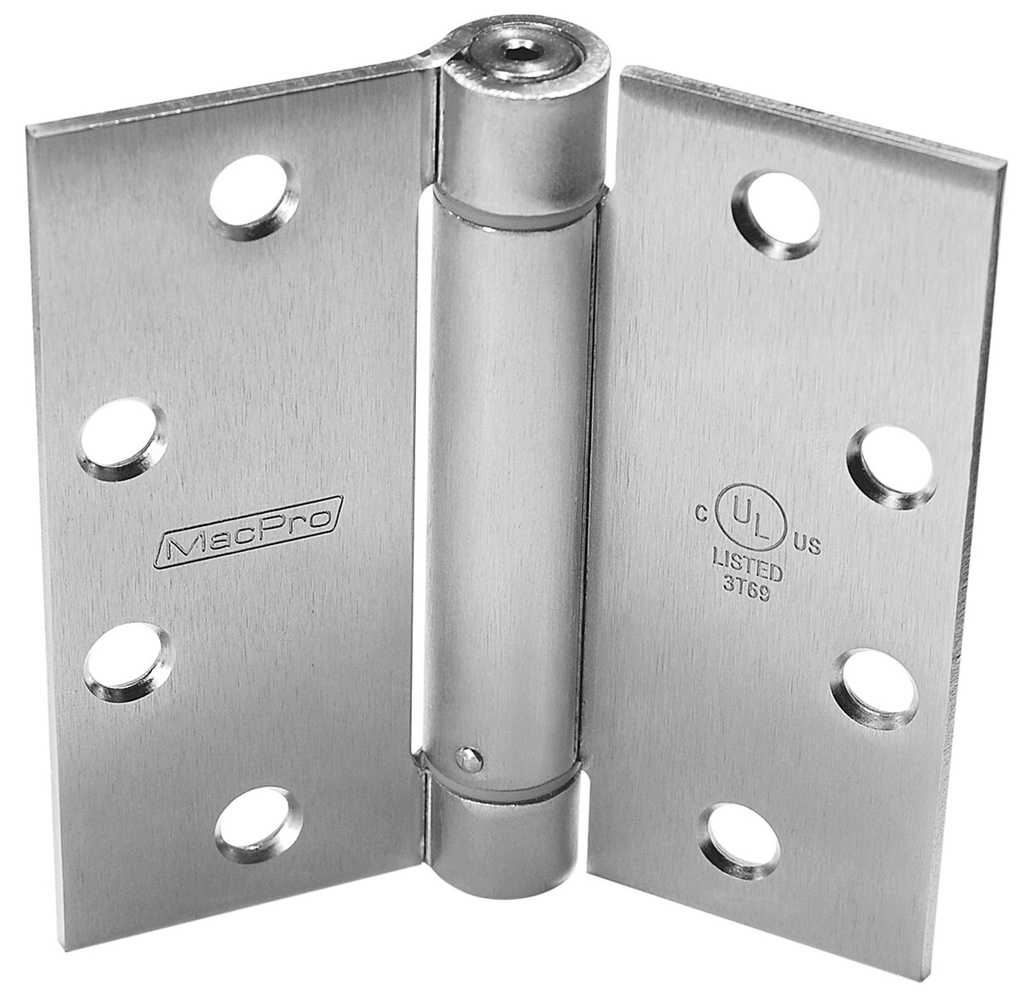

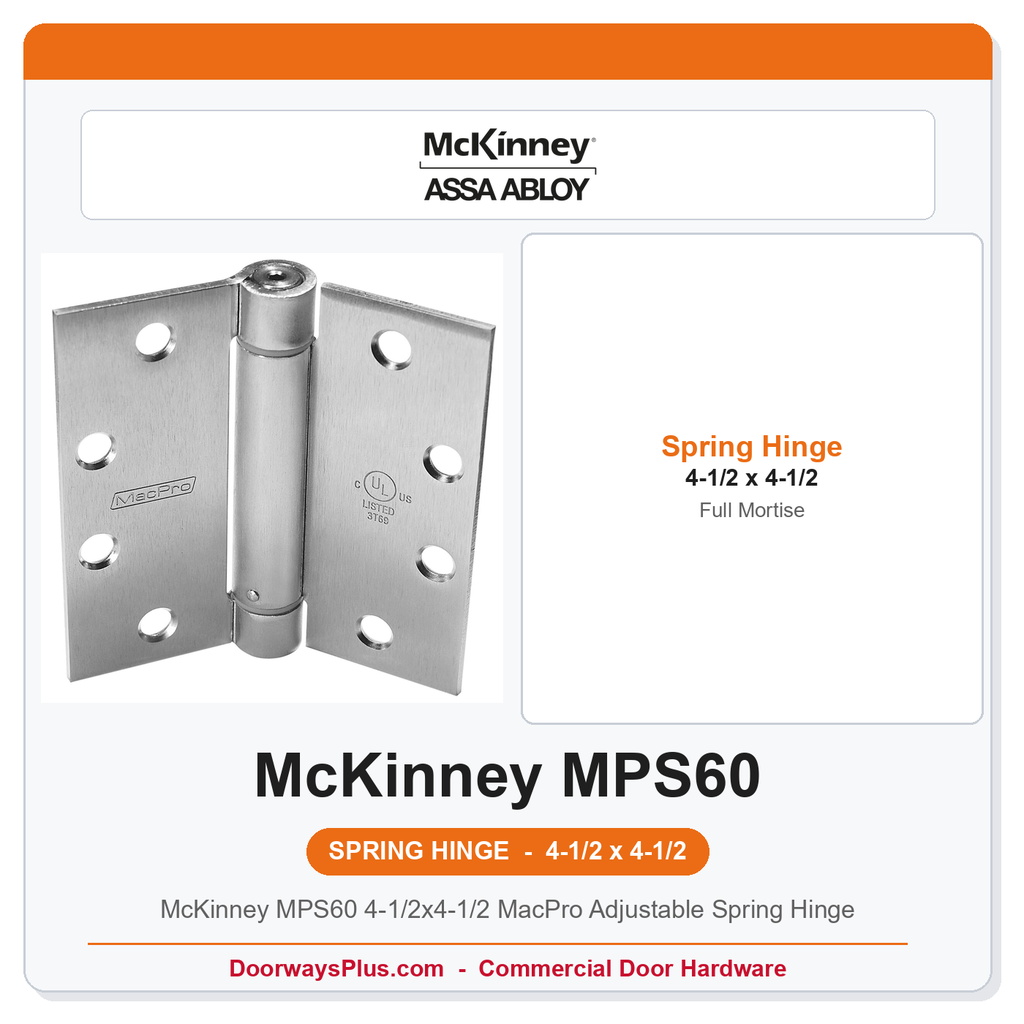

McKinney MPS60 4-1/2 x 4-1/2 MacPro Adjustable Spring Hinge — Full Mortise Self-Closing
The McKinney MPS60 is a full mortise, concealed-bearing, adjustable spring hinge engineered to deliver consistent self-closing performance on standard commercial and institutional doors. Part of McKinney's MacPro standard-weight steel hinge line, the MPS60 measures 4-1/2 inches by 4-1/2 inches and is constructed from 0.134-inch steel leaf stock — the precise gauge specified in the McKinney full-line catalog. The integrated spring mechanism is field-adjustable, allowing installers to dial in closing tension to suit door weight and frequency of use without removing the hinge from the door.
Institutional-Grade Features & Benefits
- Full Mortise Installation: Both hinge leaves are mortised flush into the door edge and frame, providing a clean, professional appearance and a secure mechanical connection that resists racking under high-cycle use.
- Concealed Bearing Construction: Internal bearings reduce pivot friction, promoting smooth, controlled door travel throughout the closing arc and extending the service life of the hinge under repeated daily use.
- Adjustable Spring Tension: The spring mechanism can be tuned in the field to increase or decrease closing force, giving facility managers and installers precise control without replacing hardware.
- Self-Closing Function: The built-in spring automatically returns the door to the closed position after each use — an essential feature wherever positive latching or controlled access is required.
- MacPro Standard-Weight Steel: McKinney's MacPro designation indicates a standard-weight steel construction suited to commercial-grade door applications demanding durability and dimensional consistency.
- 0.134-Inch Steel Leaf Thickness: The exact leaf gauge per the McKinney full-line catalog ensures compatibility with standard full-mortise prep specifications and reliable structural performance.
- 4-1/2 x 4-1/2 Inch Leaf Size: A widely accepted commercial hinge dimension compatible with standard door prep and commonly paired with hollow metal, wood, and aluminum door systems.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Model / Part Number | MPS60 |
| Part Type | Hinge — Full Mortise Adjustable Spring (Self-Closing) |
| Series | MacPro Standard-Weight Steel |
| Hinge Size | 4-1/2 in. x 4-1/2 in. |
| Leaf Thickness (Gauge) | 0.134 in. steel |
| Bearing Type | Concealed bearing |
| Spring Adjustment | Field-adjustable spring tension |
| Installation Type | Full mortise |
Documentation
| General - US Finishes | US26D - Satin Chrome or BSP - Black Suede Power Coat or US15 - Satin Nickel or US10BE - Oil Rub Bronze Equal or USP - Prime Painted |
| Brand | McKinney |
| Hinge Type | Spring Hinge |
| Hinge Mounting | Full Mortise |
| Door Handing | Field Reversible |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Corners | Square |
| Base Material | Steel |
| Part Type | Hinge |
