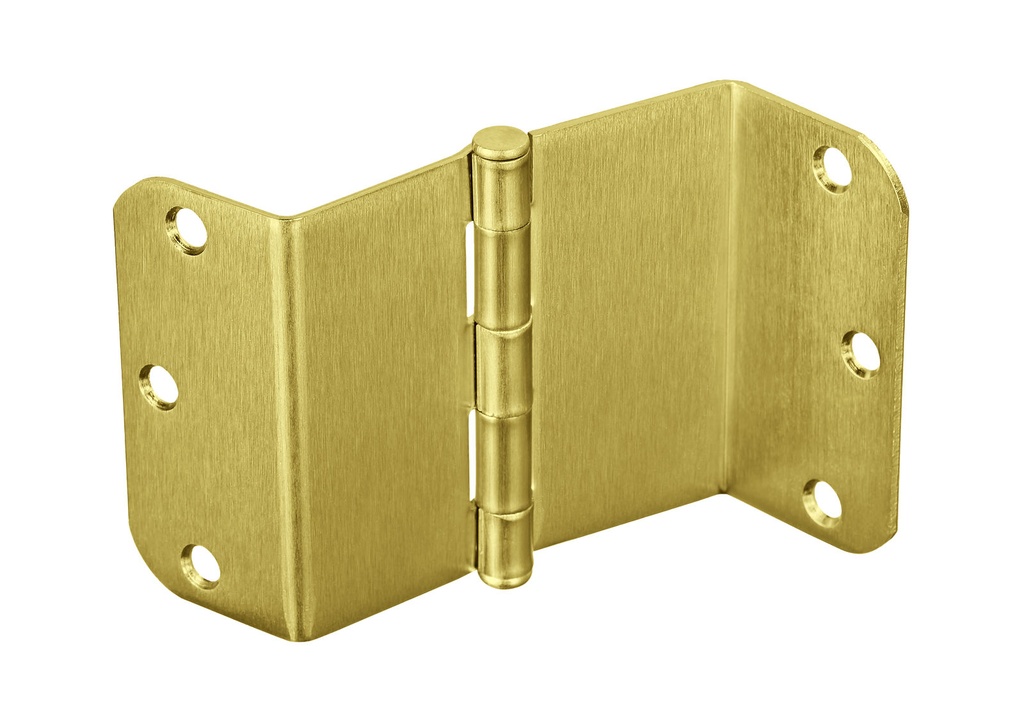

McKinney T2895 3-1/2 Residential Swing Clear Hinge — 1/4 Inch Round Corner
The McKinney T2895 is a residential-weight swing clear hinge featuring a 3-1/2 inch leaf size and 1/4 inch round corners. Swing clear hinges — also referred to as clearance hinges or wide-throw hinges — are engineered to swing the door completely free of the door frame when open, effectively recovering the full clear opening width. This is the defining advantage of a swing clear design over a standard butt hinge: the door panel itself no longer intrudes into the passage, maximizing usable clearance in doorways where every inch matters. The McKinney T2895 is well suited for residential and light commercial door applications where increased passage width is a priority.
Institutional Grade Features & Benefits
- Swing Clear Design: Pivots the door leaf completely clear of the door frame opening, recovering the full structural opening width rather than losing it to door thickness.
- Increased Accessible Clearance: A practical solution for doorways where additional passage width is needed — particularly relevant in retrofit or renovation projects where the rough opening cannot be widened.
- Residential Weight Rating: Engineered and sized for residential-grade doors and light commercial applications, providing reliable, long-term swing performance suited to the load demands of this category.
- 1/4 Inch Round Corner Profile: The 1/4 inch radius round corner mortise pattern is compatible with standard residential door prep templates, simplifying installation and ensuring a clean, professional fit against the door edge and jamb.
- 3-1/2 Inch Leaf Size: The 3-1/2 inch hinge size is the standard dimension for residential interior and exterior doors, making the T2895 a direct, drop-in replacement for most existing residential hinge preps.
- McKinney Quality: McKinney is a recognized name in door hardware manufacturing, delivering consistent dimensional accuracy and reliable mechanical performance across its hinge product lines.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Model / Part Number | T2895 |
| Part Type | Swing Clear Hinge |
| Hinge Size | 3-1/2 Inch |
| Corner Style | 1/4 Inch Round Corner |
| Weight Class | Residential |
| Function | Swings door clear of the opening to recover full clear opening width |
Documentation
- McKinney Catalog / Product Page - T2895
- No manufacturer cut sheet is published for this model in the McKinney document library; the catalog page above carries the spec.
| General - US Finishes | US15 - Satin Nickel or US4 - Satin Brass or US10BE - Oil Rub Bronze Equal |
| Brand | McKinney |
| Hinge Type | Swing Clear |
| Hinge Mounting | Full Mortise |
| Door Handing | Field Reversible |
| Hinge Height | 3.5" Hi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Corners | 1/4" Radius |
| Base Material | Steel |
| Part Type | Hinge |
