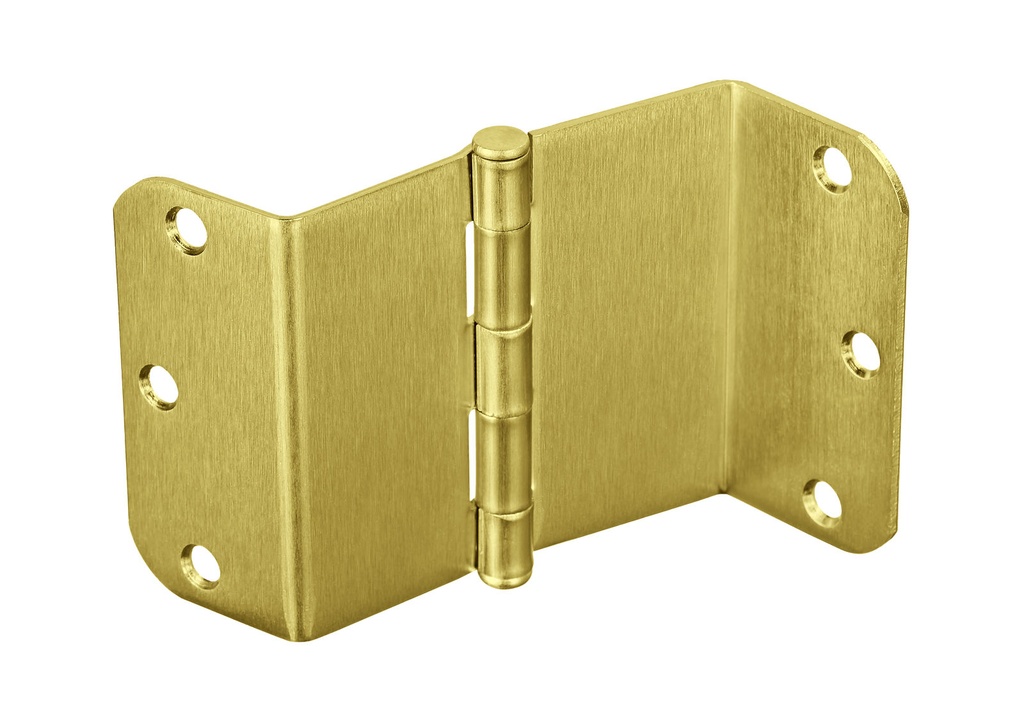

McKinney T2895 Residential Swing Clear Hinge — 4 Inch, 1/4 Inch Round Corner
The McKinney T2895 is a residential-weight swing clear hinge designed for 4-inch applications with 1/4 inch round corners. Also referenced as a swing-clear butt hinge, this hardware solution is engineered to swing the door completely clear of the opening when fully open — effectively recovering the full clear-width of the doorway. This makes the T2895 an ideal choice for accessibility upgrades, ADA-conscious renovations, and any residential or light commercial opening where maximizing usable passage width is a priority.
Institutional Grade Features & Benefits
- Recovers Full Clear Width: The swing clear geometry allows the door to fold back past the face of the jamb, providing the maximum unobstructed passage width — a key advantage in hallways, bedrooms, and retrofit accessibility projects.
- Residential-Weight Construction: Sized and rated for residential and light commercial door weights, delivering reliable, long-term performance appropriate for interior and exterior residential openings.
- 1/4 Inch Round Corner Profile: The 1/4 inch round corner mortise matches standard residential door prep, simplifying installation and ensuring a clean, finished appearance with minimal modification to the door or frame.
- 4-Inch Leaf Size: The 4-inch hinge format is a widely used residential standard, compatible with common door thicknesses and standard residential hinge preps.
- McKinney Quality: McKinney is a recognized name in architectural door hardware, delivering consistent quality and dimensional accuracy across its hinge product lines.
- Drop-In Replacement Potential: The T2895 is well-suited as a swing clear upgrade or replacement for standard butt hinges where additional clear opening width is needed without structural door or frame modification.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Model / Part Number | T2895 |
| Part Type | Swing Clear Hinge |
| Hinge Size | 4 Inch |
| Corner Radius | 1/4 Inch Round Corner |
| Application Weight Class | Residential Weight |
| Function | Swings door clear of the opening to recover clear width |
| Suitable Applications | Residential and light commercial openings |
Documentation
- McKinney Catalog / Product Page - T2895
- No manufacturer cut sheet is published for this model in the McKinney document library; the catalog page above carries the spec.
| General - US Finishes | US15 - Satin Nickel or US4 - Satin Brass or US10BE - Oil Rub Bronze Equal |
| Brand | McKinney |
| Hinge Type | Swing Clear |
| Hinge Mounting | Full Mortise |
| Door Handing | Field Reversible |
| Hinge Height | 4.0" Hi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Corners | 1/4" Radius |
| Base Material | Steel |
| Part Type | Hinge |
