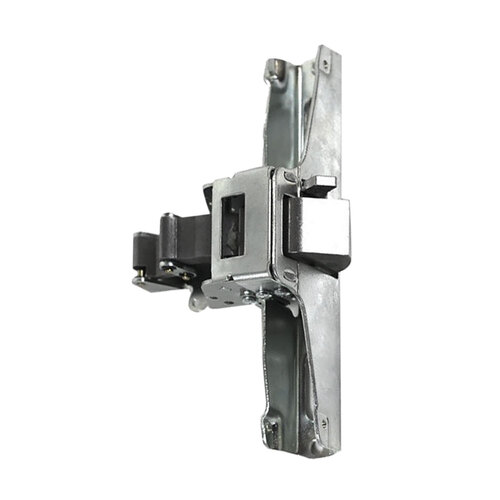

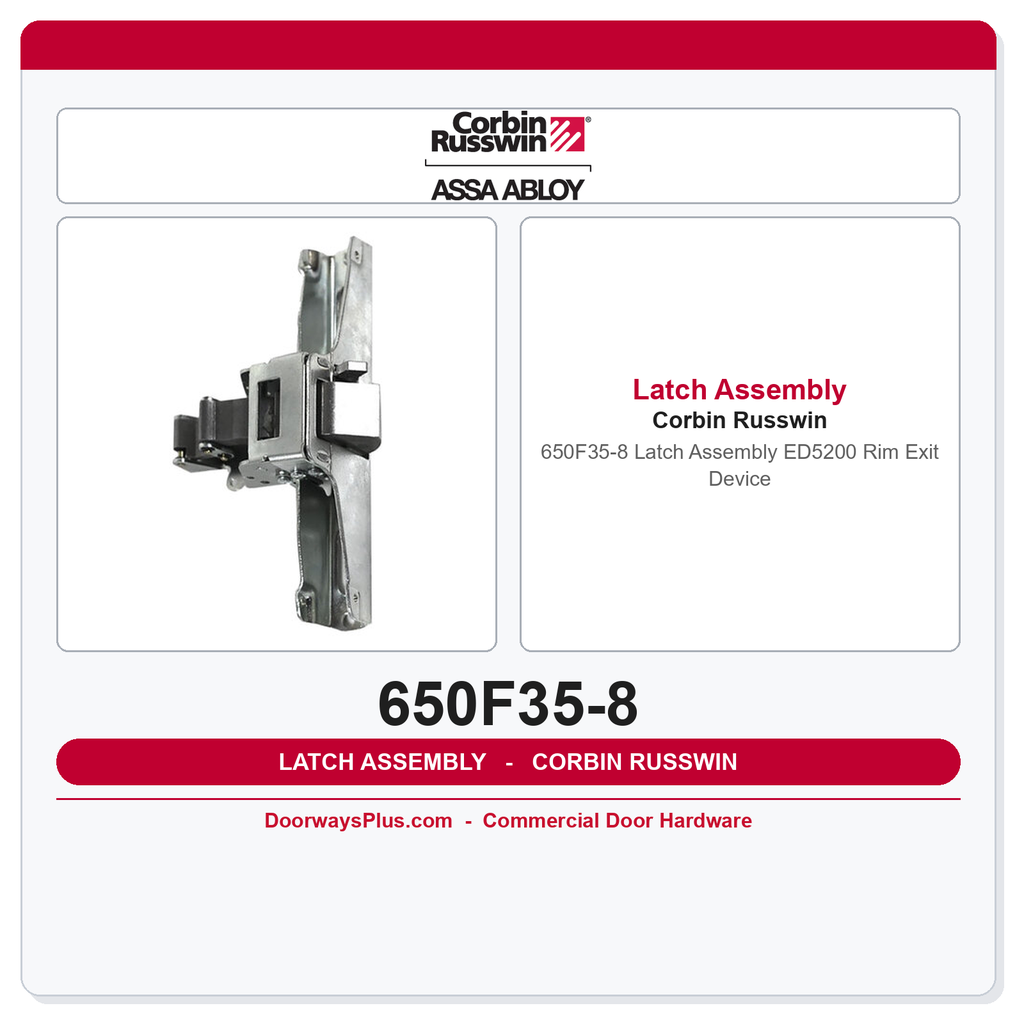

Corbin Russwin 650F35-8 Latch Assembly - For ED5200 Series
Institutional Grade Features
- ED5200 Series Precision: The factory-standard replacement chassis for the ED5200 Rim Exit Device, ensuring perfect mechanical synchronization between the pushpad and the strike.
- Parts List Accuracy: Identified as Item #1 in the official ED5200 technical parts manual and exploded view diagrams.
- Non-Fire Rated Optimization: Built specifically for Panic-Rated (Non-Fire) applications, featuring the internal architecture required to support manual hex-key dogging for "passage mode" functionality.
- Field Reversible Handing: Designed for maximum versatility, the assembly can be field-configured for both Right Hand Reverse (RHR) and Left Hand Reverse (LHR) door swings.
- High-Strength Latchbolt: Features a 3/4" throw stainless steel pullman-type latchbolt with a deadlocking feature to resist forced entry and tampering.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 650F35-8 (also referenced as G650F35-8)
- Compatible Series: ED5200 Rim Exit Devices
- Part Type: Active Head / Latch Assembly / Chassis
- Application: Non-Fire Rated (Panic Hardware)
- Handing: Non-handed (Field Reversible)
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED5200 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Non-Rated |
