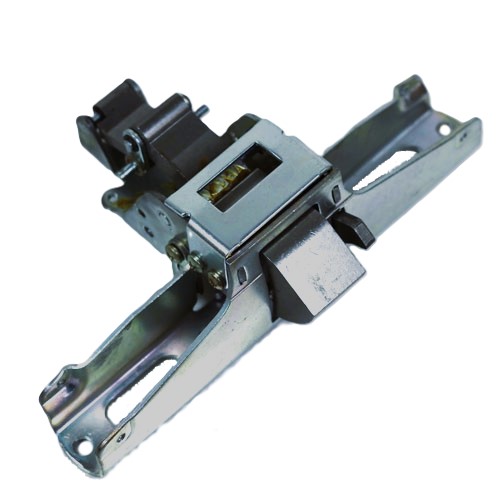

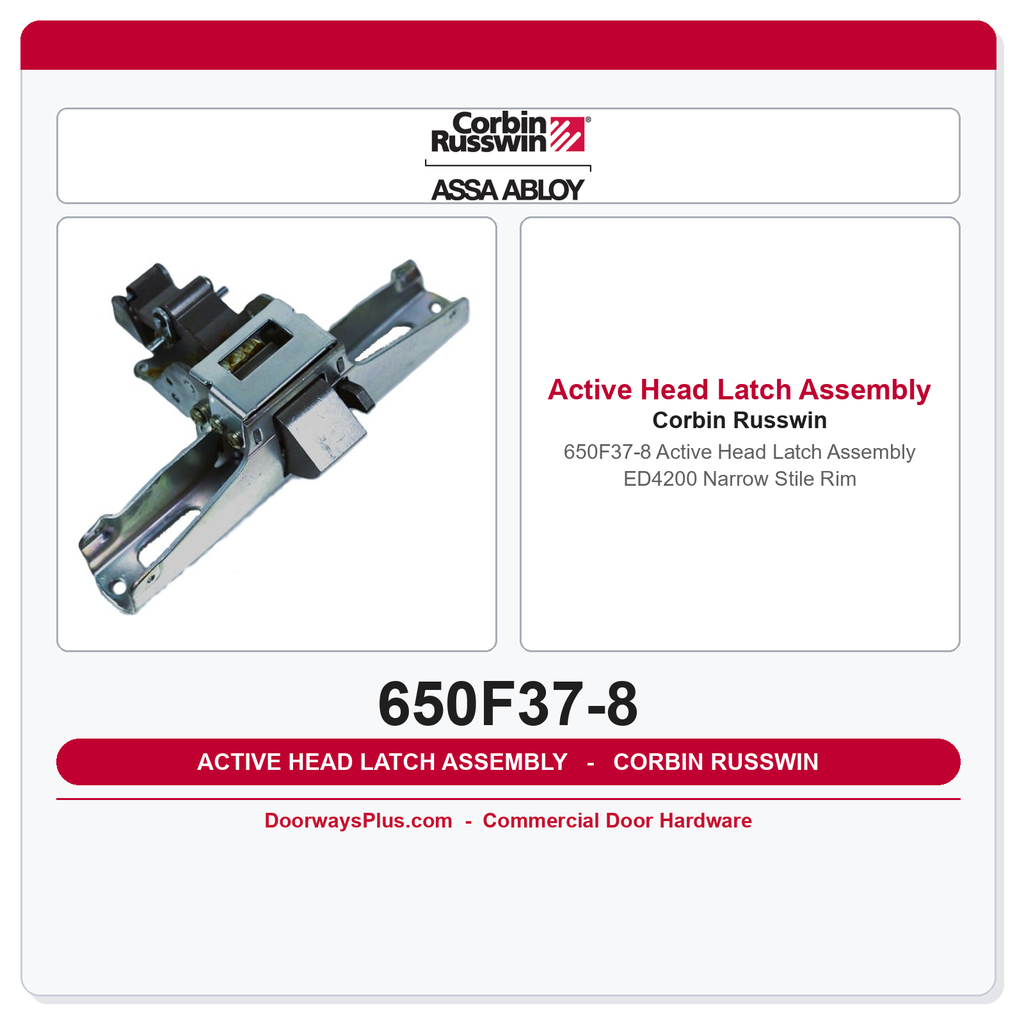

Corbin Russwin 650F37-8 Active Head Latch Assembly - For ED4200 Series
Institutional Grade Features
- ED4200 Series Precision: The factory-standard replacement chassis for Corbin Russwin ED4200 narrow stile rim devices, ensuring perfect synchronization with the pushpad and exterior trim.
- Parts List Accuracy: Identified as Item #1 (the Active Head) in the official ED4200 series technical parts manual and exploded view diagrams.
- Non-Fire Rated Optimization: Purpose-built for Panic-Rated (Non-Fire) applications, featuring the necessary internal components to support manual hex-key dogging for "push-pull" operation.
- Field Reversible Handing: Designed to be field reversible, allowing for seamless installation on both Right Hand Reverse (RHR) and Left Hand Reverse (LHR) door configurations.
- Narrow Stile Architecture: Engineered to fit the slim profiles of aluminum and glass storefront doors while providing the heavy-duty security of a full-size rim device.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 650F37-8 (also referenced as 650F378)
- Compatible Series: ED4200 Narrow Stile Rim Exit Devices
- Part Type: Active Head / Latch Assembly / Chassis
- Application: Non-Fire Rated Doors (Panic Hardware)
- Handing: Non-handed (Field Reversible)
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED4200 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Non-Rated |
