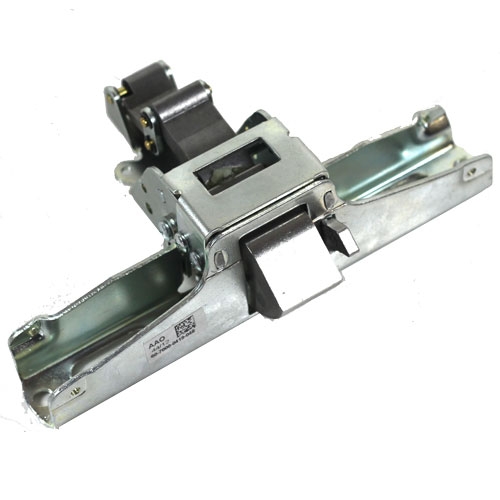

Corbin Russwin 650F36-8 Latch Assembly - For ED5200A Fire-Rated Series
The Corbin Russwin 650F36-8 is a genuine OEM Active Head Latch Assembly (chassis) specifically engineered for the ED5200A Series Fire-Rated Rim Exit Devices. As the core mechanical component of the device, this assembly houses the heavy-duty latchbolt and timing mechanisms required to maintain life-safety standards on fire-labeled openings. Unlike the standard version, the "A" designated 650F36-8 is built without a manual dogging feature to comply with strict UL fire codes, ensuring the door remains latched and secure during an emergency.
Institutional Grade Features
- ED5200A Series Precision: The factory-authorized replacement chassis for the ED5200A Rim Exit Device, ensuring 100% compatibility with existing pushpads and fire-rated strikes.
- UL Fire-Rated Compliance: Specifically designed for fire-labeled doors; this assembly does not allow for mechanical dogging, maintaining the self-latching requirement of NFPA 80.
- Parts List Accuracy: Identified as Item #1 in the official ED5200A technical parts manual and exploded view diagrams.
- Field Reversible Handing: Engineered for universal application, this assembly can be field-configured for both Right Hand Reverse (RHR) and Left Hand Reverse (LHR) door configurations.
- Deadlocking Pullman Latch: Features a 3/4" throw stainless steel latchbolt with a deadlocking security feature to prevent "loiding" or unauthorized retraction from the outside.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 650F36-8 (also referenced as G650F36-8)
- Compatible Series: ED5200A (Fire-Rated) Rim Exit Devices
- Part Type: Active Head / Latch Assembly / Chassis
- Application: UL Fire-Rated Doors
- Handing: Non-handed (Field Reversible)
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED5200 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Fire Rated |
