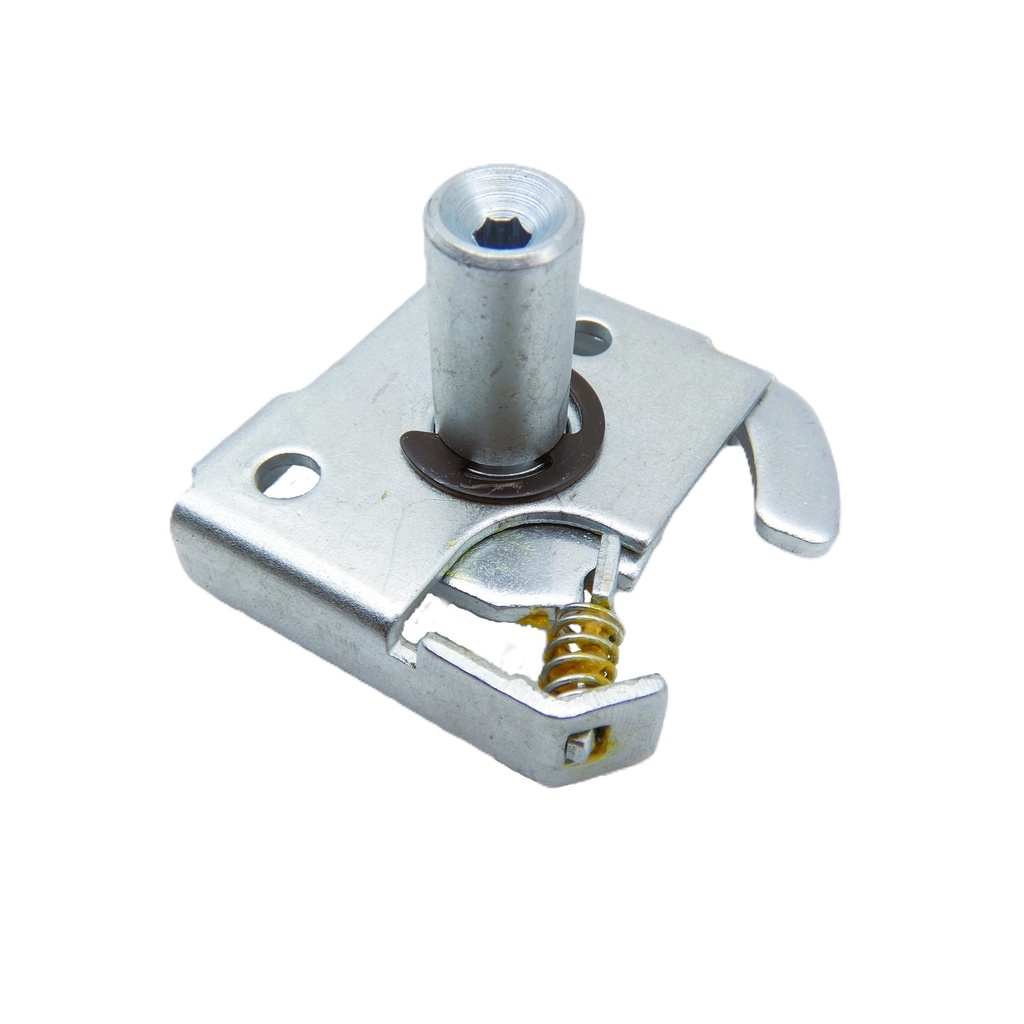

Corbin Russwin 650F52-8 Hex Dogging Assembly - For ED5200 Series

The Corbin Russwin 650F52-8 is a genuine OEM Hex Dogging Assembly designed specifically for the ED5200 Series push-pad exit devices. This internal module is the mechanical heart of the dogging function, allowing authorized personnel to use a standard dogging key [link] to lock the push-bar in the retracted position. By holding the bar down, the 650F52-8 enables "push-pull" operation during business hours, significantly reducing mechanical wear on the latchbolt and providing convenient access for high-traffic entrances.

Institutional Grade Features

• ED5200 Series Precision: The factory-authorized replacement dogging module for Corbin Russwin ED5200 Rim, Mortise, and Vertical Rod devices.
• Parts List Accuracy: Identified as Item #14 in the official ED5200 Standard Bar technical parts manual and exploded view diagrams.
• Non-Fire Rated Optimization: Purpose-built for Panic-Rated (Non-Fire) hardware where manual dogging is required for facility convenience.
• Hardened Steel Components: Manufactured to withstand the daily torque of hex-key operation in demanding environments like schools, retail centers, and office complexes.
• Direct OEM Replacement: Restores the smooth "click-and-lock" feel of a new exit device, ensuring the push-bar remains securely retracted when dogged.

Technical Specifications

• Manufacturer: Corbin Russwin (ASSA ABLOY)
• Model Number: 650F52-8
• Compatible Series: ED5200 Series (Non-Fire Rated)

• Reference: Item #14 in Standard Bar Parts List
• Function: Hex Key Manual Dogging

​
