Sargent 68-3523 Top Case / Bracket Assembly — 1¾″ Door with ¼″ Cladding, 80 Series Exit Device

The Sargent 68-3523 is a genuine OEM Top Case and Bracket Assembly engineered specifically for 1¾-inch doors with ¼-inch cladding. Also referred to as the WD CVR Top Case/Bracket Assembly, this factory-original component is designed for use with the Sargent 80 Series exit device line — one of the most widely specified rim and mortise exit device families in commercial and institutional door hardware. When the top case or its mounting bracket becomes damaged, worn, or lost, replacing it with this certified OEM assembly ensures a precise, rattle-free fit without the guesswork of aftermarket alternatives.

Institutional-Grade Features & Benefits

• Genuine Sargent OEM Part: Manufactured to exact factory tolerances, this assembly maintains the structural and aesthetic integrity of your installed 80 Series exit device — critical for high-traffic commercial openings where reliability cannot be compromised.
• Engineered for 1¾″ Door Thickness with ¼″ Cladding: Dimensioned specifically to accommodate cladded or veneered door construction common in wood-and-metal composite doors found in schools, hospitals, government buildings, and commercial offices.
• Drop-In Replacement Fit: Designed as a direct OEM replacement, the 68-3523 eliminates complex field modifications — restoring your exit device to full factory specification quickly and efficiently.
• Broad 80 Series Compatibility: A single part number serves multiple 80 Series models, reducing inventory complexity for facility managers, locksmiths, and door hardware distributors.
• Preserves Device Performance: Proper top-case housing and bracket support are essential for consistent touchbar operation and chassis alignment; using the correct OEM assembly protects the entire exit device investment.
• Ideal for MRO and Service Applications: Whether for a scheduled maintenance program or an emergency repair, this assembly ships as a complete unit — top case and bracket together — minimizing downtime on the opening.

Compatible Sargent 80 Series Exit Device Models

The Sargent 68-3523 is compatible with the following Sargent 80 Series exit device models (full designations): 8606, 8610, 8613, 8615, 8640, 8643, 8646, 8673, 8674.

Technical Details

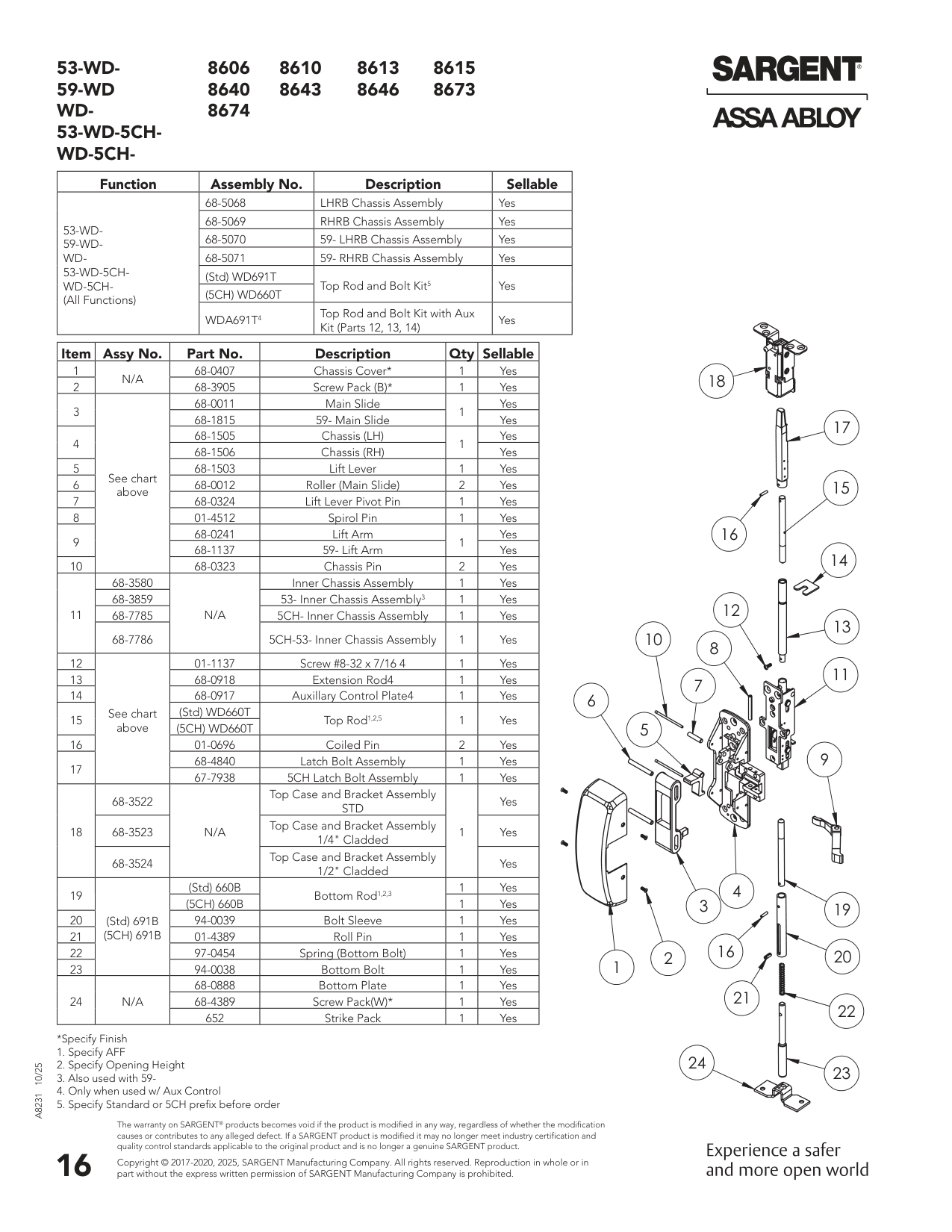

Parts List Illustration
