Sargent 68-3524 WD CVR Top Case/Bracket Assembly — 1-3/4" Door, 1/2" Cladding | Sargent 80 Series Exit Device Replacement Part
The Sargent 68-3524 is a genuine OEM Top Case/Bracket Assembly (also referenced as a WD CVR Top Case/Bracket Assembly) designed specifically for 1-3/4" doors with 1/2" cladding. This replacement assembly is engineered to factory specifications for the Sargent 80 Series exit device line, ensuring a precise, reliable fit without field modification. If your 80 Series exit device top case or bracket has worn, cracked, or been damaged, the 68-3524 restores the device to its original structural integrity and operational condition using a direct OEM component — not an aftermarket substitute.
Institutional-Grade Features & Benefits
- Genuine Sargent OEM Part: Manufactured to the same tolerances and materials as the original factory assembly, ensuring consistent performance and long service life in demanding commercial and institutional environments.
- Exact-Fit for 1-3/4" Door with 1/2" Cladding: Dimensioned specifically for this door preparation, eliminating guesswork and reducing installation time for locksmiths, facility maintenance teams, and door hardware professionals.
- Preserves 80 Series Device Integrity: Restoring the top case and bracket assembly maintains the structural housing of the exit device, keeping internal components properly aligned and protected.
- Broad 80 Series Model Coverage: A single assembly services multiple 80 Series exit device configurations, making it a practical stocking item for facilities with mixed device functions across one building or campus.
- Cost-Effective Repair vs. Full Device Replacement: Replacing a damaged top case/bracket assembly extends the functional life of an installed exit device, avoiding the higher cost of full device replacement and rekeying.
- Supports Commercial & Institutional Code Compliance: Keeping exit devices in proper working order with OEM parts supports ongoing life-safety and egress code compliance requirements in commercial buildings, schools, hospitals, and government facilities.
Compatible Sargent 80 Series Exit Device Models
The Sargent 68-3524 Top Case/Bracket Assembly is a verified OEM replacement compatible with the following Sargent 80 Series exit device models: 8606, 8610, 8613, 8615, 8640, 8643, 8646, 8673, 8674. Always confirm the full model designation on your installed device before ordering.
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-3524 |
| Part Type | Top Case / Bracket Assembly |
| Product Class | Exit Device Replacement Part |
| Series Compatibility | Sargent 80 Series |
| Compatible Device Models | 8606, 8610, 8613, 8615, 8640, 8643, 8646, 8673, 8674 |
| Door Thickness | 1-3/4" |
| Cladding Thickness | 1/2" |
| OEM / Aftermarket | Genuine Sargent OEM |

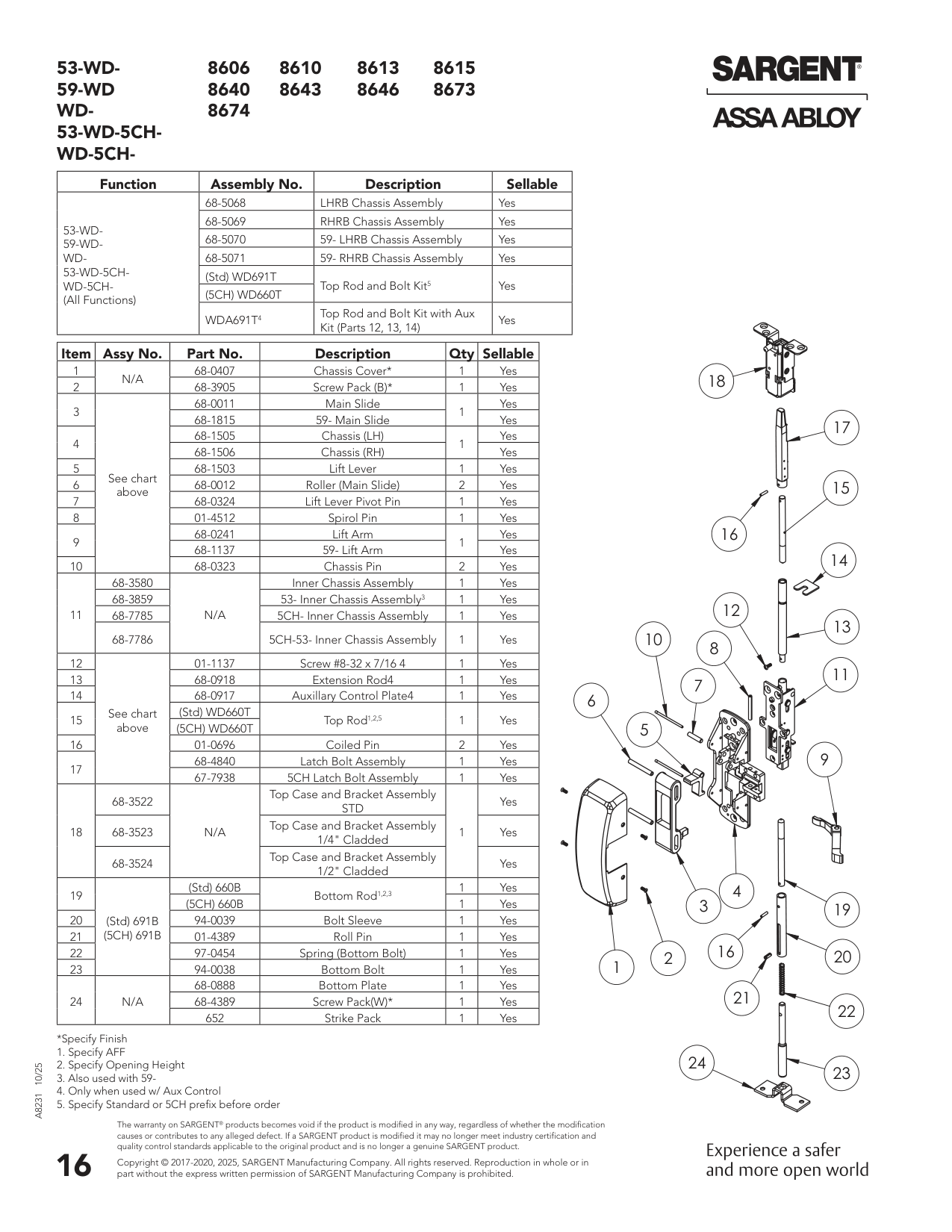

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
