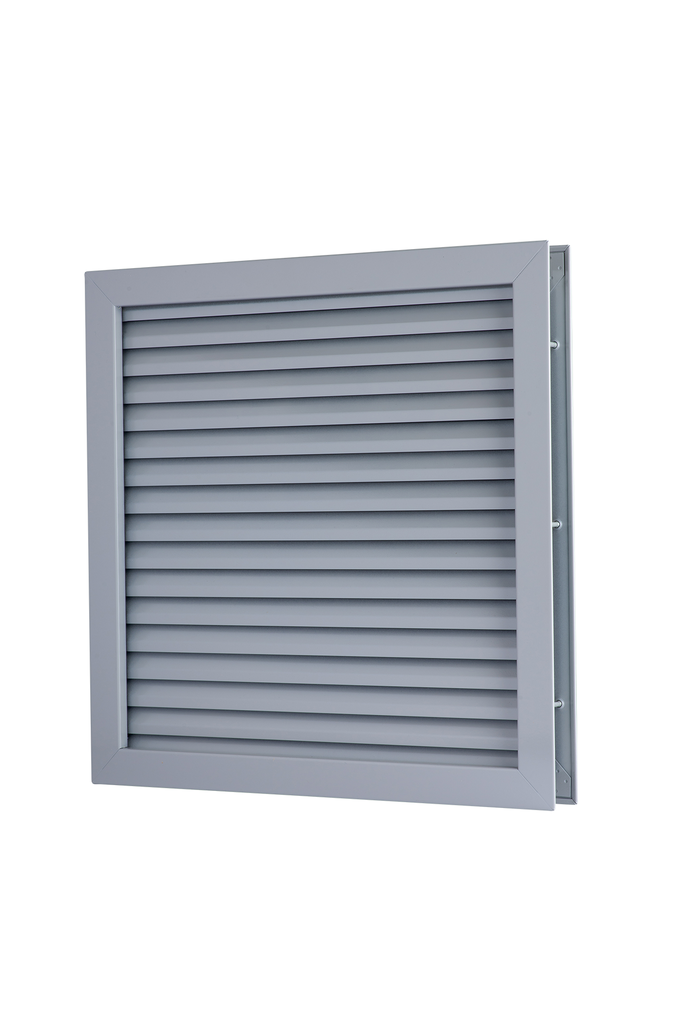

Rockwood LV-IY Steel Door Louver for Wood or Hollow Metal Doors

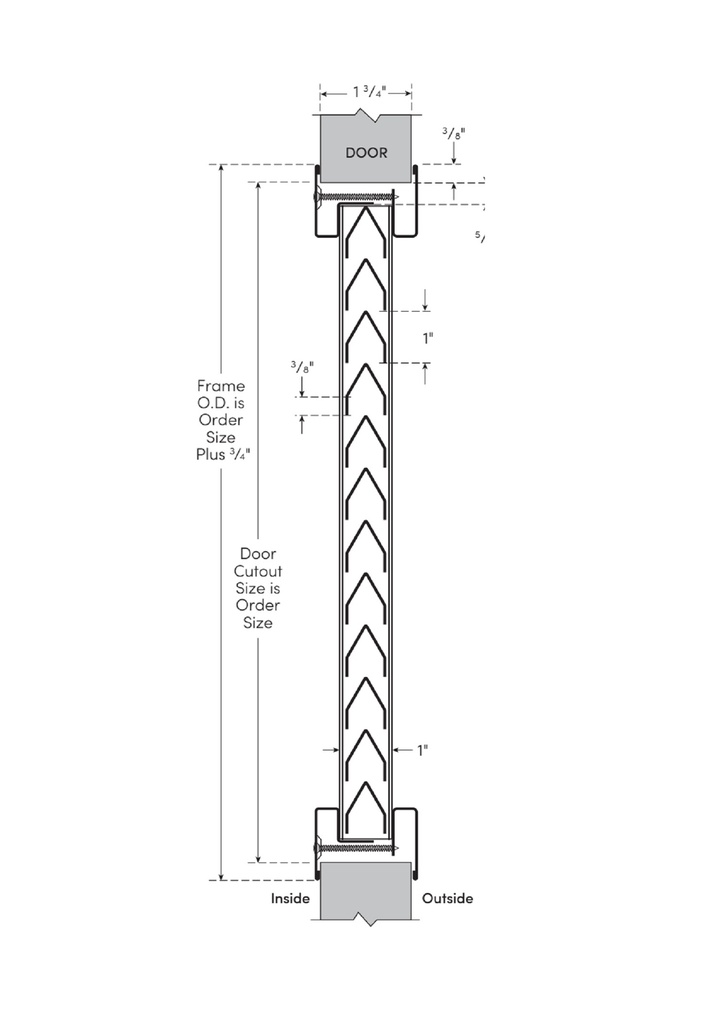

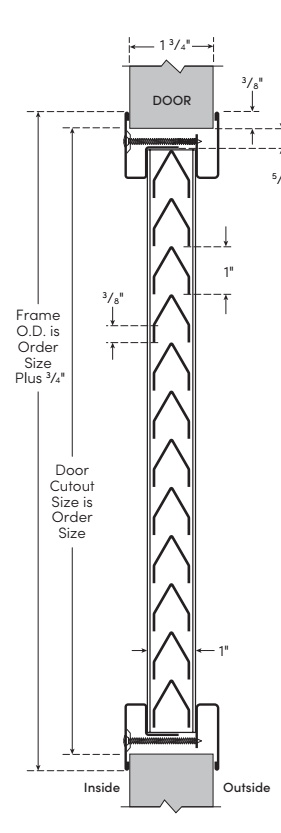

*** Order size is cutout size ***
The LV-IY Inverted Y Louver is for use with 1-3/4" wood or metal doors and provides 50% free air flow. This model features steel blades that add stiffness and a burr-free exposed edge, as well as a steel mitered frame that provides a clean appearance and secures the grille assembly in place.
Product Overview
Features
- For use with 1-3/4" wood or metal doors
- Provides 50% free air flow
Benefits
- 20 gauge inverted “Y” blades add stiffness and burr-free exposed edge
- 18 gauge steel mitered frame secures grille assembly in place, providing clean appearance
- Delivers enhanced privacy, air ventilation
- Design adds distinctive architectural feature to building
Specifications
- Base Material: Galvannealed steel
- Door Type: Wood, Metal
| Louver Size | 12" wi x 12" hi or 18" wi x 12" hi or 24" wi x 12" hi or 18" wi x 18" hi or 24" wi x 24" hi |
| Finishes Lites and Louvers | GPZ - Gray Primer or BPR - Beige Primer or DKB - Dark Bronze |
| Brand | Rockwood |
| Fire Rated | Non-Rated |
| Door Thickness | 1-3/4" Dr Thickness |
