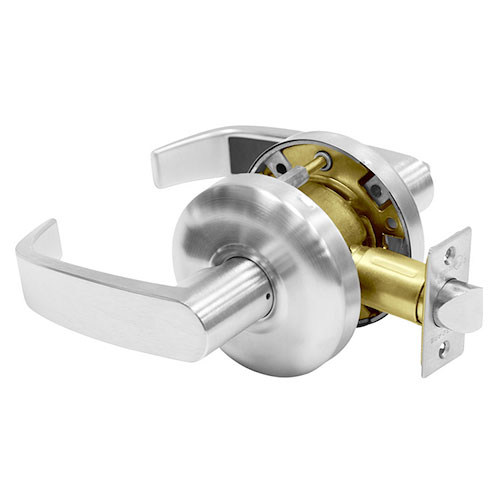

Sargent 28-65U15 KL Passage Function Cylindrical Latchset
Function Information:
Grade 2 Cylindrical Lock | Passage / Closet Function
The Sargent 65U15 (KL) is a professional-grade passage lever designed for doors that require a latch but no locking capability. Ideal for high-traffic hallways, closets, and common areas, the 65 Line is a "standard-duty" workhorse that outperforms its Grade 2 classification. While many Grade 2 locks feel flimsy, the Sargent 65 Line is engineered with a rugged internal chassis certified to meet stringent Florida Building Codes and hurricane impact standards.
Whether you are retrofitting an existing office or outfitting a new commercial facility, the 65U15 provides the perfect balance of architectural aesthetics, ease of installation, and long-term reliability.
Key Features
- Passage Function: Both levers are always unlocked and active.1 It provides a simple, reliable latching mechanism for doors where security is not required.
- Hurricane Rated Strength: Certified to comply with TAS 201/202/203 and Florida Building Code requirements—one of the few Grade 2 levers built to withstand extreme forces.2
- Streamlined Installation: Fits a modified 161 door prep, making it a fast and easy "drop-in" solution for facility maintenance and renovations.3
- Stable Mounting: Features thru-bolt installation, which anchors the lockbody securely through the door to prevent rotation and lever sag over time.
- Non-Handed Design: Levers are field-reversible, allowing for a perfect fit on both left and right-hand door swings.
- Code Compliance: Fully ADA compliant for accessibility and UL-cUL Fire-Rated for up to 3 hours, ensuring your facility stays up to code.4
Technical Specifications
| Feature | Specification |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 2 |
| Backset | 2-3/4" Standard (2-3/8" available) |
| Door Thickness | Fits 1-3/8" to 1-3/4" Standard |
| Latchbolt | 1/2" Throw |
| Strike | ANSI Curved Lip Strike (Standard) |
| Certifications | NFPA 80, ASTM E330, UL Listed |
| Warranty | 1-Year Limited Warranty |
Ideal Applications
The Sargent 65U15 is the preferred choice for commercial hallways, storage closets, laundry rooms, and interior office doors that stay open during business hours. It provides a heavy-duty feel and consistent performance in environments where a locking function is unnecessary but durability is non-negotiable.
| Finish with BHMA code | 626 - US26D Satin Chrome or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 640 - US10B Oil Rubbed Bronze |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Brand | Sargent |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | KL |
| Series | Sargent - 6500 Series |
