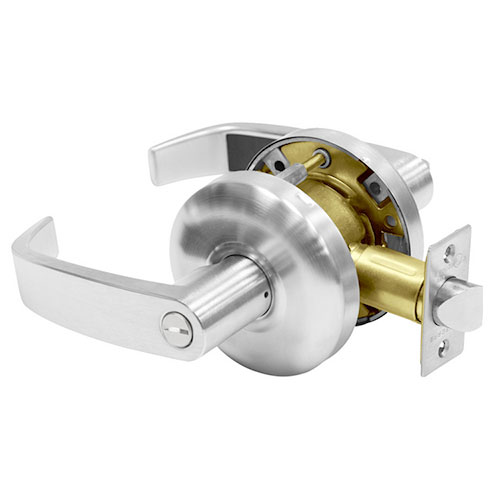

Sargent 28-65U65 KL Privacy Function Cylindrical Latchset
Function Information:
Grade 2 Cylindrical Lock | Standard Privacy Function
The Sargent 65U65 is a professional-grade privacy lockset designed for commercial restrooms, dressing rooms, and private offices. Engineered for "Standard Duty" but built with Sargent’s legendary durability, this lever provides a secure environment for occupants while maintaining essential safety overrides.
The 65 Line is unique among Grade 2 locks because of its heavy-duty chassis—it is certified to meet stringent Florida Building Codes for hurricane resistance and is UL-cUL Fire-Rated for 3 hours. This makes it an ideal choice for facilities that require an economical solution without compromising on Life Safety or ADA compliance.
Key Features
- Privacy Function: Locked by a thumbturn on the inside. In the event of an emergency, the outside lever can be unlocked using a simple emergency key or flat tool via the exterior release hole.
- Hurricane Rated Strength: Certified to comply with TAS 201/202/203 and Florida Building Code requirements, offering superior protection against high-impact forces.
- Easy Installation: Fits a modified 161 door prep, making it a perfect drop-in replacement for existing hardware during renovations.
- Secure Mounting: Utilizes thru-bolt installation to ensure the lock stays centered and prevents sagging or rotation, even in high-traffic use.
- Universal Handing: Field-reversible levers allow for installation on both left and right-hand door swings without special tools.
Technical Specifications
| Feature | Specification |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 2 |
| Backset | 2-3/4" Standard (2-3/8" also available) |
| Door Thickness | Fits 1-3/8" to 1-3/4" standard |
| Fire Rating | UL-cUL Listed up to 3 Hours |
| Compliance | ADA Compliant; NFPA 80; ANSI/SDI 250.13 |
| Warranty | 1-Year Limited Warranty |
Ideal Applications
The Sargent 65U65 is the "go-to" lever for multi-stall restroom entrances, private medical consultation rooms, and corporate lactation rooms. It provides a clean, architectural look while meeting the rigorous demands of modern commercial building codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 640 - US10B Oil Rubbed Bronze |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Brand | Sargent |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | KL |
| Series | Sargent - 6500 Series |
| Occupancy Indicator | No |
