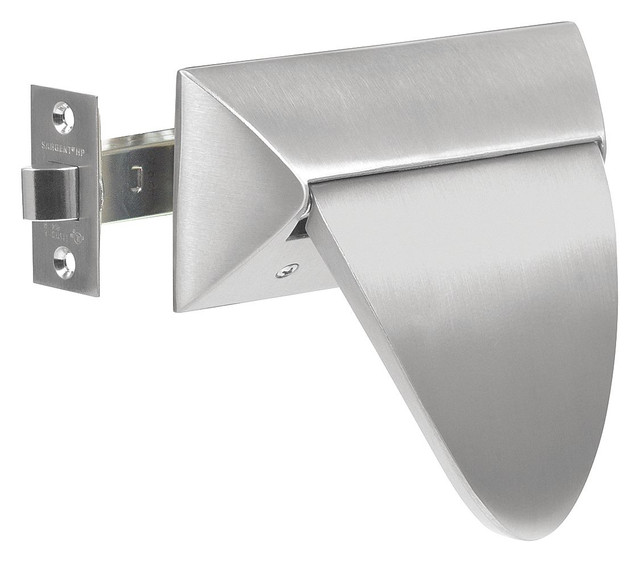

Sargent 28-HPU15 ALP US32D | HP Series Push/Pull Passage Latchset

The Sargent 28-HPU15 ALP US32D is a premium, Grade 1 bored lockset engineered specifically for the demanding environments of healthcare, education, and commercial facilities. Featuring the ALP Push/Pull trim, this latchset provides a sleek, architectural alternative to traditional lever handles. The intuitive paddle-shaped design allows for hands-free operation—users can simply push or pull with a forearm or elbow—making it an essential component for hygiene-conscious and high-traffic areas like patient rooms and closets.

Constructed from cast stainless steel, this Passage (15) function latchset is both durable and ligature-resistant, aligning with modern evidence-based design for patient safety. The US32D Satin Stainless Steel finish is not only aesthetically modern but also highly resistant to the rigorous cleaning protocols found in medical centers and laboratories.

Advanced Architectural & Safety Performance

• Hands-Free Operation: The broad paddle shape creates a large, comfortable target for door activation without using hands, supporting Safer2Open™ low-touch environments.
• Versatile Field Mounting: The paddle trim is unique in its flexibility, allowing for horizontal (up/down) or vertical (sideways) orientations to be determined during installation.
• Superior Durability: Certified to ANSI/BHMA Grade 1 standards, this heavy-duty hardware is built to withstand millions of cycles in abusive or high-frequency environments.
• Fire Safety Compliance: This model is UL/cUL Listed for use on fire-rated doors (up to 3 hours), ensuring full compliance with stringent building safety codes.
• Ease of Installation: The 28- option signifies the inclusion of the #808 ANSI Curved Lip Strike (4-7/8"), and the lock body is easily field-reversible for non-handed application.

Technical Specifications

Installation & Architectural Compatibility

The Sargent 28-HPU15 ALP US32D is designed to be thru-bolted through the door for maximum stability and long-term mechanical alignment. While it is perfect for new construction in healthcare facilities, it is also frequently used for retrofitting existing hospital latches to improve aesthetics and ease of use.

• Optional MicroShield®: Available with an optional antimicrobial silver-based finish (SG option) that permanently suppresses the growth of bacteria and mold.
• Lead Lining: For radiology or specialized medical rooms, lead-lined covers (74- option) can be specified.
• Security Fasteners: For high-security or behavioral health wards, Torx® or Spanner screws are available to prevent unauthorized tampering.
