Sargent 42 Mortise Cylinder x LA Keyway

Price:

$ 112.50
  2. Shop
  3. Cylinders
  4. Sargent 42 Mortise Cylinder x LA Keyway
Sargent 41 Mortise Cylinder x LA Keyway
Sargent 41 Mortise Cylinder x LA Keyway
$ 112.50
$ 112.50
Sargent 351 Closer x UO - Universal arm
Sargent 351 Closer x UO - Universal arm
$ 518.77
$ 518.77

Sargent 42 Mortise Cylinder x LA Keyway

https://doorwaysplus.com/web/image/product.template/834/image_1920?unique=27a4046

Sargent 42 Mortise Cylinder x LA Keyway

$ 112.50 112.5 USD $ 112.50

$ 112.50

Not Available For Sale

  • General - US Finishes
  • Brand
  • Sargent Mortise Cams
  • Cylinder Length
  • Cylinder Options
  • Key Length
  • Key Length

This combination does not exist.

Contact Us
Share :

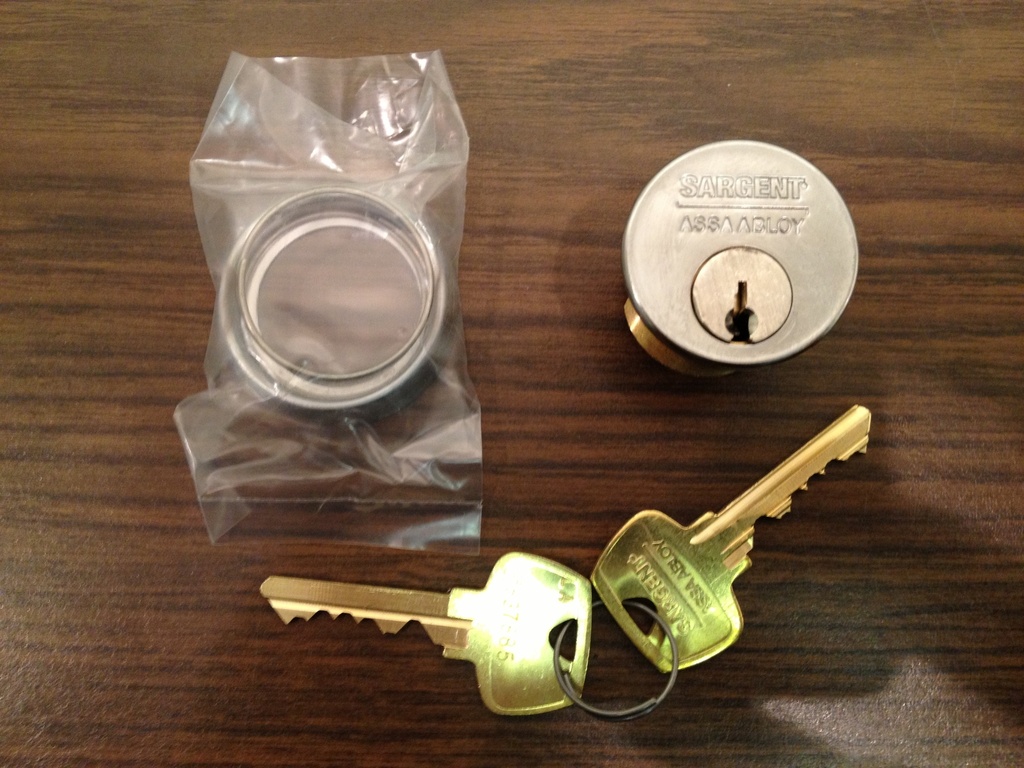

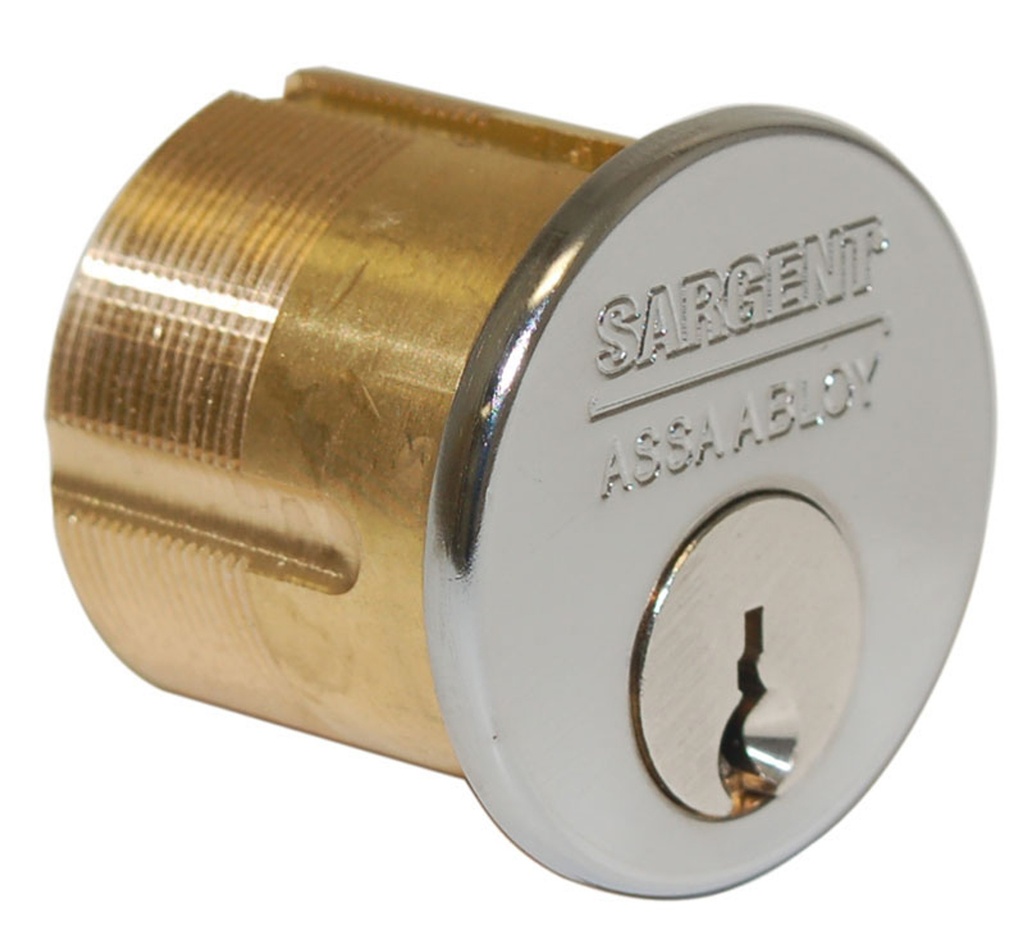

Sargent 42 Mortise Cylinder, 1 1/4" length x LA Keyway

6 pin
Solid Brass Cylinder, Conventional keyed
1-5/32" diameter
Furnished standard with No 97 (1/4" Trim Ring) rosette and compression spring
Standard Sargent offset cam 13-0664
Cylinders are keyed differently with 2 keys each
Cylinders are stocked in US26D
Other finishes available by quote include US3, US9, US10, US10B,  US10BL, US15, US20D, US26, US32, & US32D

Need a different Sargent keyway? Change the LA keyway to another keyway. Please request a quote

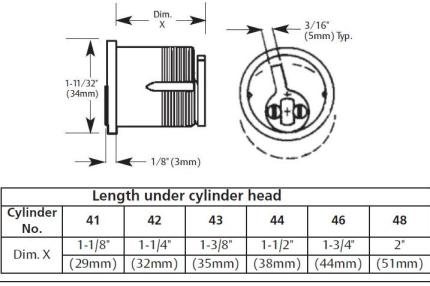

Sargent Mortise Cylinder dimensions



General - US Finishes US26D - Satin Chrome or US4 - Satin Brass
Brand Sargent
Sargent Mortise Cams Standard
Cylinder Length 1-1/4"
Cylinder Options LA Keyway
Key Length 5 Pin, 6 Pin
Sargent Conventional Cylinder Catalog
Download
