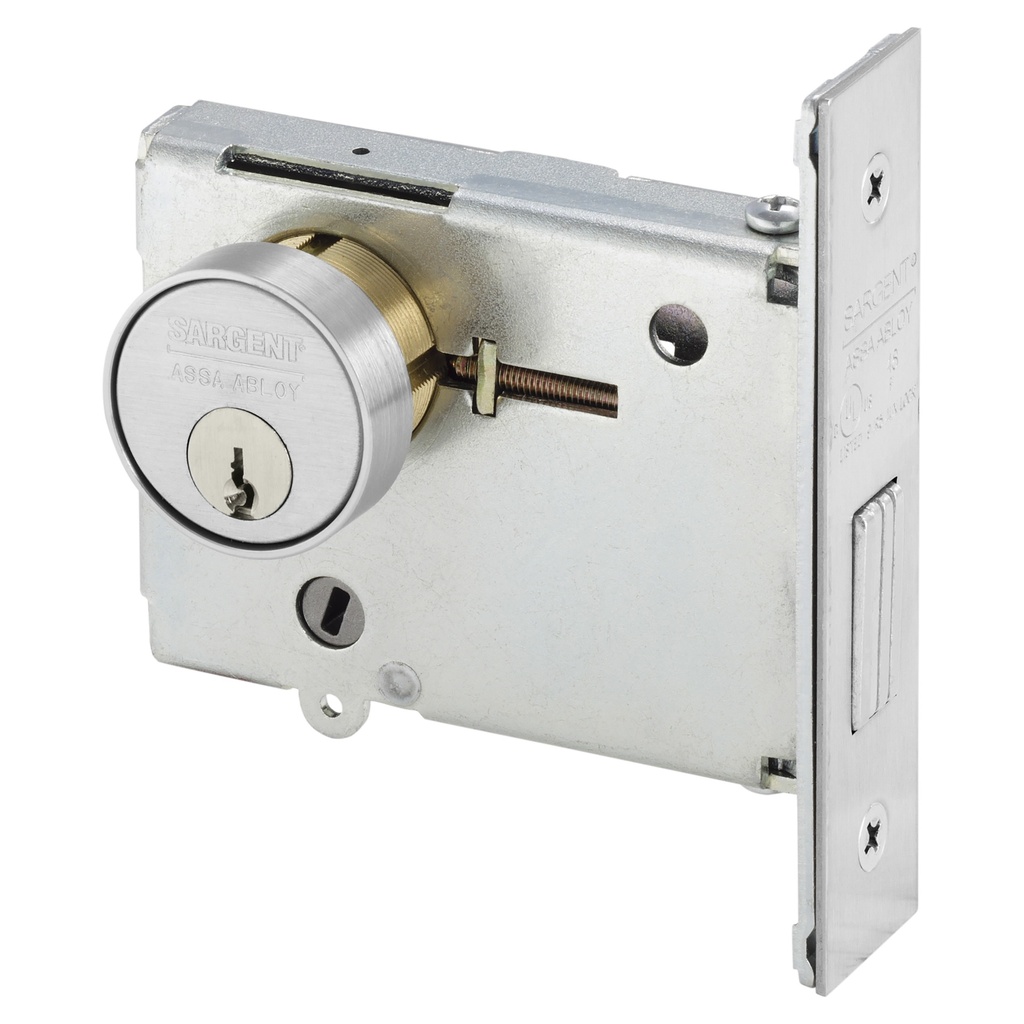

Sargent 4875 Single Cylinder Mortise Deadlock - LA Keyway
The 4870 Series is a mortise lock deadbolt with high-quality construction to provide maximum security, performance, and durability. Ideally suited for high-traffic facilities like schools and hospitals, this lock features a laminated stacked steel deadbolt and high-quality construction to provide maximum security, performance and durability.
Function Info:
The 4870 Series Deadlock has several reference centerlines - use caution and be exact when specifying the location above finish floor - All three of these referenced dimensions are a different location:
- Centerline of Cylinder
- Centerline of Strike
- Centerline of Lock Body (or Lock Front)
Features:
- Laminated stacked steel deadbolt
- Multiple functions and finishes offered
- ADA Thumbturn standard
- Non-handed
Specifications
- Backset Depth (Standard): 2 3/4"
- Deadbolt Type: Mortise
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Latchbolt Throw: 1"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/4"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/4"
- Number of Keys: 2
- Strike Type: Flat
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 1-year limited warranty
Certification Compliance
UL-cUL Listed Listed for use on fire doors
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LA Keyway or LC - Less Cylinder |
| Brand | Sargent |
| Deadbolt Function | Single Cylinder w/Thumbturn |
| Deadlock Grade | Grade 1 - Hv Dty |
| Cylinder Options | Single Cylinder |
| Series | Sargent - 4870 Series |
Auxiliary Locks - 2024.pdf
Download
SARGENT 4870 Series Mortise Deadbolts Lock Only Template.pdf
Download
Sargent 130_184 Thumbturn Installation Instructions.pdf
Download
Sargent 4870 Strike Template 4236D.pdf
Download
Sargent 4870, 4874, 4875, 4876, 4877, 4878, 4879 Installation Instructions.pdf
Download
